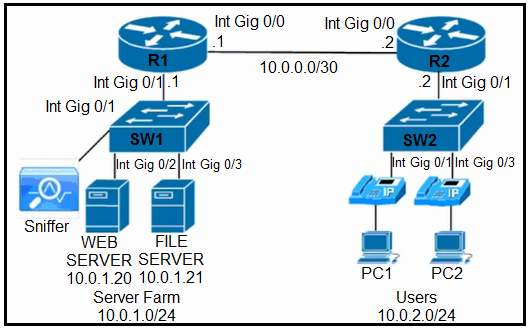

Refer to the exhibit. A network engineer is troubleshooting an issue with the file server based on reports of slow file transmissions. Which two commands or command sets are required to switch SW1 to analyze the traffic from the file server with a packet analyzer? (Choose two.)

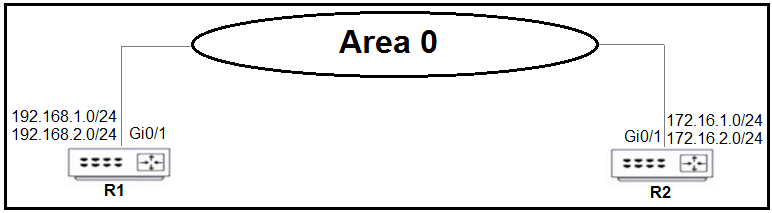

Refer to the exhibit. Which two configurations enable R1 and R2 to advertise routes into OSPF? (Choose two.)
AR2 -router ospf 0network 172.16.1.0 0.0.0.255 area 0network 172.16.2.0 0.0.0.255 area 0
BR1 -router ospf 0network 192.168.1.0 255.255.255.0 area 0network 192.168.2.0 255.255.255.0 area 0
CR2 -router ospf 0network 172.16.1.0 255.255.255.0 area 0network 172.16.2.0 255.255.255.0 area 0
DR1 -router ospf 0network 192.168.1.0 0.0.0.255 area 0network 192.168.2.0 0.0.0.255 area 0
ER2 -router ospf 0network 172.16.1.0 0.0.0.255 area 0network 172.16.2.0 255.255.255.0 area 0
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.
Topology
Tasks
Configure logging on SW01 and NetFlow on R01 to achieve these goals:

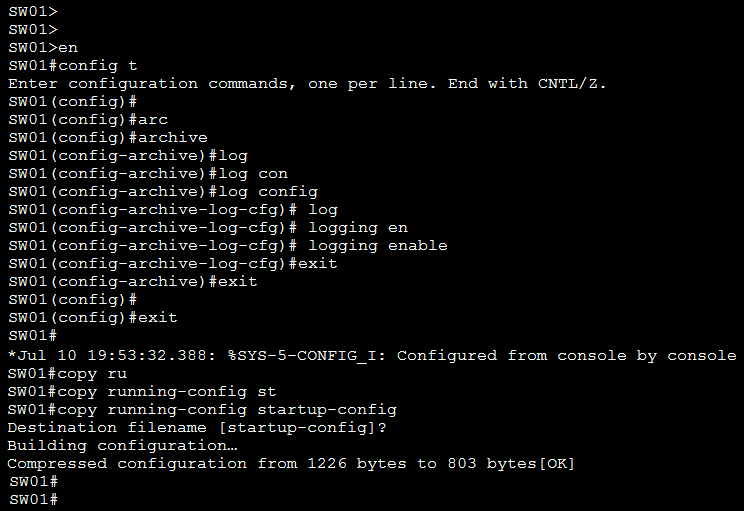

Enable archive logging on SW01 to track each time a change is made to the configuration and the user who made the change.

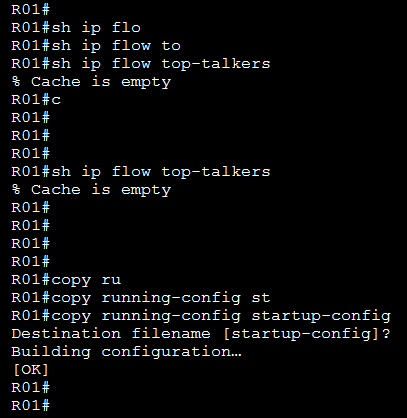

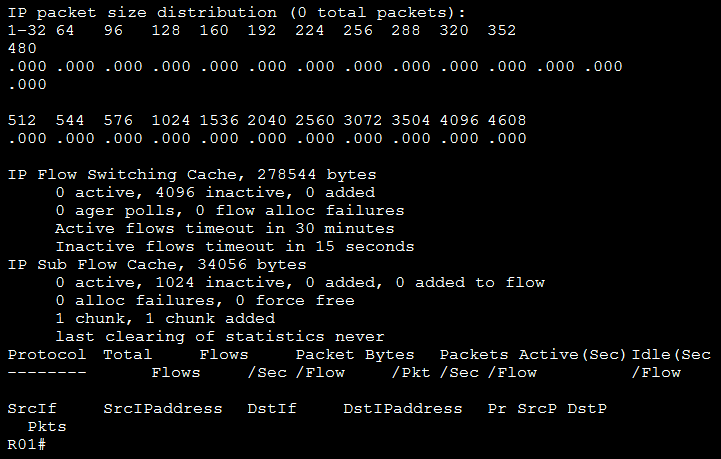

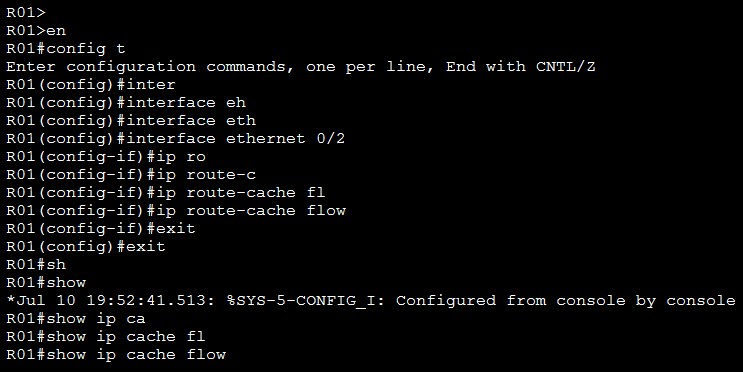

The NetFlow Top Talkers feature has been preconfigured on R01. Enable the feature for all inbound traffic on interface E0/2 of R01.
R01
SW01
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.
Topology
Tasks

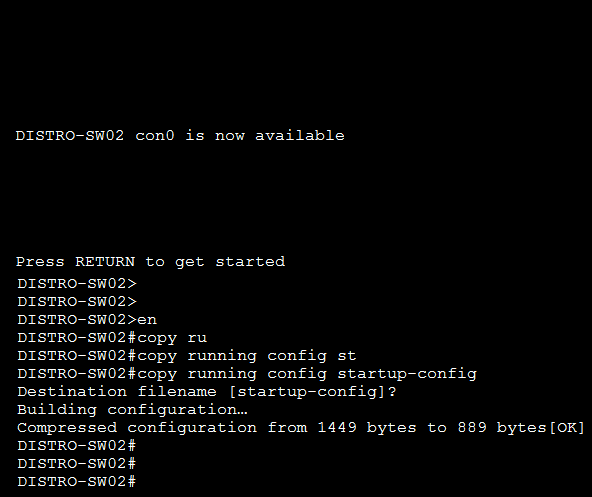

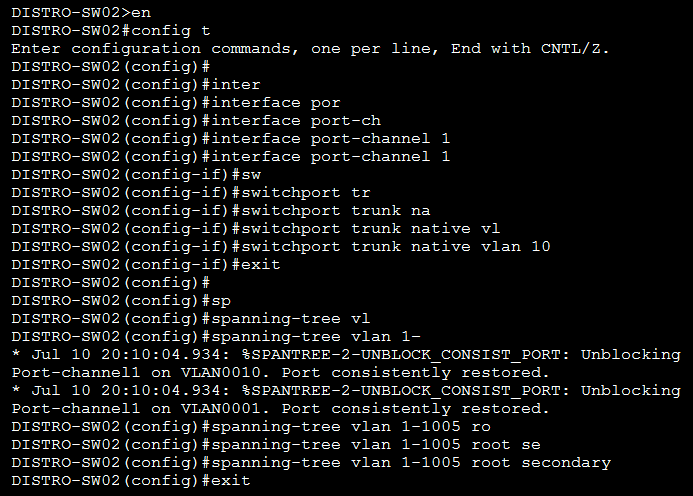

The operations team started configuring network devices for a new site.
Complete the configurations to achieve these goals:

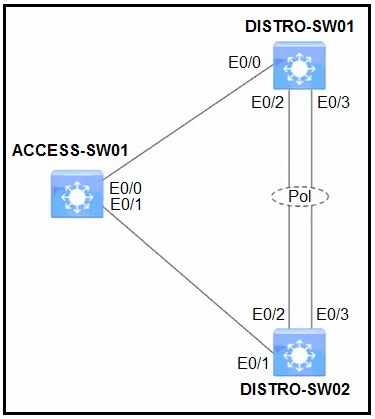

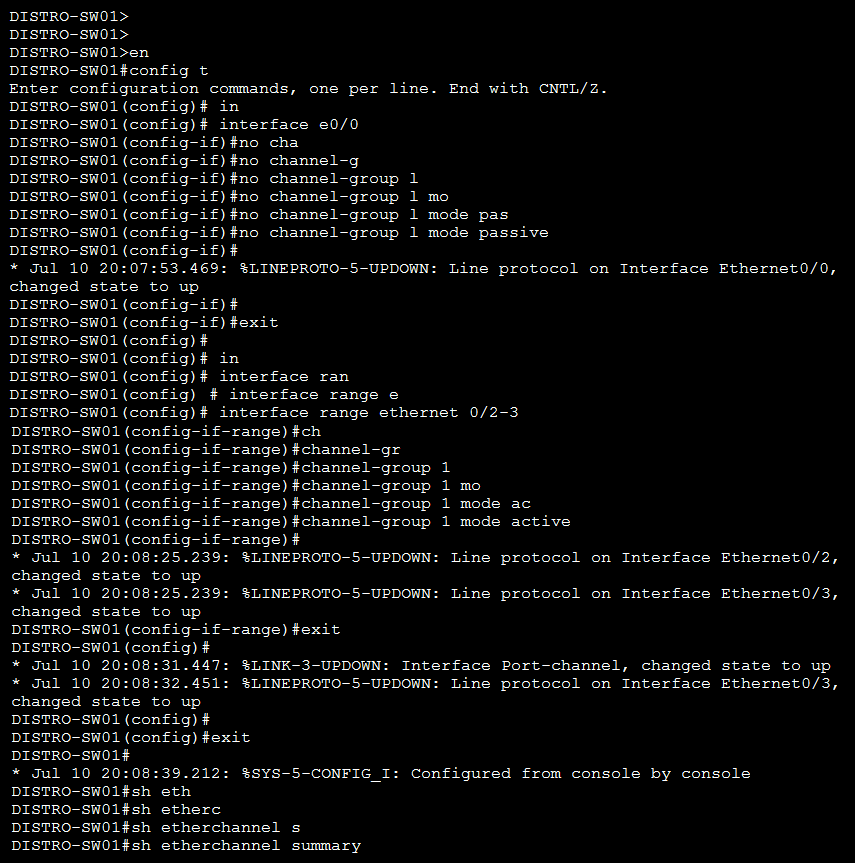

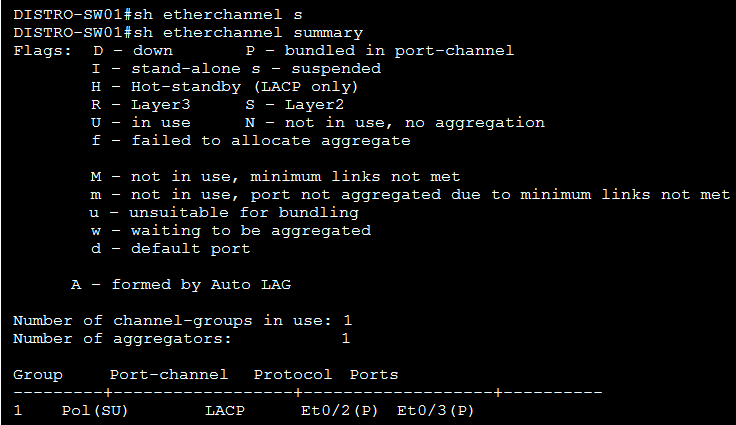

Ensure that port channel Po1 between DISTRO-SW01 and DISTRO-SW02 is operational using the LACP protocol. Configuration changes for this task must be made on DISTRO-SW01.

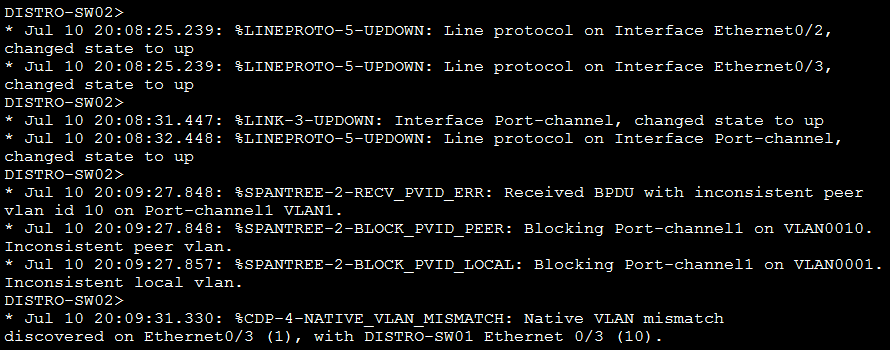

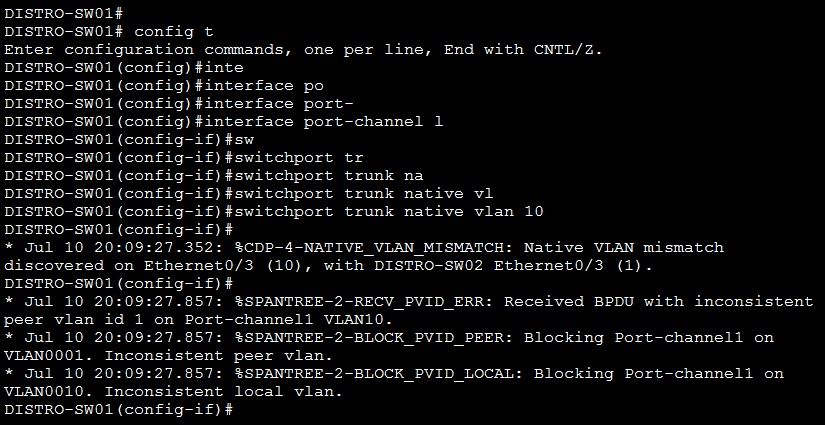

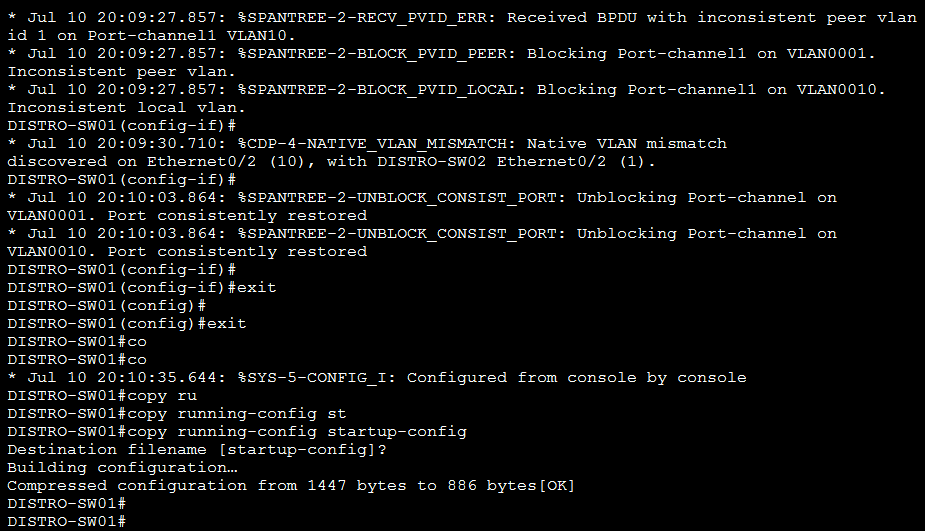

Ensure that traffic on VLAN 10 is carried as untagged traffic between DISTRO-SW01 and DISTRO-SW02.
Complete the Rapid-PVST+ configuration on DISTRO-SW2 by ensuring it it the secondary root switch for all VLANs in the range of 1 to 1005.
DISTRO-SW01
DISTRO-SW02
What are two benefits of implementing a Cisco SD-WAN architecture? (Choose two.)
AIt enforces a single, scalable, hub-and-spoke topology.
BIt simplifies endpoint provisioning through standalone router management.
CIt allows configuration of application-aware policies with real time enforcement.
DIt improves endpoint protection by integrating embedded and cloud security features.
EIt provides resilient and effective traffic flow using MPLS.
Question 6
Network Assurance
0
Question 7
Security
Question 8
Network Assurance
Question 9
Network Assurance
Question 10
Infrastructure
Question 11
Network Assurance
Question 12
Network Assurance
Question 13
Automation and Artificial Intelligence
Question 14
Network Assurance
Question 15
Security
Question 16
Security
Question 17
Architecture
Question 18
Network Assurance
Question 19
Security
Question 20
Network Assurance
Question 21
Automation and Artificial Intelligence
Question 22
Security
Question 23
Network Assurance
Question 24
Network Assurance
Question 25
Network Assurance
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
A customer has a pair of Cisco 5520 WLCs set up in an SSO cluster to manage all APs. Guest traffic is anchored to a Cisco 3504 WLC located in a DMZ. Which action is needed to ensure that the EoIP tunnel remains in an UP state in the event of failover on the SSO cluster?
AUse the same mobility domain on all WLCs.
BEnable default gateway reachability check.
CConfigure back-to-back connectivity on the RP ports.
DUse the mobility MAC when the mobility peer is configured.
Which feature does Cisco TrustSec use to provide scalable, secure communication throughout a network?
Asecurity group tag ACL assigned to each port on a switch
Bsecurity group tag number assigned to each user on a switch
Csecurity group tag number assigned to each port on a network
Dsecurity group tag ACL assigned to each router on a network
A network administrator is implementing a routing configuration change and enables routing debugs to track routing behavior during the change. The logging output on the terminal is interrupting the command typing process.
Which two actions can the network administrator take to minimize the possibility of typing commands incorrectly? (Choose two.)
AConfigure the logging synchronous global configuration command.
BConfigure the logging synchronous command under the vty.
CIncrease the number of lines on the screen using the terminal length command.
DConfigure the logging delimiter feature.
EPress the TAB key to reprint the command in a new line.
Which two pieces of information are necessary to compute SNR? (Choose two.)
Atransmit power
Bnoise floor
CEIRP
DRSSI
Eantenna gain
Which two steps are required for a complete Cisco DNA Center upgrade? (Choose two.)
Aautomation backup
Bsystem update
Cgolden image selection
Dproxy configuration
Eapplication updates
What are two common sources of interference for Wi-Fi networks? (Choose two.)
ALED lights
Bradar
Cfire alarm
Dconventional oven
Erogue AP
Which behavior can be expected when the HSRP version is changed from 1 to 2?
ANo changes occur because the standby router is upgraded before the active router.
BNo changes occur because version 1 and 2 use the same virtual MAC OUI.
CEach HSRP group reinitializes because the virtual MAC address has changed.
DEach HSRP group reinitializes because the multicast address has changed.

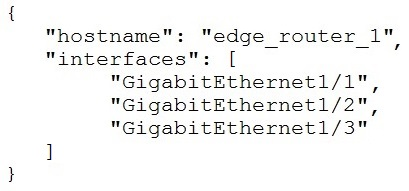

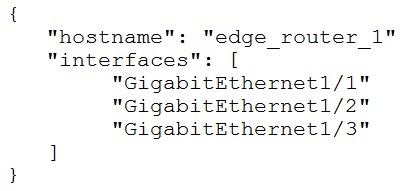

Which exhibit displays a valid JSON file?
A.
B.
C.
D.
Which IP SLA operation requires the IP SLA responder to be configured on the remote end?
AUDP jitter
BICMP jitter
CTCP connect
DICMP echo
A client with IP address 209.165.201.25 must access a web server on port 80 at 209.165.200.225. To allow this traffic, an engineer must add a statement to an access control list that is applied in the inbound direction on the port connecting to the web server.
Which statement allows this traffic?
Which statement about TLS is accurate when using RESTCONF to write configurations on network devices?
AIt is used for HTTP and HTTPS requests.
BIt requires certificates for authentication.
CIt is provided using NGINX acting as a proxy web server.
DIt is not supported on Cisco devices.
A customer has several small branches and wants to deploy a Wi-Fi solution with local management using CAPWAP.
Which deployment model meets this requirement?
Alocal mode
Bautonomous
CSD-Access wireless
DMobility Express

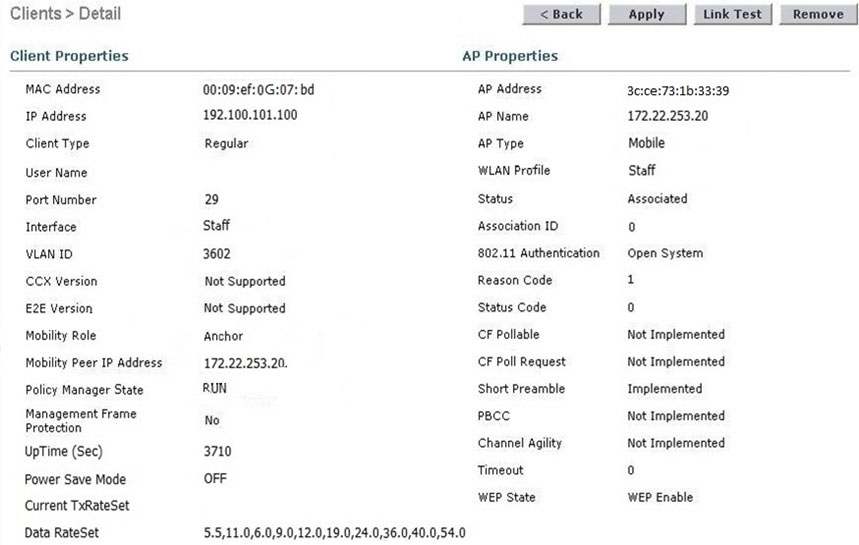

Refer to the exhibit.
The WLC administrator sees that the controller to which a roaming client associates has Mobility Role Anchor configured under Clients > Detail.
Which type of roaming is supported?
Aindirect
BLayer 3 intercontroller
Cintracontroller
DLayer 2 intercontroller

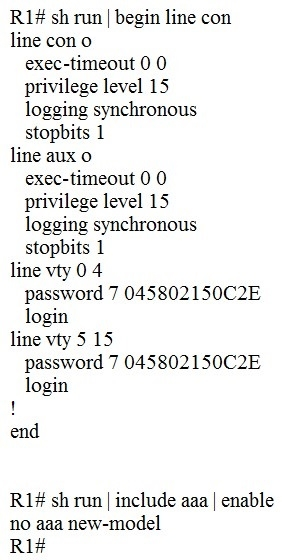

Refer to the exhibit.
Which privilege level is assigned to VTY users?
A1
B7
C13
D15

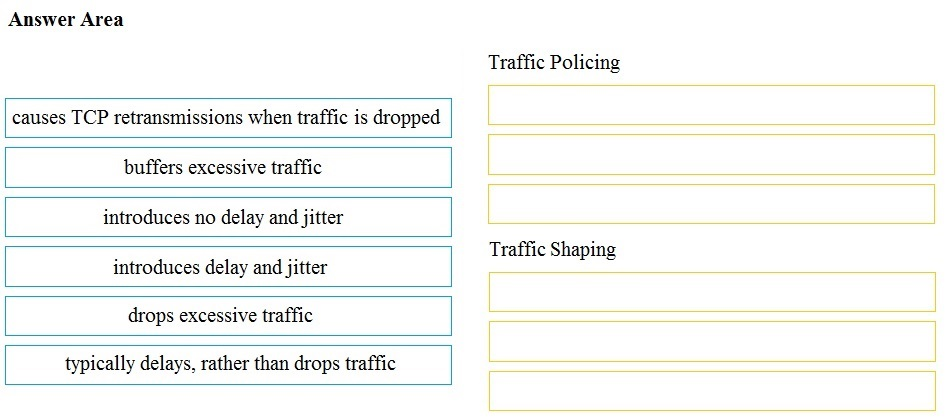

DRAG DROP -
Drag and drop the descriptions from the left onto the correct QoS components on the right.
Select and Place:

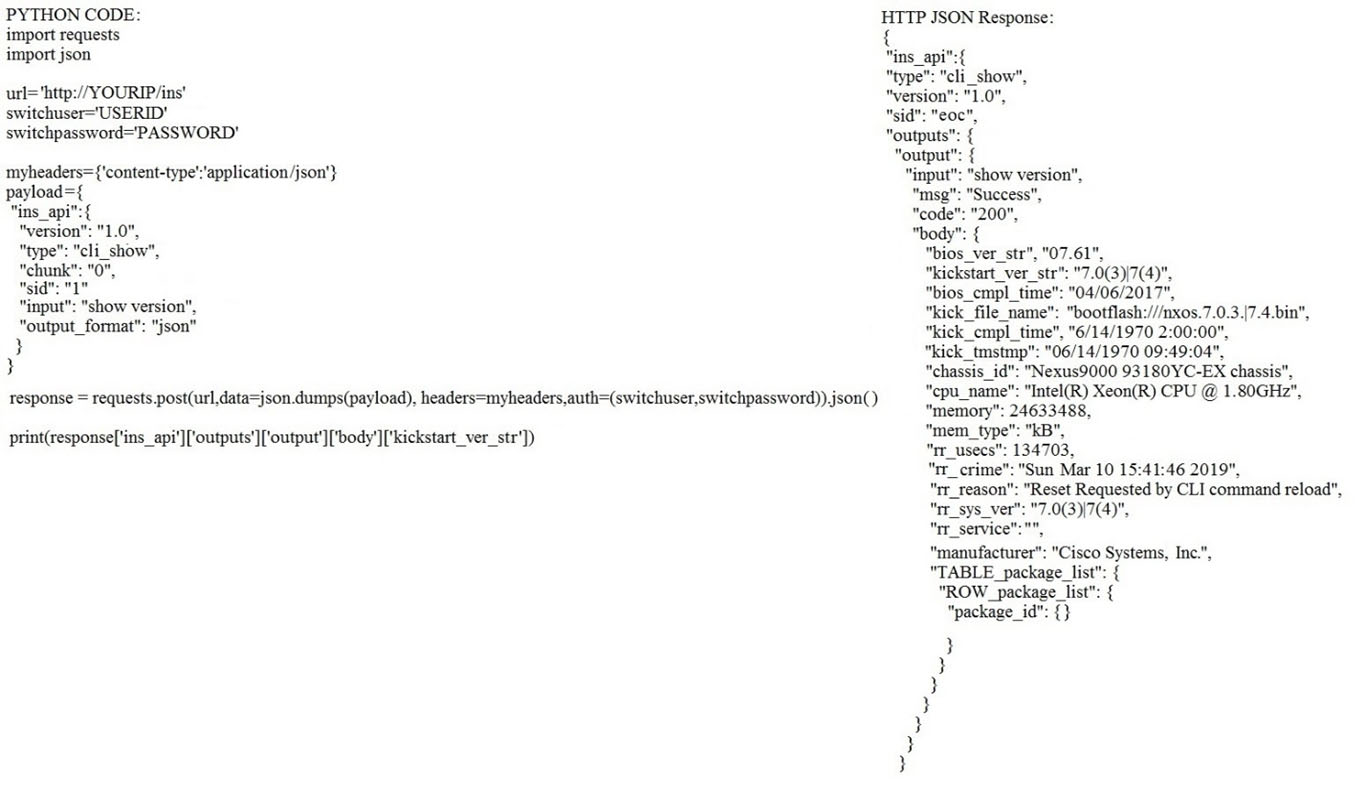

Refer to the exhibit.
Which HTTP JSON response does the Python code output give?
A7.0(3)|7(4)
B7.61
CNameError: name 'json' is not defined
DKeyError: 'kickstart_ver_str'
Which access control list allows only TCP traffic with a destination port range of 22-443, excluding port 80?
Adeny tcp any any eq 80 permit tcp any any gt 21 lt 444
Bpermit tcp any any range 22 443 deny tcp any any eq 80
Cpermit tcp any any eq 80
Ddeny tcp any any eq 80 permit tcp any any range 22 443
In which part of the HTTP message is the content type specified?
AHTTP method
Bbody
Cheader
DURI
A network is being migrated from IPv4 to IPv6 using a dual-stack approach. Network management is already 100% IPv6 enabled.
In a dual-stack network with two dual-stack NetFlow collectors, how many flow exporters are needed per network device in the flexible NetFlow configuration?
A1
B2
C4
D8

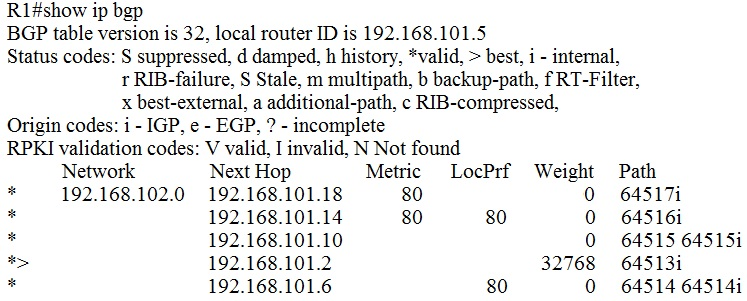

Refer to the exhibit.
Which IP address becomes the active next hop for 192.168.102.0/24 when 192.168.101.2 fails?
