An LSP is configured with one-to-one FRR and node protection on a Nokia 7750 SR. Which of the following statements is FALSE?
AEach PLR signals a protection tunnel that avoids the downstream node.
BA single protection tunnel can protect all LSPs that go through the same hop.
CA link protection tunnel is signaled if a node protection tunnel cannot be established.
DProtection tunnels used in this LSP are also detour tunnels.
Which of the following statements about router reflectors is FALSE?
AA full iBGP mesh is required among route reflectors.
BA route reflector can have both iBGP and eBGP clients.
CA router reflector disables the iBGP split-horizon rule for its clients.
DRoute reflectors are used to reduce the number of iBGP sessions required in an AS.

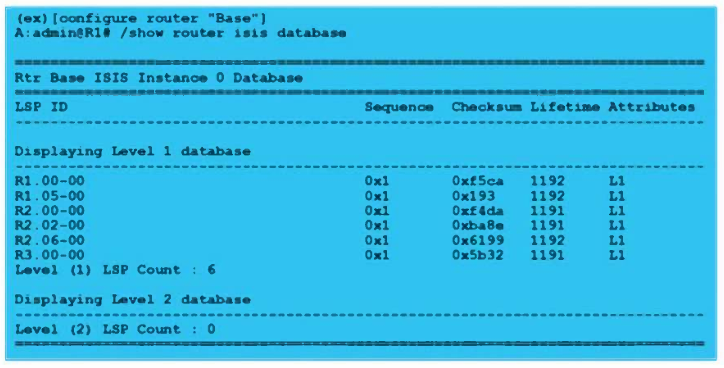

Which of the following statements best describes the IS-IS domain to which the command output corresponds?
ASingle-area IS-IS domain with no broadcast interfaces.
BMulti-area IS-IS domain with no broadcast interfaces.
CSingle-area IS-IS domain with broadcast interfaces.
DMulti-area IS-IS domain with broadcast interfaces.
A service needs to accept frames that have the following: an outer VLAN tag of 200 with an inner VLAN tag of 33; and frames that have an outer VLAN tag of 250 with an inner VLAN tag of 33. What SAP(s) need to be configured?
A1/1/1:200.*
B1/1/1:*.33
C1/1/1:.
DThis requires two SAPs: 1/1/1:200.33 and 1/1/1:250.33.
Question 6
Border Gateway Protocol Fundamentals for Services
0
Question 7
Multiprotocol Label Switching
Question 8
Services Architecture
Question 9
Multiprotocol Label Switching
Question 10
Services Architecture
Question 11
IS-IS Routing Protocol
Question 12
Multiprotocol Label Switching
Question 13
Multiprotocol Label Switching
Question 14
Border Gateway Protocol Fundamentals for Services
Question 15
Services Architecture
Question 16
Multiprotocol Label Switching
Question 17
Multiprotocol Label Switching
Question 18
Multiprotocol Label Switching
Question 19
Multiprotocol Label Switching
Question 20
Multiprotocol Label Switching
Question 21
IS-IS Routing Protocol
Question 22
Multiprotocol Label Switching
Question 23
Multiprotocol Label Switching
Question 24
Multiprotocol Label Switching
Question 25
Multiprotocol Label Switching
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
In a traditional (non EVPN) VPRN service, which of the following statements about Route Target (RT) is FALSE?
AAn RT is used to indicate the VPN service to which a route update is relevant.
BAn RT value is assigned to each VPRN service.
CAn RT is included as an extended community in MB-BGP route updates.
DConfiguring different RT values allows VPN customers to use the same private IP prefixes.

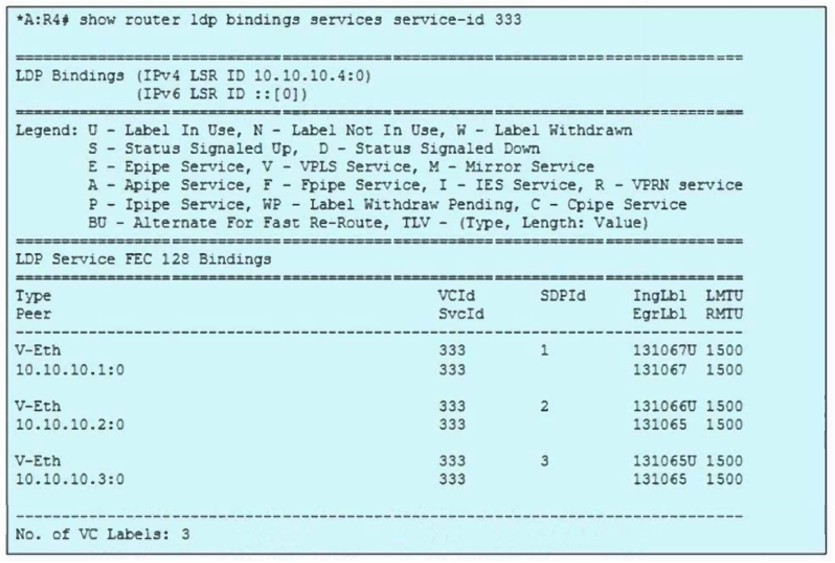

This output is from router R4. Service 333 is a VPLS. Why might the peer 10.10.10.1 have the same value for IngLbl and EgrLbl?
AThe labels are of local significance only, so other routers can use the same value.
B10.10.10.1 has yet to send its own unique label.
CRouter R4 is using the same tunnel to send and receive to 10.10.10.1.
DThe service on 10.10.10.1 is down, so it is rejecting packets.
Which of the following statements about the components of a distributed service on the Nokia 7750 SR is TRUE?
AA SAP can only be used by one service on a router.
BA dedicated SDP needs to be created for each service.
CA service is created on each site before the customer is created.
DSAPs must be created before a service is created.
Which protocol is used to signal the inner label for a Layer 2 VPN service?
ARSVP
BIPCP
CTLDP
DPPP
EEither RSVP or LDP
Consider an E-pipe service configured with SAP 1/1/1:5 and SAP 1/1/1:6.7. If the SAP 1/1/1:5 accepts an ingress frame, which of the following statements is TRUE?
AThe frame egresses 1/1/1:6.7 with an outer VLAN tag of 6 and inner tag of 7.
BThe frame is dropped at the egress SAP 1/1/1:6.7.
CThe frame egresses 1/1/1:6.7 with VLAN tag 5.
DThe frame egresses 1/1/1:6.7 with VLAN tag 6
Which of the following statements about IS-IS Traffic Engineering on a Nokia 7750 SR is FALSE?
ATraffic engineering information is carried in the extended TLVs.
BTraffic engineering must be enabled on all IP/MPLS routers along the LSP path.
CTraffic engineering information is stored in the opaque database.
DTraffic engineering is required for constraint-based LSPs
Which of the following statements about RSVP-TE summary refresh messages is TRUE?
AThey list the RSVP session names that the router is refreshing.
BThey list the Message IDs that the router is refreshing.
CThey list the Tunnel IDs that the router is refreshing.
DThey list the LSP IDs that the router is refreshing.
An E-pipe is configured with a service MTU of 5000. What value will be derived for the VC-MTU?
A4078
B4986
C5014
D5022

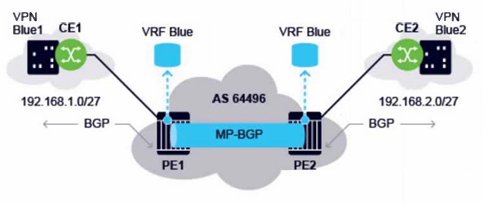

Assuming CE1 exports its system address using BGP, is a routing policy required on PE1 to advertise CE1's system address to PE2?
AYes. A routing policy is required to advertise routes between PE routers in a VPRN regardless of the CE-PE routing.
BYes. A routing policy is required in this case because BGP is used as the PE-CE routing protocol.
CNo, a routing policy is not required. By default, the Nokia 7750 SR will advertise all VPRN routes between PE routers.
DNo, a routing policy is not required on PEI, but an import policy is required on PE2.
On a Nokia 7750 SR, the OAM command 'svc-ping' can be used with options 'local-sdp' and 'remote-sdp'. Which of the following statements is TRUE?
A'local-sdp' and 'remote-sdp' indicate that all services using these SDPs are pinged.
B'local-sdp' and 'remote-sdp' indicate that pings are initiated from both local and remote routers.
CBoth 'local-sdp' and 'remote-sdp' take parameters to specify which SDPs are used for the test.
D'local-sdp' indicates that the ping is sent in-band, and 'remote-sdp' indicates the return ping is in-band.

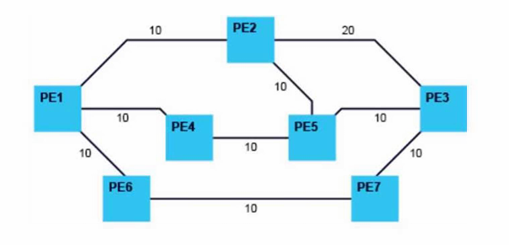

LSP1 is an LDP based LSP going from PE1 to PE3 through PE2 (see diagram). All links cost are shown in the diagram. LDP FRR is configured. If the link between PE2 and PE3 goes down, what is the likely path for LSP1 shortly after the failure?
ALSP1 will go down till IGP can calculate a new path.
BLSP1 will be up and take the following path: PE1 PE4 PE5 PE3
CLSP1 will be up and take the following path: PE1 PE6 PE7 PE3
DLSP1 will be up and take the following path: PE1 PE2 PE5 PE3
Which of the following statements about T-LDP is FALSE?
ALink-based and T-LDP sessions may be configured on the same LSR.
BT-LDP supports sessions between non-directly connected devices.
CT-LDP can be configured between directly connected devices.
DT-LDP Hello messages are sent to a multicast address.
Which of the following best describes a VPWS?
ALayer 3 direct Internet access service.
BLayer 2 point-to-point service.
CLayer 2 multipoint-to-multipoint service.
DLayer 3 IP multipoint-to-multipoint VPN service.
A Nokia 7750 SR enabled with LDP has multiple equal cost paths to a given FEC. After ECMP is enabled, which of the following statements is FALSE?
AThe router has new entries added for the given FEC in its LIB.
BThe router has new entries added for the given FEC in its FIB.
CThe router generates a single label for the given FEC and advertises it to all its peers.
DThe router has multiple LSP tunnels for the given FEC.
A Nokia 7750 SR label switches a packet it receives. The packet has an outer label TTL of 250 and an inner label TTL of 251. Which of the following statements is TRUE?
AThe outer label TTL will be 249 and the inner label TTL will be 250.
BThe outer label TTL will be 249 and the inner label TTL will be 251.
CThe outer label TTL will be 251 and the inner label TTL will be 251.
DThe outer label TTL will be 251 and the inner label TTL will be 252.
A router running a link-state routing protocol detects that one of its neighbors is no longer connected to it. The router generates a new link-state advertisement to inform other routers of the topology change. Which of the following is NOT an action that is triggered by this event?
AIf a router receives the new link-state advertisement, it acknowledges it, stores it, and forwards it to its own neighbors.
BIf a router receives multiple copies of the new link-state advertisement, it will simply ignore all copies received after the first one.
CEvery router that receives the new link-state advertisement updates its age field before forwarding it.
DEvery router that receives the new link-state advertisement runs the SPF algorithm to recalculate its shortest-path tree and its forwarding database.
Which of the following LSP administrative constraints may be propagated between IGP domains using PATH RSVP messages?
AHop limits
BAdministrative groups
CShared risk link groups
DBandwidth reservations

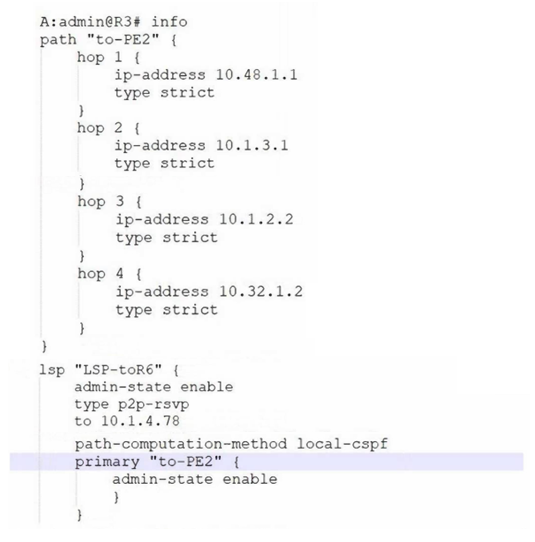

This LSP terminates on a system IP address. What is the system address of the destination node?
A10.32.1.2
B10.1.4.78
C10.48.1.1
D10.1.2.2
Which of the following statements defines an FEC in traditional IP routing?
AA group of packets that will be forwarded by the router in the same manner, over the same path.
BA group of packets that arrive at the router on the same interface.
CA group of packets that leave the router on the same interface.
DA group of packets that arrive at the router on the same interface, from the same source.
Which of the following statements about when the explicit null is implemented is TRUE?
AThe penultimate router will forward packets to the eLER, based on the IP header.
BThe eLER will receive packets with a top label value of 0.
CThe eLER will receive packets with a top label value of 3.
DThe penultimate router will pop the top label from the packets.
