A switch is claimed in a Mist organization using the activation code.
What are two possible device states that the switch will have in this scenario? (Choose two.)
What are the available Wired Assurance subscriptions for Juniper Mist switches in terms of port numbers?
A24-port switch only
B12-port and 24-port switches only
C12-port, 24-port, and 48-port switches
D12-port switch only
Which description accurately defines a Mist AI 5-stage IP Clos network?
AIt is a routing protocol specifically designed for campus fabrics, enabling efficient traffic forwarding and path selection.
BIt is a type of EVPN tunnel encapsulation employed in data center networks for overlay routing.
CIt is a hierarchical network architecture commonly used in campus fabrics, consisting of distribution, core, and access layers.
DIt is a type of VXLAN tunnel encapsulation used in data center networks for overlay routing.
Which statement is correct about the Switch Insights section?
AA user can view traffic per port on this page.
BThe Switch Insights feature is only available for EX Series switches.
COnly the top five switch events are available on this page.
DUsers can rollback to a previously known configuration from this page.
Which statement is correct about a 3-stage campus fabric IP Clos?
AThe distribution layer is connected to the access layer.
BThe distribution layer is connected to the core layer.
CThe core layer is connected to the access layer.
DThe core layer devices are connected to each other.
Question 6
Provisioning and Deployment
0
Question 7
Wired Assurance Management or Operations
Question 8
Provisioning and Deployment
Question 9
Campus EVPN-VXLAN
Question 10
Wired Assurance Management or Operations
Question 11
Campus EVPN-VXLAN
Question 12
Provisioning and Deployment
Question 13
Provisioning and Deployment
Question 14
Wired Assurance Management or Operations
Question 15
Provisioning and Deployment
Question 16
Provisioning and Deployment
Question 17
Wired Assurance Management or Operations
Question 18
Provisioning and Deployment
Question 19
Wired Assurance Management or Operations
Question 20
Campus Fabric Architecture
Question 21
Provisioning and Deployment
Question 22
Provisioning and Deployment
Question 23
Provisioning and Deployment
Question 24
Provisioning and Deployment
Question 25
Wired Assurance Management or Operations
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
When adopting your switches into the Juniper Mist cloud, you notice that the status of the switches is "Unassigned".
In this scenario, which additional step is required for the switches to show as "Connected" in the Juniper Mist dashboard?
AUse the Mist AI mobile application and rescan the QR code for adoption to your Mist site.
BYou must restart each switch before Mist recognizes it on your dashboard.
CTroubleshoot the system configuration with the [show system connections | grep 2200] and [show configuration system services outbound- ssh] commands.
DSelect each switch and assign them to your selected site.
What are two limitations of using LLDP for identifying wired clients? (Choose two.)
AIt requires LLDP to be configured on network devices.
BIt is not scalable to large networks.
CIt only operates between directly connected devices.
DIt is supported by all wired client devices.
A system administrator wants to onboard switches to a greenfield site.
In this scenario, which three actions will accomplish this task? (Choose three.)
AUse the Juniper Networks switch serial number.
BUse the Juniper Networks switch QR claim code.
CUse bulk claiming switches from a Juniper Mist sale order.
DUse the API to automate autoprovisioning of the switches to Juniper Mist.
EUse the Juniper Networks system MAC address number.
Which statement is correct about an MP-BGP route-target?
AThe route target is used to identify neighboring BGP routers that support the EVPN family.
BIt is used by BGP to notify other BGP routers that it is EVPN enabled.
CIt is used to identify the source and destination VRFs of MP-BGP routes.
DThe route target is automatically created and must be unique for each VRF.
What are three wired service level expectations (SLEs) that comprise Juniper Mist Wired Assurance? (Choose three.)
ACapacity
BSuccessful Connects
CSwitch Health
DCoverage
EThroughput
Which component performs VXLAN encapsulation and de-encapsulation?
AVLAN
BVTEP
Croot bridge
DWXLAN policy
You must provide physical connectivity between the core and access devices.
Which step of the campus fabric deployment process would allow you to accomplish this task?
ADefine the topology type and select the devices.
BConfigure the underlay network.
CConfigure the overlay network.
DApply the intent.
You are asked to deploy a 5-stage IP Clos campus fabric using claim codes for all of the switches.
Which two statements are correct about this process? (Choose two.)
AThe switches do not need to be assigned to the site where you plan to deploy the campus fabric.
BThe switches must be online when you begin the Campus Fabric wizard.
CThe switches do not need to be online when you begin the Campus Fabric wizard.
DThe switches must be assigned to the site where you plan to deploy the campus fabric.
You are experiencing issues with your video streams.
In this scenario, which SLE and classifier should you inspect to see if BUM traffic is a problem?
AThroughput -> Interface Anomalies
BThroughput -> Congestion
CThroughput -> Storm Control
DSuccessful Connect -> Authentication
A customer has purchased five new switches and assigned them to a site.
In the configuration hierarchy, how should a user configure the name or role of each switch?
AConfigure names and roles on the site-specific configuration.
BConfigure additional CLI commands on each switch.
CConfigure each switch individually on the Switch Configuration menu under the Switches menu.
DAdd names and roles of each switch to the organization-level templates.
Which two elements are required for a brownfield adoption? (Choose two.)
ADNS resolution
BInternet connectivity
Can imported Configuration Template
DOutbound UDP 1280 access
Which two statements are correct about using the managed option as your Juniper Mist Wired Assurance solution? (Choose two.)
AAll information in the Mist AI for supported wired devices is read-only.
BA subscription is required.
CNo subscription is required.
DAll supported wired devices are fully managed by the Mist AI.
You are asked to add a new VLAN in your network. You need to reference the same VLAN in multiple places in the configuration of switches and APs in your site.
Which Mist configuration tool will enable you to accomplish this task?
Asite switch configuration
Bsite variables
CWLAN template
Dswitch template
Which statement is correct about Juniper Mist Wired Assurance capabilities?
AJuniper Mist delivers operational visibility, sets service level expectations (SLEs), and monitors throughput, successful connects, and switch health using pre-connection and post-connection performance metrics.
BJuniper Mist can enforce throughput and successful connects but does not provide operational visibility or service level expectations (SLEs) for Juniper EX Series and QFX Series switches.
CJuniper Mist focuses solely on post-connection service level expectations (SLEs) and does not monitor throughput or successful connects.
DJuniper Mist primarily focuses on pre-connection service level expectations (SLEs) and does not monitor throughput, successful connects, or switch health on Juniper EX Series and QFX Series switches.
A company is planning to deploy a Juniper Mist campus fabric and wants to implement group-based policy (GBP) for microsegmentation.
Which statement is correct in this scenario?
AGBP requires access switches to be EX4100 or EX4400 switches.
BGBP configuration should be repeated on every individual switch in the fabric.
CGBP configuration must be applied to each individual switch in the fabric using the CLI.
DGBP can be implemented on any Juniper Networks switch that supports EVPN-VXLAN.

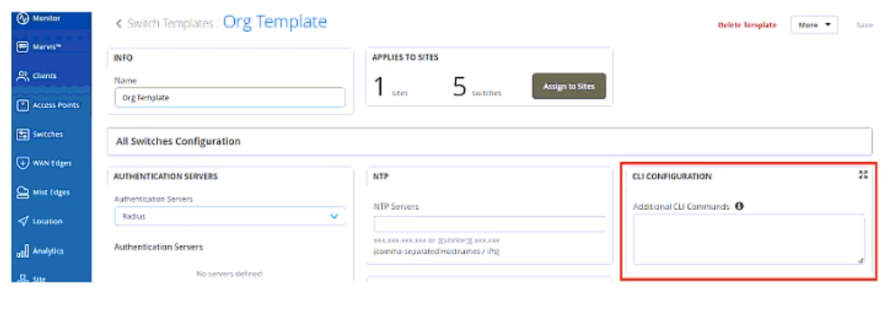

Click the Exhibit button.
Referring to the exhibit, which statement is correct about the Additional CLI Commands box?
AIt will not accept hash symbol (#) comment lines.
BIt will perform a spell check, validate that the command actually works, and confirm that it is available on the switch.
CIt will only attempt to push the commands that are written in the box.
DIt will push the commands that are written in the box and perform spell check and validations.
You want a Juniper cloud-ready switch to connect to the Juniper Mist cloud.
In this scenario, which two statements are correct? (Choose two.)
AThe switch must be running Junos OS version 23.2 or higher.
BThe switch needs outbound connectivity to the Juniper Mist cloud using either TCP port 2200 or port 443.
CThe switch must connect to the Juniper Agile Licensing Portal.
DThe switch must connect to a DNS server.
You are asked to apply the same system-level configuration across all the devices in multiple sites using Mist AI.
According to Juniper Networks, which solution should you use in this scenario?
AUse the CLI on each device.
BUse the site-level switch configuration option in Mist AI.
CUse an organization-level template in Mist AI.
DUse the individual switch configuration option in Mist AI.
Which three administrator roles allow you to claim switches? (Choose three.)
ANetwork Admin
BInstaller
CSuper User
DObserver
EHelpdesk
You want to receive e-mail notifications when there are issues with your switches.
Where would you configure this capability in the Mist dashboard?
