You are asked to configure filter-based forwarding on a Junos device.
Which two statements are correct in this scenario? (Choose two.)
AYou must create a routing policy.
BYou must create a route target.
CYou must create and apply a match filter.
DYou must create a routing instance.
You are implementing traffic engineering in your MPLS network. You must ensure that the MPLS routes are used to traverse your network. Your solution should not affect IGP routes in your route tables.
In this scenario, which traffic engineering setting will accomplish this behavior?
Abgp-igp-both-ribs
Bmpls-forwarding
Cbgp-igp
Dbgp
Which two protocols are capable of distributing labels for segment routing? (Choose two.)
ARSVP
BLDP
CIS-IS
DOSPF
You want to share routes between two routing instances that you have configured?
What are two ways to accomplish this task? (Choose two.)
AUse a non-forwarding instance.
BConfigure an instance import policy
CCreate a forwarding instance.
DUse a RIB group.
Question 6
Border Gateway Protocol (BGP)
0
Question 7
Border Gateway Protocol (BGP)
Question 8
Spanning-Tree Protocols
Question 9
Open Shortest Path First (OSPF)
Question 10
High Availability
Question 11
Multiprotocol Label Switching (MPLS)
Question 12
Open Shortest Path First (OSPF)
Question 13
Multiprotocol Label Switching (MPLS)
Question 14
Multiprotocol Label Switching (MPLS)
Question 15
Open Shortest Path First (OSPF)
Question 16
Border Gateway Protocol (BGP)
Question 17
IPv6
Question 18
Multiprotocol Label Switching (MPLS)
Question 19
Spanning-Tree Protocols
Question 20
Intermediate System to Intermediate System (IS-IS)
Question 21
Open Shortest Path First (OSPF)
Question 22
Multiprotocol Label Switching (MPLS)
Question 23
High Availability
Question 24
Multiprotocol Label Switching (MPLS)
Question 25
Border Gateway Protocol (BGP)
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0

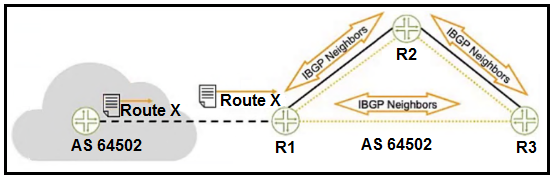

Click the Exhibit button.
Referring to the exhibit, from which device(s) does R3 learn about Route X?
Aboth R2 and R1
BR1 only
Cdirectly from the router in AS 64502
DR2 only

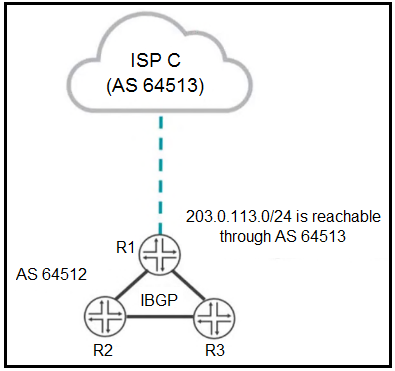

Click the Exhibit button.
You confirm that the R2 and R3 routers are receiving a BGP route to the 203 0.113.0/24 network, but both routers display the route as hidden.
Referring to the exhibit, which two actions solve this problem? (Choose two.)
AApply the routing policy on R1 as an import policy to the IBGP group.
BConfigure a routing policy on R1 that sets the next hop for the 203 0.113.0/24 BGP route to the IP address that R1 uses for IBGP peering.
CConfigure a routing policy on R1 that sets the next hop for the 203.0.113.0/24 BGP route to the IP address that R1 uses for EBGP peering.
DApply the routing policy on R1 as an export policy to the IBGP group.

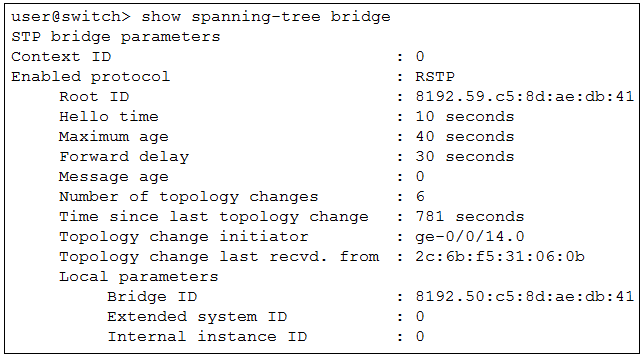

Click the Exhibit button.
Which two statements are correct about the information shown in the exhibit? (Choose two.)
AThe switch has a bridge priority of 8k.
BThis switch is the root bridge for this spanning tree topology.
CThe root bridge is reachable using the ge-0/0/14 interface.
DThe root bridge’s priority is 4k.
An OSPF router does not have a router ID configured.
In this scenario, which statement is correct about the router ID?
AThe Junos OS will use the IP address assigned to the interface with the lowest MAC address.
BThe Junos OS will use the IP address assigned to the loopback interface for the router ID.
CA router ID will not be assigned until it is manually configured.
DThe Junos OS will use the IP address assigned to the interface with the highest priority.
Click the Exhibit button.
You have configured graceful RE switchover (GRES), however you cannot complete the show system switchover command.
Referring to the exhibit, what is the problem?
AThe command is only available if a backup router is configured.
BThe command is only available if non-stop routing is enabled.
CThe command is only available if graceful restart is enabled.
DThe command is only available on the backup Routing Engine.

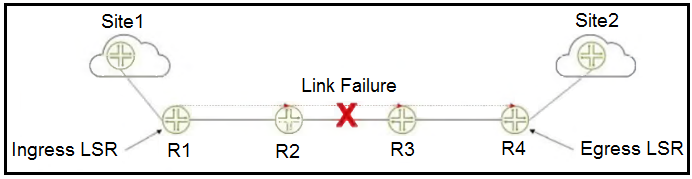

Click the Exhibit button.
Referring to the exhibit, you have an established RSVP LSP between R1 and R4 when you experience a link failure between R2 and R3.
Which two statements are correct? (Choose two.)
AR2 sends a ResvTear message upstream to R1 signaling the link failure.
BR3 sends a PathTear message downstream to R4 signaling the link failure.
CR2 sends a PathTear message upstream to R1 signaling the link failure.
DR3 sends a ResvTear message downstream to R4 signaling the link failure.
Which OSPF database packet determines which router is in charge of the database synchronization and the transferring of LSA headers between the two systems?
Alink-state request
Bdatabase description
Chello
Dlink-state update

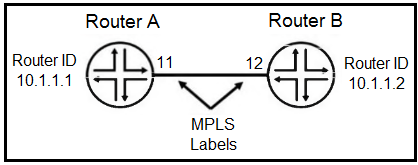

Click the Exhibit button.
The routers shown in the exhibit are configured for segment routing.
In this scenario, what is the adjacency SID that Router B advertises to Router A?
A11
B10.1.1.2
C10.1.1.1
D12
Click the Exhibit button.
All devices in the network are configured correctly and the path requirements are valid.
Referring to the exhibit, which two statements are correct? (Choose two.)
AThe primary LSP will be signaled, and its state will be up.
BThe secondary LSP will not be signaled, and its state will be down.
CThe secondary LSP will be signaled, and its state will be up.
DThe primary LSP will not be signaled, and its state will be down.

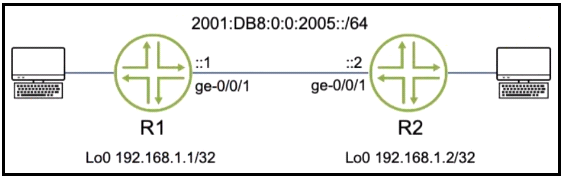

Click the Exhibit button.
You are asked to configure OSPF between routers R1 and R2 using IPv6 addresses.
Which two tasks will accomplish your objective? (Choose two.)
AUnder the [edit routing-options] hierarchy, configure a 128-bit router ID.
BIssue the set protocols ospf3 area 0.0.0.0 interface ge-0/0/1.0 command.
CIssue the set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 command.
DUnder the [edit routing-options] hierarchy, configure a 32-bit router ID.
What are three well-known mandatory BGP attributes? (Choose three.)
AMED
Borigin
Ccommunity
DAS path
Enext hop
Click the Exhibit button.
Referring to the exhibit, what does the configuration achieve on the ge-0/0/3 interface?
AThis interface will assign itself an IPV6 address within this prefix, based on a 64-bit hash of the loopback IPv6 address.
BThis interface will send a request to a DHCP server, requesting an EUI-64 address in this prefix.
CThis interface will assign itself an IPv6 address within this prefix, based on its MAC address.
DThis interface will send a request to an EUI server, requesting a 64-bit interface address within this 64-bit prefix.
What are three types of MPLS routers? (Choose three.)
Atransit routers
Begress routers
Cpeering routers
Daggregation routers
Eingress routers
You are bringing a new network online with three MX Series devices enabled for STP. No root bridge priority has been configured.
Which statement is true in this scenario?
AThe device with the lowest MAC address will be elected as the root bridge.
BThe device with the lowest numerical lo0 IP address will be elected as the root bridge.
CThe device with the highest MAC address will be elected as the root bridge.
DThe device with the highest numerical lo0 IP address will be elected as the bridge.
Which two statements are correct about the behavior of IS-IS metrics? (Choose two.)
AWide metrics enable interfaces to advertise metrics larger than 63.
BBy default, the metric of an interface is calculated based on the speed of the interface.
CWide metrics enable an interface to advertise different metrics at Level 1 and Level 2.
DBy default, all physical interfaces have a metric of 10.
You are troubleshooting two OSPF routers that have an adjacency that remains in the ExStart state.
What would cause this problem?
Amismatched OSPF hello intervals on the OSPF interfaces
Bmismatched authentication settings on the OSPF interfaces
Cmismatched MTU settings on the OSPF interfaces
Dmismatched subnet settings on the OSPF interfaces
Click the Exhibit button.
You have an established LSP between your R1 and R5 devices using the configuration shown in the exhibit. You are asked to ensure that MPLS labels are used to forward traffic by all devices within the LSP.
Which action will accomplish this behavior?
AConfigure the ultimate-hop-popping statement under the R1_TO_R5 label switched path on R1.
BConfigure the explicit-null statement under the protocol mpls hierarchy on R1.
CConfigure the install statement under the R1_TO_R5 label switched path on R1.
DDelete the no-cspf statement under the R1_TO_R5 label switched path on R1.
When would you use the qualified-next-hop statement with a static route?
AYou can use it to install the static route into different routing tables.
BYou can use it to send unwanted traffic to a null route.
CYou can use it to specify multiple next hops with different preferences.
DYou can use it to resolve the next hop if the next hop is not directly connected.

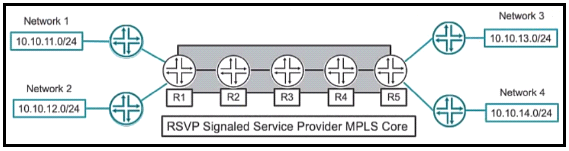

Click the Exhibit button.
Referring to the exhibit, what is the minimum number of LSPs required to support all four networks?
A1
B2
C8
D4
You want to see a detailed list of all established BGP sessions.
In this scenario, what would be a valid command to accomplish this task?
Ashow bgp neighbor
Bshow route receive-protocol bgp <neighbor IP address>
