JN0-232: Security, Associate (JNCIA-SEC)Demo

Junos OS is Juniper’s network operating system and powers Juniper physical and virtual networking and security products. It is distinct from a network management system and is not an IoT-specific operating system.

SRX Series Firewalls support flow mode, which processes traffic according to flow or session state, and packet mode, which processes traffic on a per-packet, stateless basis.

Junos OS uses the insert configuration command to reposition a NAT rule before or after another rule in its rule set. This allows a newly added rule at the bottom of the list to be placed in the required evaluation order.

SRX security policies are selected using the packet’s incoming security zone, determined by its ingress interface, and outgoing security zone, determined by the forwarding lookup. Confirming that those interfaces are assigned to the intended zones is therefore the next step before evaluating the applicable security policy or later processing such as NAT and ALGs.

On Juniper SRX firewalls, zone-based policies are evaluated before global policies. When neither policy set matches, the implicit default security policy is applied, which denies and discards the traffic by default.

Destination NAT supports port forwarding by translating a destination port. Static NAT provides a one-to-one mapping with a corresponding translation in the opposite direction. Port Address Translation is not used by static NAT. Palo Alto Networks documents that destination NAT can perform port forwarding or port translation, while bidirectional static source translation creates a corresponding opposite-direction translation.

Zone-based security policies operate in a from-zone to to-zone context: traffic is classified using both its source and destination zones, along with other match criteria such as addresses and applications.

Junos security address books support IP-prefix address entries, and the global address book provides address objects that are available across security zones. Security address-book entries are IP addresses/prefixes, DNS names, ranges, or wildcard addresses—not routing or MAC address objects.

SRX300 Series factory-default security policies permit all traffic from the trust zone to the trust zone and from the trust zone to the untrust zone. Traffic initiated from untrust to trust is denied by default.

On current SRX platforms, content filtering does not require a separate license. Since Junos OS Release 21.4R1, content filtering determines the file type from the file content; file-extension-based evaluation is deprecated legacy behavior.

The flow uses source NAT/PAT: the original source 10.20.30.40:53726 is translated to 192.0.2.1:21423. The destination remains 203.0.113.1:53, so the original destination IP address is unchanged.

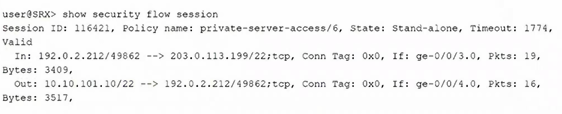

The translated forward flow replaces the original destination IP address, 203.0.113.199, with 10.10.101.10, which is destination NAT. Port 22 remains unchanged, so no port address translation (PAT) occurs. Juniper documents destination NAT as translation of the original destination address and distinguishes address-only translation from address-and-port translation.

NextGen Web Filtering requires an SSL initiation profile for the SRX device to communicate with the NGWF cloud over HTTPS. Juniper’s configuration procedure uses a self-signed certificate for the SSL handshake and configures the SSL initiation profile to call that certificate.

NGWF cloud connectivity is verified through the Web Filtering status command, which reports the Web Filtering server connection status, such as UP or DOWN. Juniper documents this as show security utm web-filtering status; the web-filtering status choice is the applicable one.

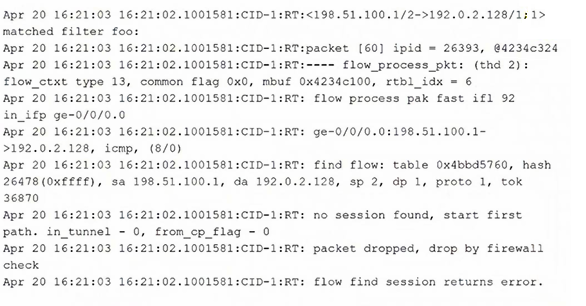

An SRX security screen is dropping the ICMP packet during its ingress firewall check. Screens inspect traffic entering a security zone and can deny matching connection attempts before normal forwarding completes; SRX screen options include ICMP protections.

Host-inbound traffic controls which system services and protocols can reach the device through interfaces assigned to a security zone. SSH is a host-inbound system service, and system services are disabled by default in a security zone; removing its permitted host-inbound configuration therefore prevents SSH access. Console access is local rather than zone ingress traffic. The host-inbound-traffic statement is explicitly configured under a security zone.

The Routing Engine performs control-plane functions: it constructs and maintains routing tables and supplies forwarding information to the Packet Forwarding Engine. The Packet Forwarding Engine is responsible for forwarding transit packets, so the Routing Engine manages it rather than being managed by it. Junos OS Architecture Overview

For ingress traffic, SRX flow processing performs a session lookup before the later routing, security-policy, and NAT decisions. Screening is applied at the ingress stage associated with that session-processing path; therefore, among the listed stages, it occurs after session lookup and before route lookup, security-policy processing, and NAT-policy processing.

Network Address Translation (NAT) translates addresses to accommodate overlapping private address ranges. Port Address Translation (PAT) translates ports as well as addresses, allowing many internal connections to share a limited set of public IP addresses. Juniper documents PAT as a source-NAT capability on SRX devices and notes that port translation is enabled by default for source NAT pools.

ge-0/0/1.0 is the ingress interface reported in the drop record, and its Null Zone membership causes the first packet of the flow to be dropped. Assigning that interface to a security zone allows SRX to apply the relevant zone and security-policy context to the traffic. Traffic Processing on SRX Series Firewalls Overview

The Packet Forwarding Engine performs packet forwarding, route lookups, and Layer 2/Layer 3 switching for traffic transiting the device. The Routing Engine controls routing updates and system management, derives the forwarding table from routing tables, and copies that forwarding information to the Packet Forwarding Engine. Therefore, the Routing Engine manages the Packet Forwarding Engine rather than the reverse.

A route lookup identifies the egress interface and its destination security zone. The ingress interface is determined by where the traffic entered, and DNS names are not determined by routing.

For an uncached URL that does not match a local allow list or block list, NGWF sends the URL or destination IP address to the Juniper NGWF Cloud. The cloud categorizes the URL and supplies site-reputation information, which the SRX Series Firewall uses to act on the traffic.

Rate limiting host-bound exception traffic constrains packet floods before they overwhelm Routing Engine resources, helping protect the control plane from denial-of-service attacks.
