Question 1

Manage and monitor Aruba solutions

Which statement is true about NAE scripts?

A The System Resource Monitor is the only script installed on the system by default.
B The System Resource Monitor and Health Monitor are the only scripts installed on the system by default.
C No script is installed on the system by default.
D The Health Monitor is the only script installed on the system by default.

Question 2

Plan the wired network solution

Question 3

Plan the wired network solution

Question 4

Manage and monitor Aruba solutions

Question 5

Manage and monitor Aruba solutions

Question 6

Plan the wired network solution

Question 7

Plan the wired network solution

Question 8

Manage and monitor Aruba solutions

Question 9

Troubleshoot the wired network solution

Question 10

Plan the wired network solution

Question 11

Troubleshoot the wired network solution

Question 12

Install and configure the wired network solution

Question 13

Troubleshoot the wired network solution

Question 14

Install and configure the wired network solution

Question 15

Install and configure the wired network solution

Question 16

Install and configure the wired network solution

Question 17

Troubleshoot the wired network solution

Question 18

Plan the wired network solution

Question 19

Troubleshoot the wired network solution

Question 20

Troubleshoot the wired network solution

Question 21

Manage and monitor Aruba solutions

Question 22

Troubleshoot the wired network solution

Question 23

Troubleshoot the wired network solution

Question 24

Plan the wired network solution

That's the end of the Preview

This exam has 59 community-verified practice questions. Create a free account to access all questions, comments, and explanations.

Topics covered:

Plan the wired network solutionInstall and configure the wired network solutionTroubleshoot the wired network solutionManage and monitor Aruba solutions

Log In / Sign Up

Page 1 of 3 • Questions 1-25 of 59

1 2 3

→

Know a question that should be here? Contribute to this exam

Before designing a new network solution for a customer with between 2380 and 5053 employees, you should gather information from the customer about their wired network needs.
What are valid questions to determine their wired network needs? (Choose two.)

A How many wired ports are needed for users and devices?
B Do C-level executives support this initiative?
C Do you need to improve customer support?
D Is there any constraint in the budget for new solution?
E What type of application are used in the network?

You have designed a new wired solution for a customer that uses gateways and Dynamic Segmentation. Which statements about User-Based Tunneling are true? (Choose two.)

A In UBT, client traffic is tunneled to the Aruba gateway.
B UBT is supported with standalone and clustered Aruba Gateway.
C In UBT, interface traffic is tunneled to Aruba Gateway.
D UBT is supported only with standalone Aruba Gateway.
E In UBT, the Aruba Gateway performs user authentication.

DRAG DROP -

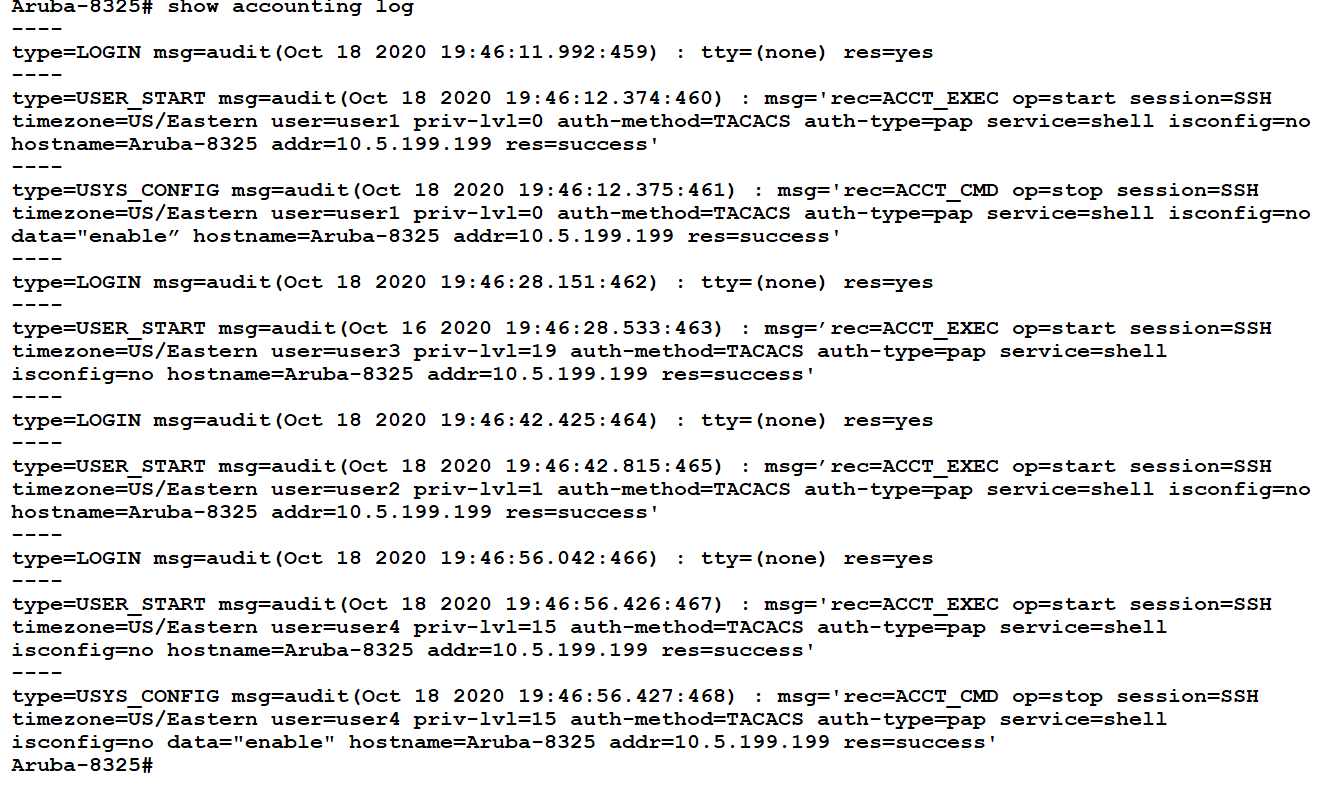

A company has set up a ClearPass Policy Manager cluster running the TACACS+ protocol for switch admin authentication.

Question Image

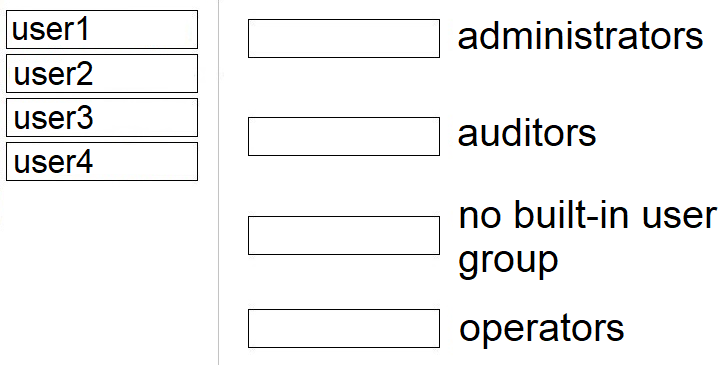

Based on the authentication logs, match the users to the built-in user group on the switch that they have received. (Each option may be used once, more than once, or not at all.)

Question Image

An administrator wants to start a REST API session with an Aruba-OS CX switch. Which HTTP method should the Administrator use to start a session?

A POST
B GET
C PUT
D LOGIN

Question 6

Plan the wired network solution

Question 7

Plan the wired network solution

Question 8

Manage and monitor Aruba solutions

Question 9

Troubleshoot the wired network solution

Question 10

Plan the wired network solution

Question 11

Troubleshoot the wired network solution

Question 12

Install and configure the wired network solution

Question 13

Troubleshoot the wired network solution

Question 14

Install and configure the wired network solution

Question 15

Install and configure the wired network solution

Question 16

Install and configure the wired network solution

Question 17

Troubleshoot the wired network solution

Question 18

Plan the wired network solution

Question 19

Troubleshoot the wired network solution

Question 20

Troubleshoot the wired network solution

Question 21

Manage and monitor Aruba solutions

Question 22

Troubleshoot the wired network solution

Question 23

Troubleshoot the wired network solution

Question 24

Plan the wired network solution

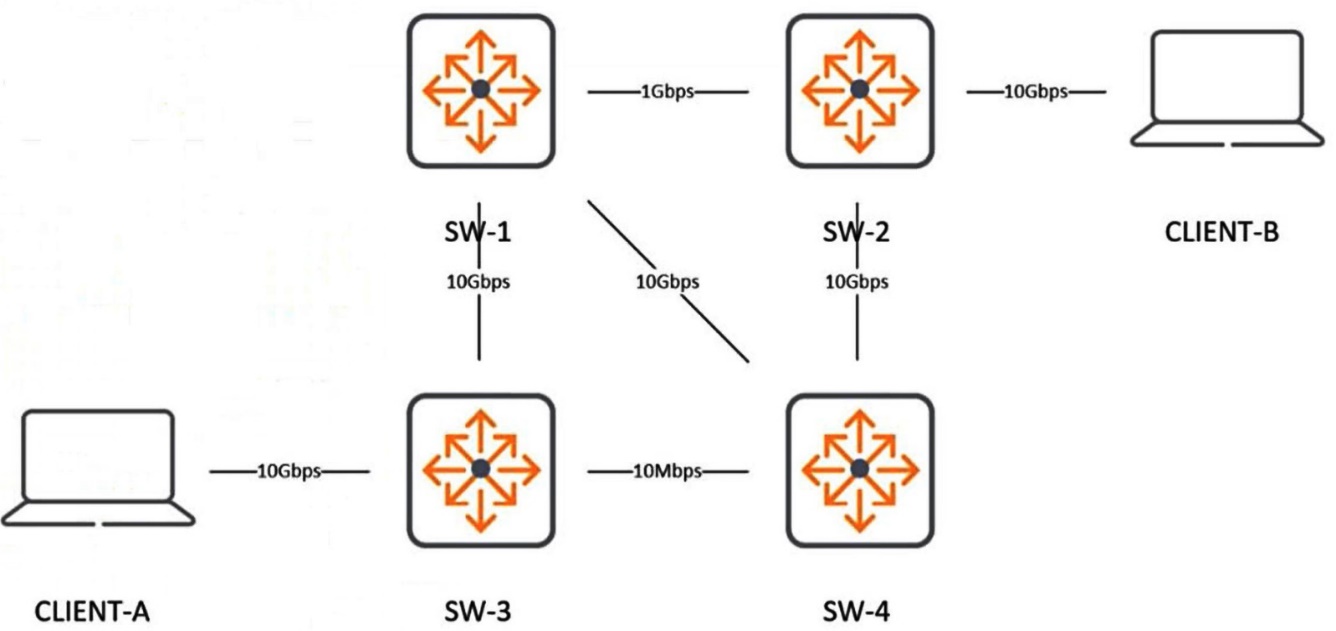

A customer would like to utilize some ArubaOS-CX 6300F switches to perform OSPF routing.

Question Image

With the ports set up as routed ports, and default parameters for OSPF, what is the OSPF cost for the connection between SW-3 and SW-4?

A 10
B 100
C 1000
D 10000

An administrator is utilizing the orchestration capabilities of NetEdit. What are the two plan types that can be created? (Choose two.)

A Configuration management plan
B Deployment plan
C Firmware plan
D Configuration plan

What are the requirements for managing a switch using Aruba NetEdit? (Choose two.)

A HTTPS service must be restricted to the management VRF.
B Telnet must be disabled on the switch.
C The switch user account that NetEdit uses should have a password.
D REST access-mode must be set to read-write.

You have removed a member out of the ArubaOS-CX 6300 VSF configuration. The login to the removed member fails. What is true about switch login recovery?

A The zeroize task will remove all user passwords; the configuration remains on the switch.
B The task can be executed remotely.
C The zeroize task executes the zeroize.txt from the root of the CF card on the switch.
D The task requires physical access to the switch.

What are two valid steps in a Proof of Concept plan? (Choose two.)

A Development of the items to be tested
B Validation of the end user experience
C Decision to move forward
D Evaluation of solution against success criteria

A customer is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing a packet capture, it is determined that there is unwanted UDP port 68 traffic being broadcast.
To mitigate this issue, which ArubaOS-CX 6300M switch feature would be best to implement?

A bcmc-optimization
B private-vlan
C dhcpv4-snooping
D broadcast-limit

Which MAC address is valid for use as a VSX system-MAC address?

A 01:00:5E:40:10:01
B AB:00:04:00:FF:00
C FF:00:00:00:00:00
D 0A:00:00:00:00:00

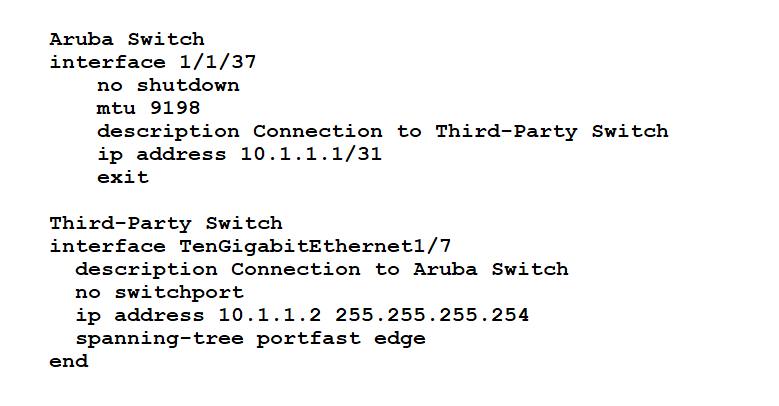

A customer wants to verify the proposed configuration snippets to create a point-to-point link between Aruba Switch and a third-party switch.

Question Image

Will this configuration work with static routing?

A No, the configuration will not work because the Aruba Switch does not have the “routing” command on it.
B No, the configuration will not work, because the Aruba Switch has an MTU mismatch which will prevent IP communication.
C Yes, the configuration should work fine and has no issues.
D No, the configuration will not work, because the Aruba Switch does not have a locally reachable IP address from the third-party switch.

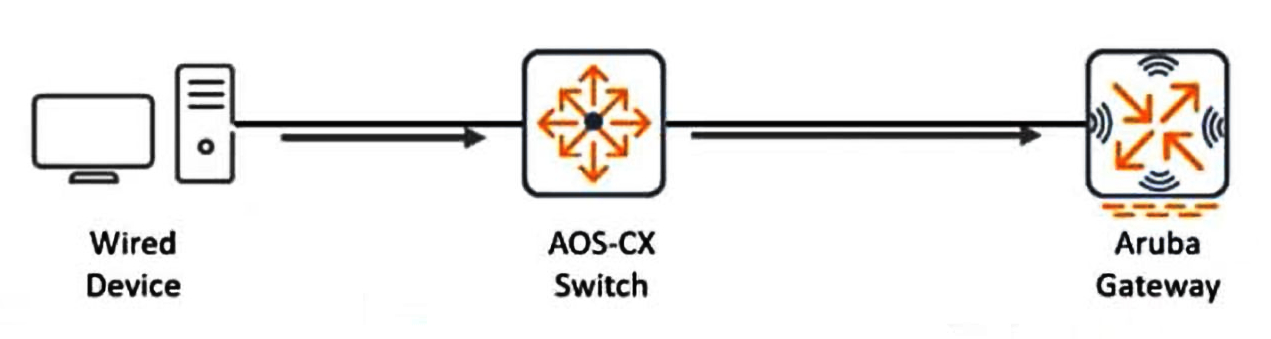

With the given topology, the customer has ArubaOS-CX 6300 switches and Aruba Gateway in use.

Question Image

What is required for the client traffic to be tunneled as per best practice between the connected switch port and the Aruba Gateway? (Choose two.)

A The ArubaOS-CX switch and Aruba gateway should be EBGP peers.
B IP Protocol 6 should not be blocked on the datapath.
C Change the default MTU on the data-path between the switch and gateway.
D IP Protocol 47 should not be blocked in the data-path.
E The ArubaOS-CX switch and Aruba gateway should have an end-to-end MacSec connection.

A customer would like to utilize some ArubaOS-CX 8325 switches to discard unwanted traffic to the IP address 10.20.30.40.
You enter the following command on the switch:
ip route 10.20.30.40/32 blackhole
What will be the result?

A The switch will discard packets to the destined host and create a log message.
B The switch will not discard packets to the destined host.
C The switch will discard packets to the destined host silently
D The switch will discard packets to the destined host and return ICMP error to the sender.

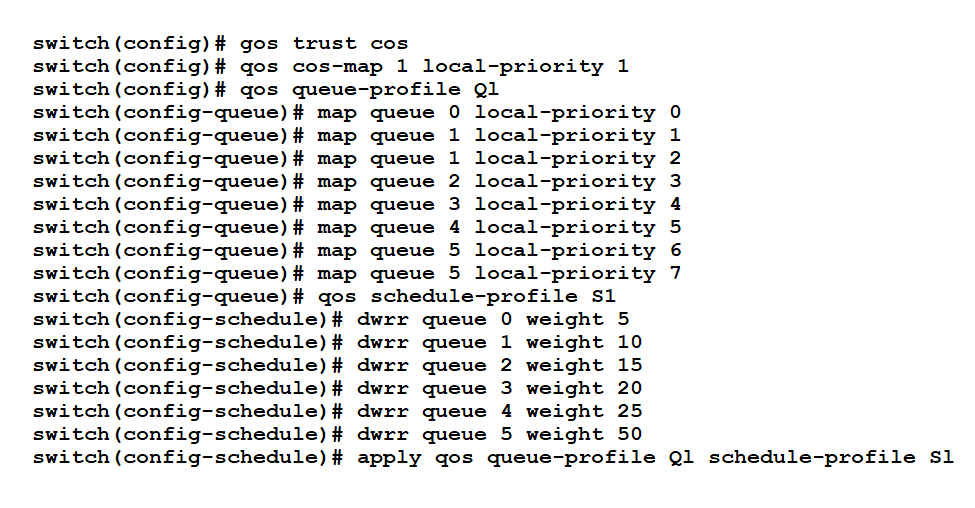

Refer to the exhibit:

Question Image

Which statement is true?

A Q1 and S1 are applied to all interfaces.
B Q1 and S1 are applied to all interfaces that do not have a QoS override applied.
C No default queues are changed.
D To be effective, both Q1 and S1 still need to be applied to interfaces.

A customer with an ArubaOS-CX 6300M switch is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing troubleshooting, it is determined that many of the local websites on the LAN that users are unable to reach are resolved to an invalid MAC address.
What are the minimum steps that should be performed to mitigate this condition? (Choose two.)

A Implement ARP ACLs to define trusted MAC address to IP bindings.
B Implement dhcpv4-snooping.
C Enable ‘arp inspection’ on the end-user VLAN.
D Enable ‘arp inspection’ on the end-user physical ports.
E Enable ‘arp inspection untrusted’ on the end-user physical ports.

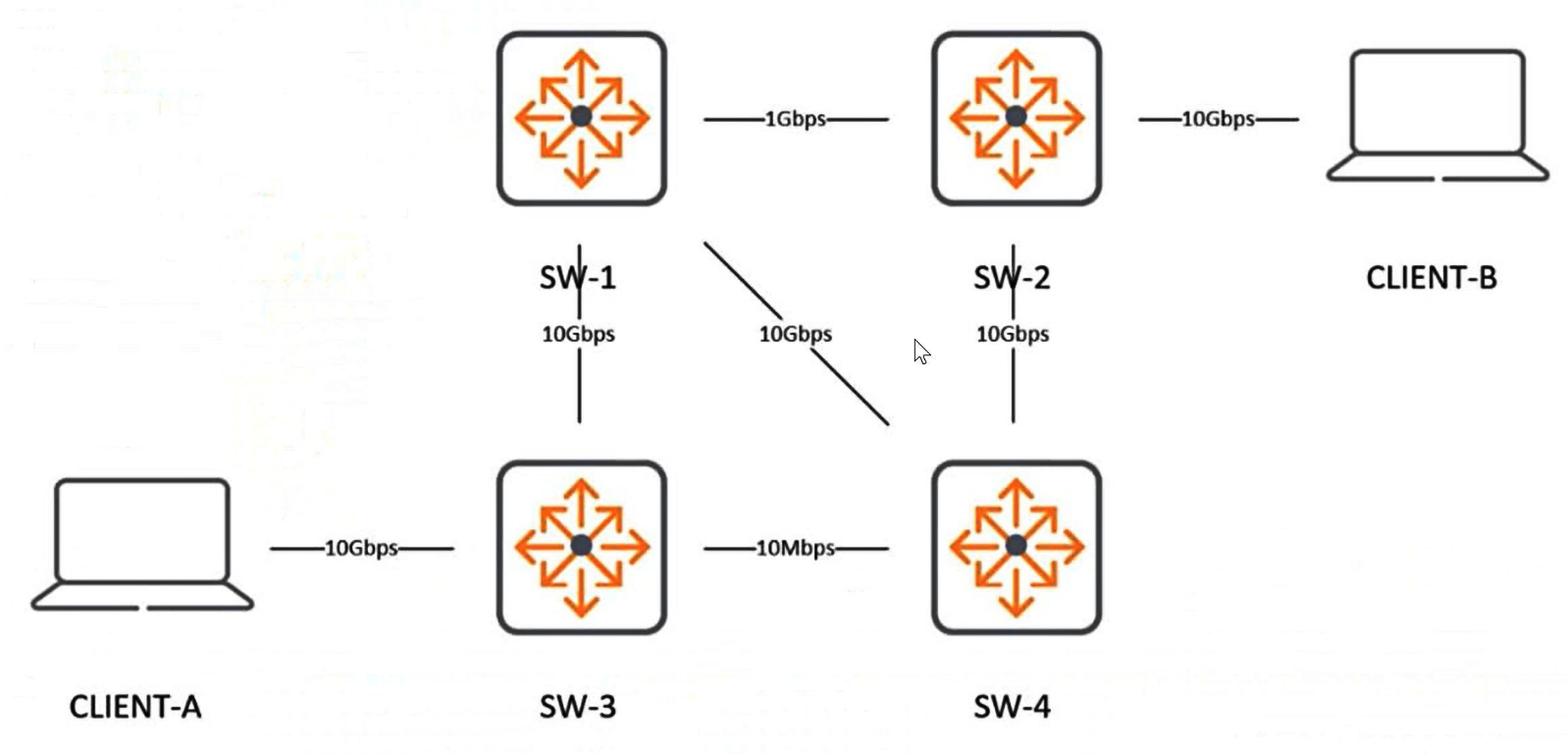

A customer would like to utilize some ArubaOS-CX 6300M switches to perform OSPF routing.

Question Image

All ports are routed, and ECMP is enabled, with other default parameters for OSPF. What will be the result of traffic sent from CLIENT-A to CLIENT-B?

A Traffic will be SW3 -> SW-4 -> SW-2.
B Traffic will be SW3 -> SW-1 -> SW-2.
C Traffic will be SW3 -> SW-1 -> SW-4 -> SW-2.
D Traffic will be SW3 -> SW-1 -> SW-2 & SW3 -> SW-4 -> SW-2.

ArubaOS-CX 8325 VSX configuration has a failed ISL link between the switches with keepalive status established. While troubleshooting the condition, what is the expected behavior of the VSX traffic flow in the current condition?

A VSX tables are out of sync.
B VSX peer is seen as down.
C VSX nodes keep forwarding traffic over its interfaces.
D VSX protection state is OK.
E VSX tables are in sync.

(Scenarios may contain multiple errors, which may or may not impact the solution.)

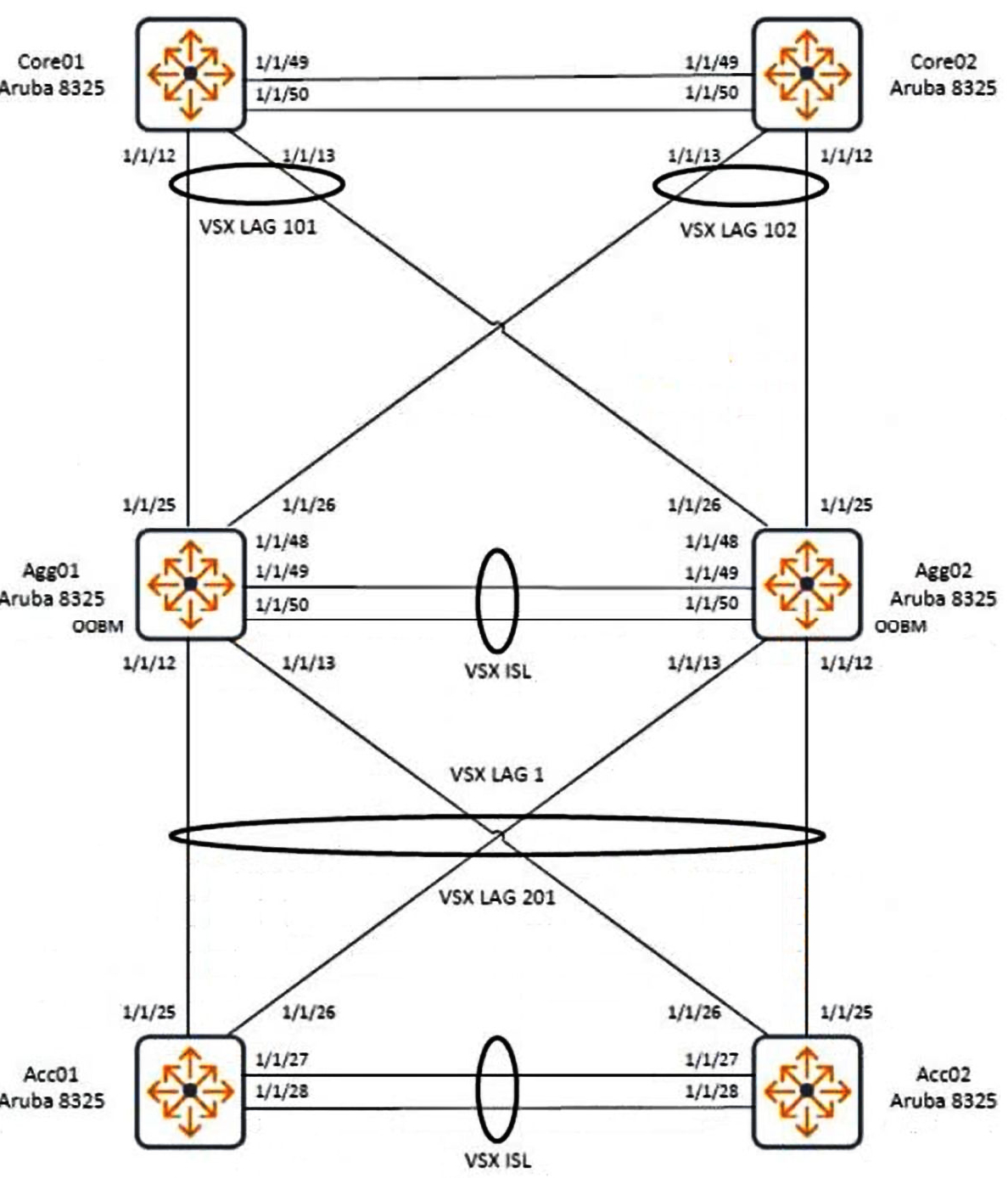

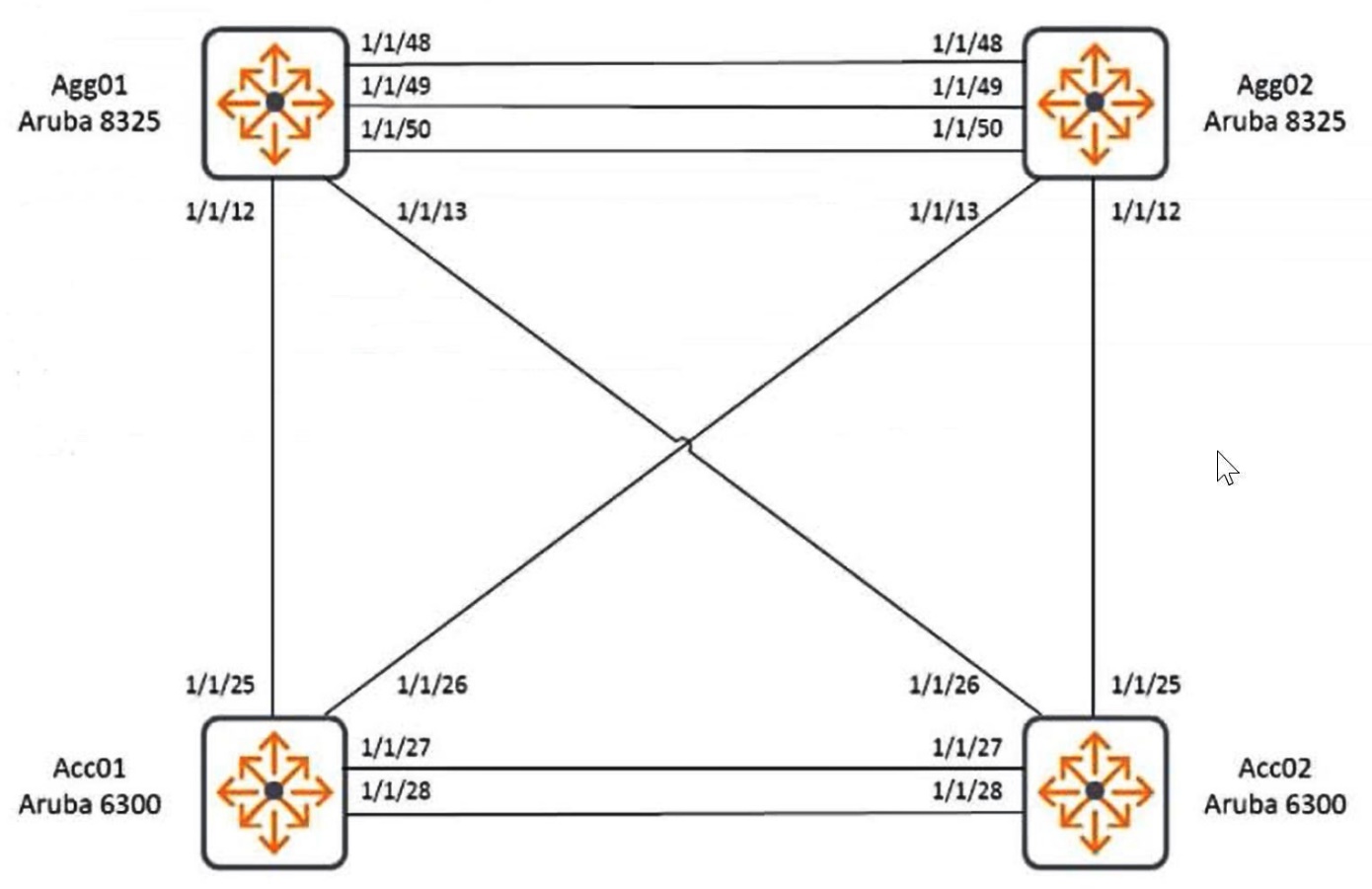

Refer to the exhibit.

Question Image

An engineer has attempted to configure two pairs of switches in the referenced configuration. It is required to implement VSX keep-alive at the aggregation layer.

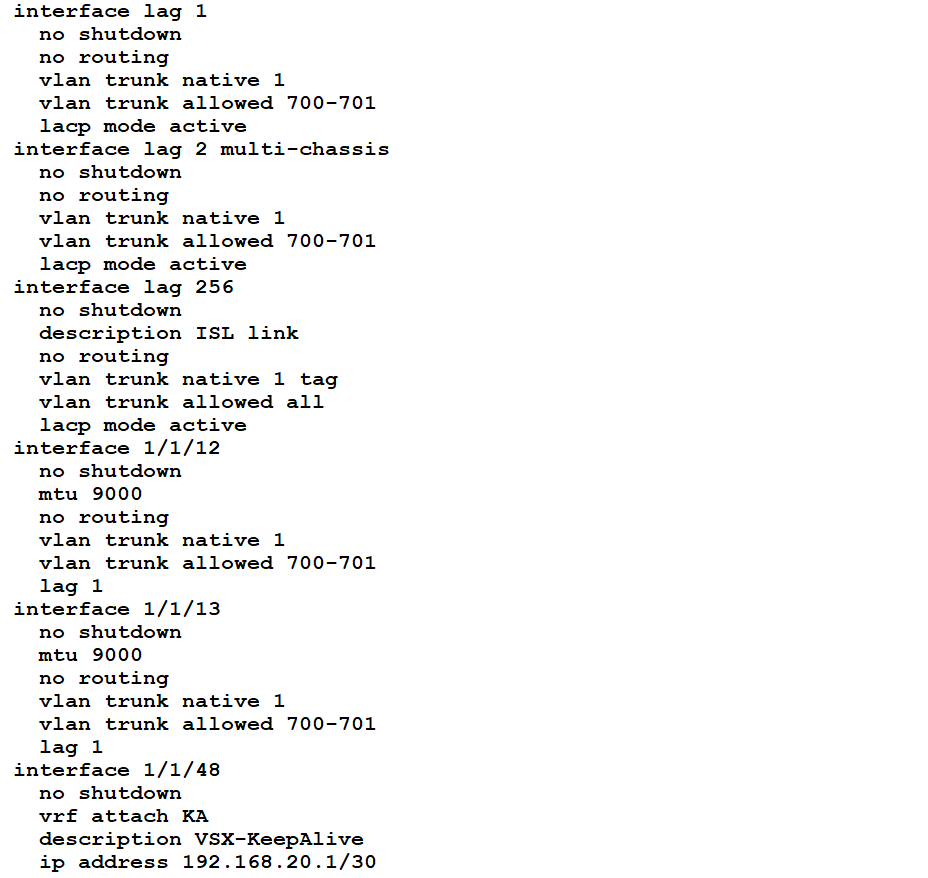

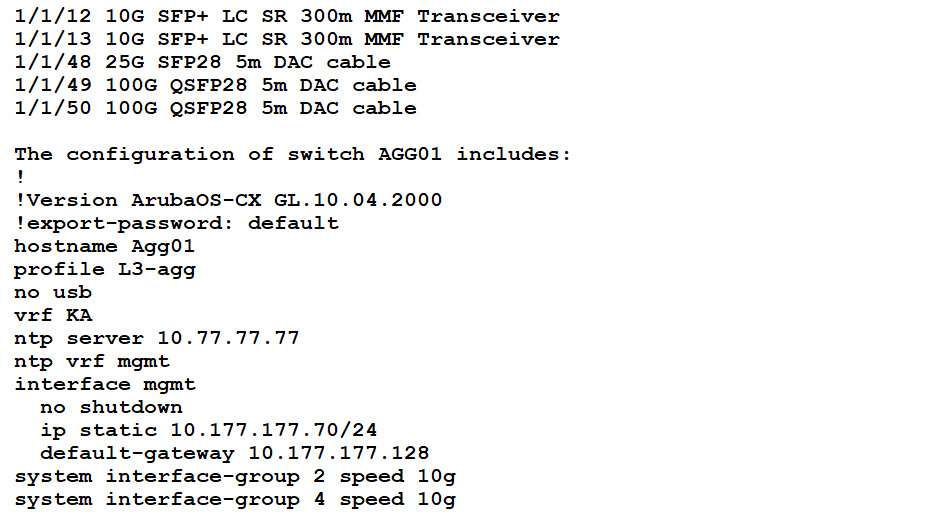

The ports of the ArubaOS-CX 8325 switches used for Agg01 and Agg02 are populated as follows:

Question Image

VSX keep-alive is not working. Which modification should you make to resolve the error condition?

A Modify the system interface-group 4 speed 10g command, change “10g” to “25g”
B Edit the vsx-sync command, adding “keep-alive”
C Edit interface 1/1/48, changing “vrf attach KA” to “vrf attach ka”
D Modify the interface lag 2 command, removing “multi-chassis”

Which statement is true regarding IP-SLA?

A ArubaOS-CX supports both SLA configuration through CLI and by agents through the NAE.
B ArubaOS-CX supports on-demand as well as forever tests.
C The default and minimum probe interval for VoIP SLA is 180 seconds.
D ArubaOS-CX supports forever tests.

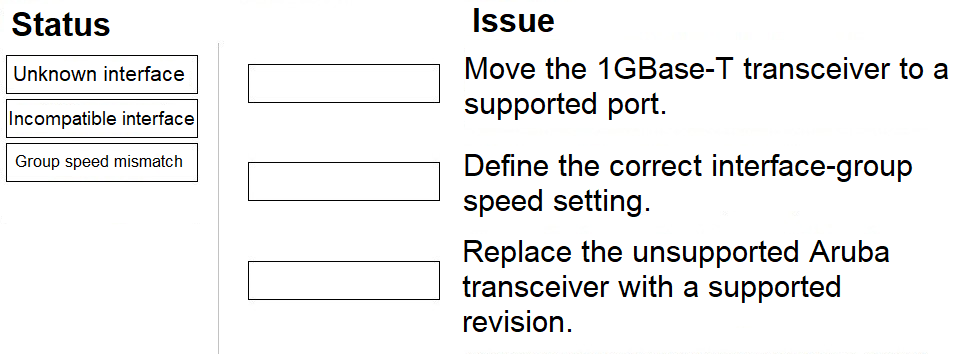

DRAG DROP -
Match the reported status to the Aruba 8325 issue. (Each option may be used once, more than once, or not at all.)

Question Image

(Scenarios may contain multiple errors, which may or may not impact the solution.)

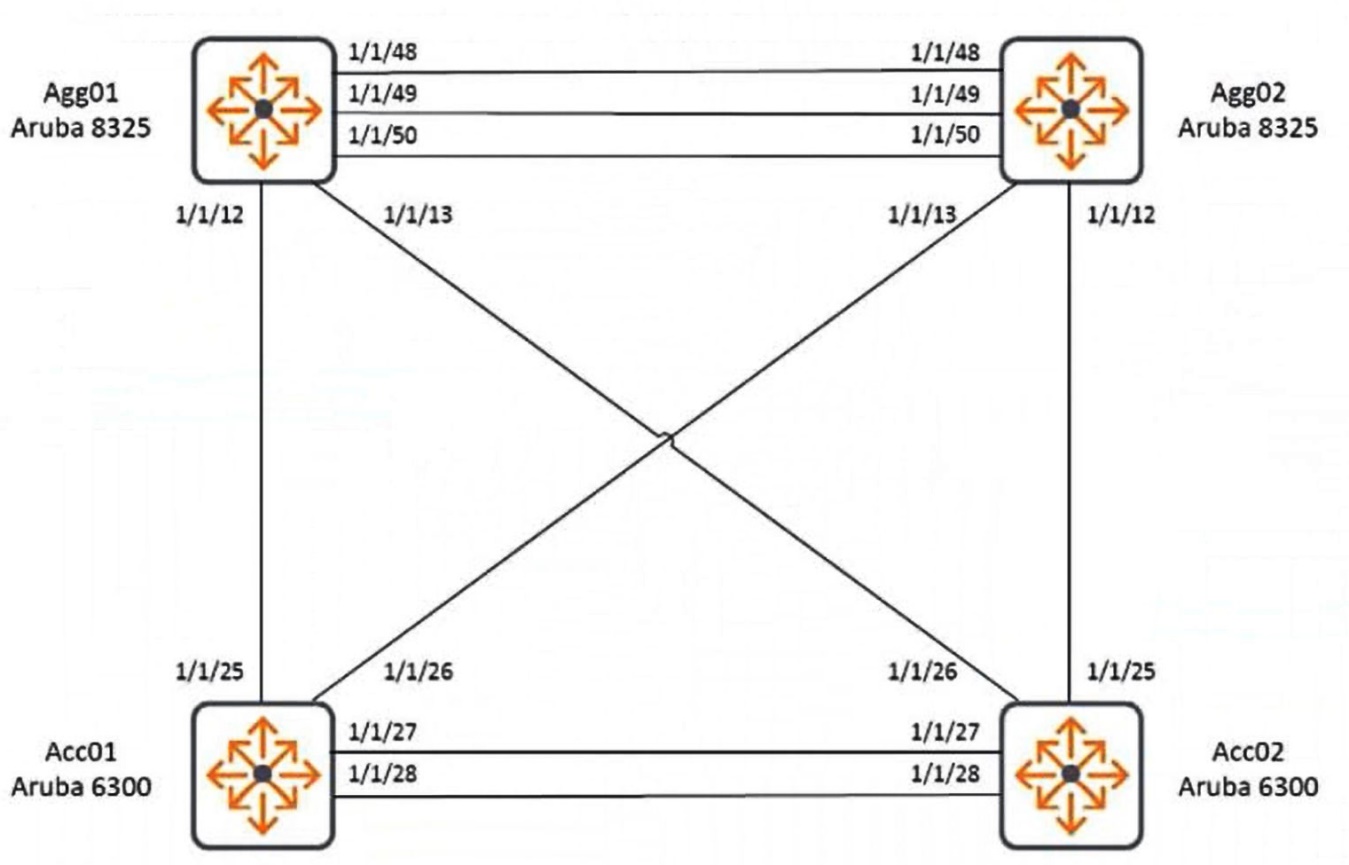

Refer to the exhibit.

Question Image

An engineer has attempted to configure two pairs of switches in the referenced configuration. It is required to implement Multi-Chassis Link Aggregation for each pair of switches.
The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows:

Question Image

There is an error message stating “incompatible interface.” Which interfaces are the cause of the error? (Choose two.)

A 1/1/48 1GBaseT 100m Cat5e Transceiver
B 1/1/50 40 G QSFP+ 15m Active Optical Cable
C 1/1/12 10GBaseT SFP+ 30m Cat6A Transceiver
D 1/1/13 10GBaseT SFP+ 30m Cat6A Transceiver
E 1/1/49 40G QSFP+ 15m Active Optical Cable

Refer to the exhibit.

Question Image

You want to protect the aggregation layer if the VSX ISL fails. Where should you place a VSX keepalive link?

A On a dedicated link created using port 1/1/48 of each aggregation switch
B On VSX LAG 101
C On the 00BM ports of both aggregation switches
D On VSX LAG 1
