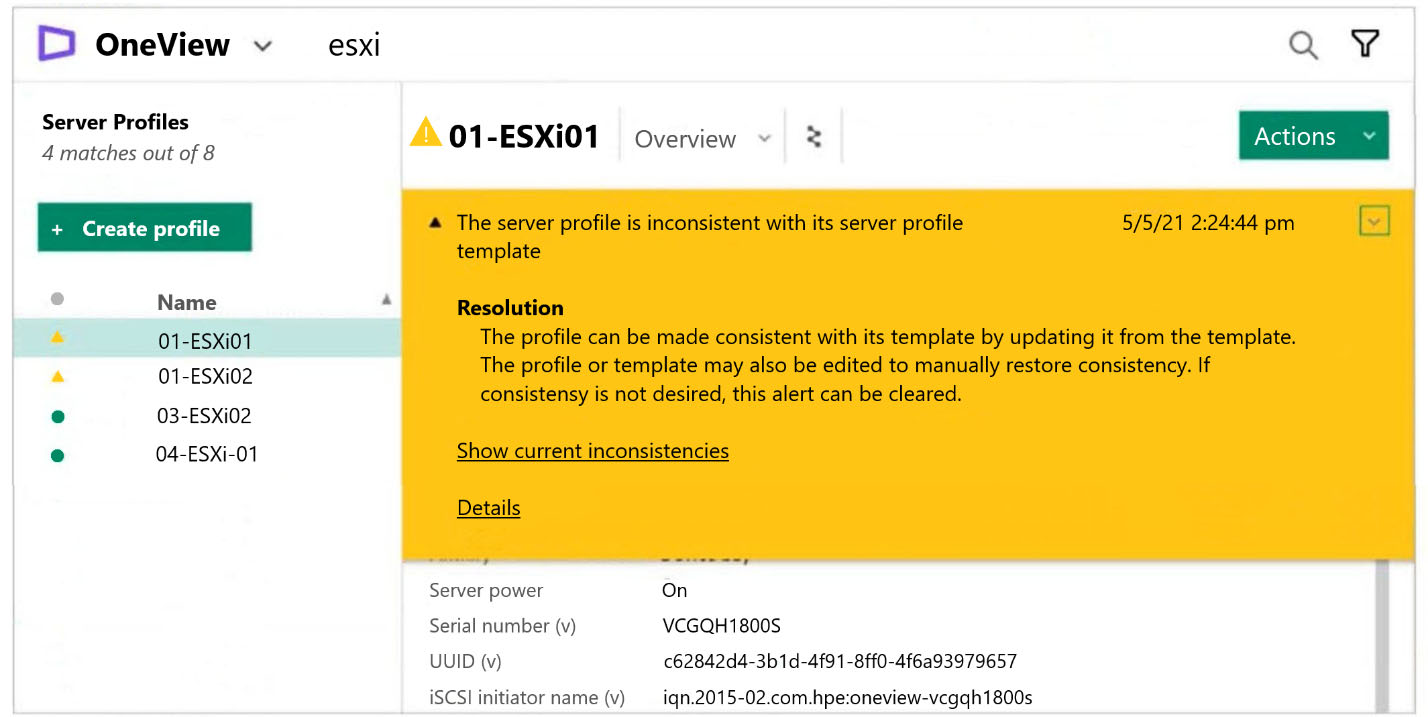

You discovered that one of the profiles is not compliant with the server profile template.
What could cause this profile to be inconsistent with the server profile template?
ANetwork connectivity for HPE Synergy Compute Module was changed outside HPE OneView
BChanges to the server profile were implemented directly on the server profile
CThe server was powered off or rebooted recently and iLO did not reconnect to HPE OneView
DHPE OneView was restored from a backup that created inconsistency with the server profile template
You want to update the firmware for only two HPE Synergy Virtual Connect SE 32Gb FC Modules of a large environment.
From which level must this procedure be initiated?
ALogical Enclosure
BLogical Interconnect
CServer Profile
DLogical Interconnect Group
Your customer asks you if it possible to perform HPE Synergy initial setup remotely.
How should you respond?
ARemote HPE Synergy setup is possible if HPE Composer 2 is used and a DHCP server is available in the management network
BHPE Synergy can be configured remotely through a secure connection to the FLM if this option was enabled in the factory
CHPE Synergy cannot be deployed remotely, as initial setup must be performed using a local console connection
DRemote HPE Synergy installation can be done only if an additional set of the services was purchased together with hardware platform
Your customer built a server profile for HPE Synergy Gen10 server and configured boot mode to Legacy BIOS.
Which feature is not available for this Compute Module?
ABoot from SAN
BSecure boot
CWorkload profile
DBIOS management
Question 6
Provision Hybrid IT infrastructure using HPE OneView
0
Question 7
Provision Hybrid IT infrastructure using HPE OneView
Question 8
Manage and report on Hybrid IT infrastructure using HPE OneView
Question 9
Manage and report on Hybrid IT infrastructure using HPE OneView
Question 10
Install and configure HPE OneView and related elements
Question 11
Monitor and troubleshoot common Hybrid IT infrastructure issues using HPE OneView
Question 12
Provision Hybrid IT infrastructure using HPE OneView
Question 13
Provision Hybrid IT infrastructure using HPE OneView
Question 14
Monitor and troubleshoot common Hybrid IT infrastructure issues using HPE OneView
Question 15
Manage and report on Hybrid IT infrastructure using HPE OneView
Question 16
Provision Hybrid IT infrastructure using HPE OneView
Question 17
Manage and report on Hybrid IT infrastructure using HPE OneView
Question 18
Install and configure HPE OneView and related elements
Question 19
Manage and report on Hybrid IT infrastructure using HPE OneView
Question 20
Provision Hybrid IT infrastructure using HPE OneView
Question 21
Monitor and troubleshoot common Hybrid IT infrastructure issues using HPE OneView
Question 22
Manage and report on Hybrid IT infrastructure using HPE OneView
Question 23
Install and configure HPE OneView and related elements
Question 24
Provision Hybrid IT infrastructure using HPE OneView
Question 25
Provision Hybrid IT infrastructure using HPE OneView
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
How can your customer implement HPE OneView so that it can be used to manage an HPE ProLiant server and HPE BladeSystem?
AAs a virtual appliance running on the supported hypervisor
BAs an application running on the server with CentOS Linux system
CAs an application running on the server with Windows system
DAs a physical appliance based on HPE ProLiant 360 Gen10
You originally configured boot mode for HPE ProLiant Gen10 server to 'Legacy BIOS' in an HPE OneView server profile and deployed an operating system. A few weeks later, you change the boot mode to the 'UEFI optimized' to leverage some features provided by this mode.
What must you do next?
Areset an iLO management processor to activate the new boot mode for the server
Breinstall an operating system, as UEFI is using different drive format than Legacy BIOS
Creset BIOS settings to the defaults so UEFI settings can be applied
Dreset BIOS settings to the defaults through the server profile after changing the boot mode
HOTSPOT -
Click the option that will allow you to update the firmware of master and satellite modules.
Hot Area:
Which statement regarding HPE OneView backup restore is true?
ADuring backup restore, users with Administrator privileges can still login to HPE OneView
BAn HPE OneView backup can be used to restore individual components like server profile
CUsers with Backup Administrator privileges can restore an HPE OneView backup
DOnly users with Infrastructure Administrator privileges can restore an HPE OneView backup
Which licenses are optional to be purchased separately for HPE Synergy?
AGlobal Dashboard licenses
BFC Upgrade licenses
CHPE OneView licenses
DVirtual Connect licenses

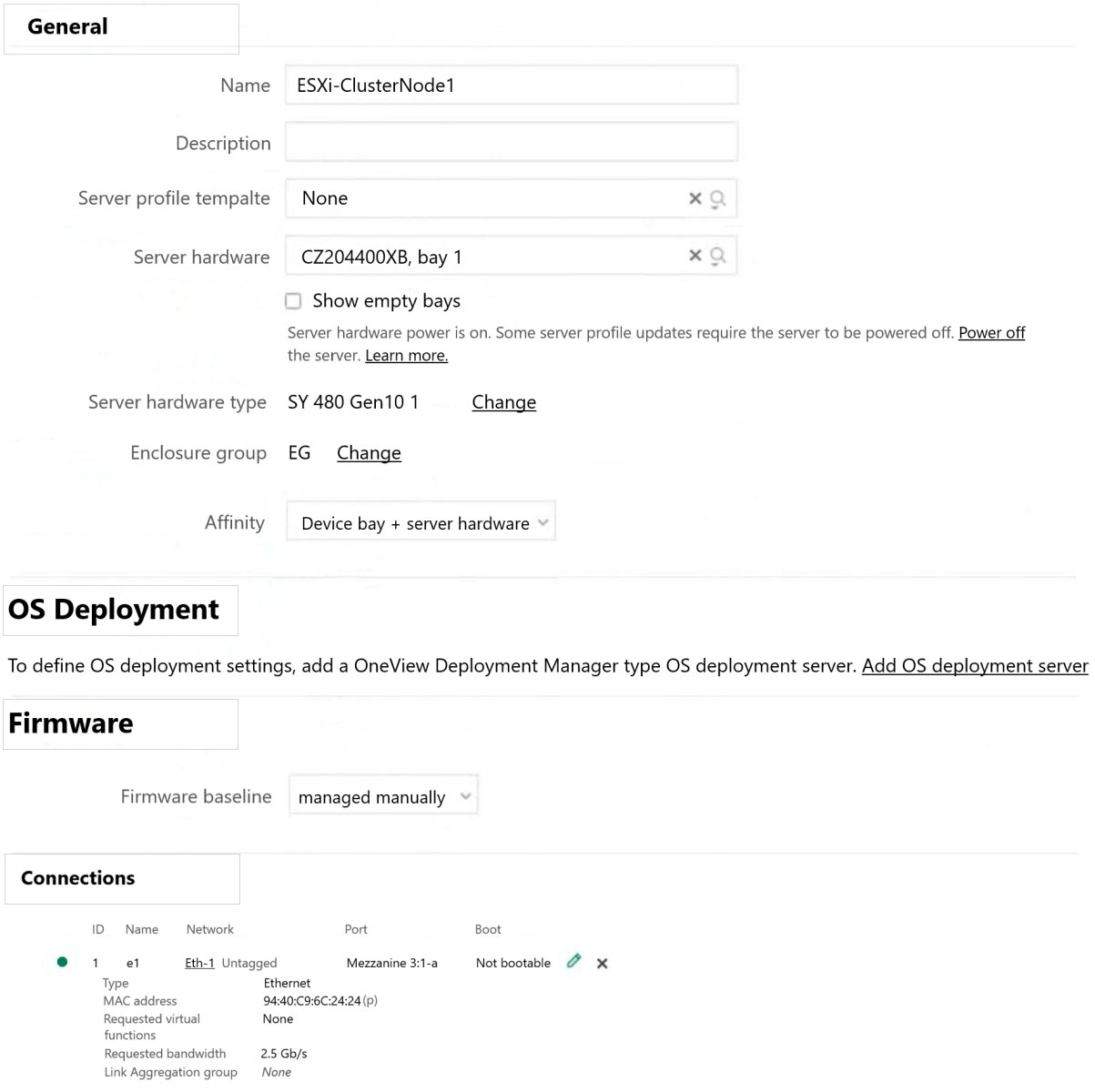

You try to add a new connection within a server profile, but an operation fails when you try to commit the changes.
What is a possible reason?
AYou tried to add additional connection above the limit
BThe server is powered on
CThe server does not have an HPE OneView license applied
DThe server is powered off
Your customer is considering HPE Synergy as a hardware platform for virtualization workload. The customer environment is very dynamic, and they often have to modify hypervisor networking.
Which resource provided by HPE should you discuss with this customer?
AHPE OneView Global Dashboard allows server profile replication and change management
BHPE OneView for VMware vCenter Server will enable host profile functionality and simplify changes
CPowerShell Library for HPE OneView allows scripted environment modification
DHPE Image Streamer provides templates which can be updated to map the hypervisor requirements
HOTSPOT -

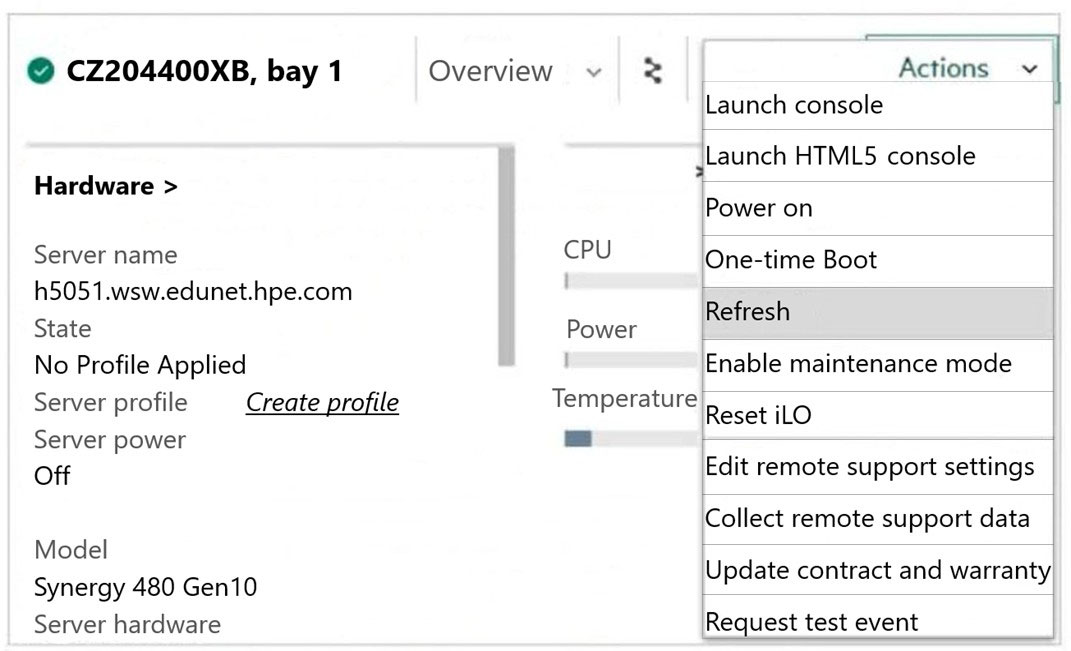

You want a server profile to be automatically applied when an HPE Synergy Compute Module is replaced.
Click the appropriate configuration option.
Hot Area:
HOTSPOT -

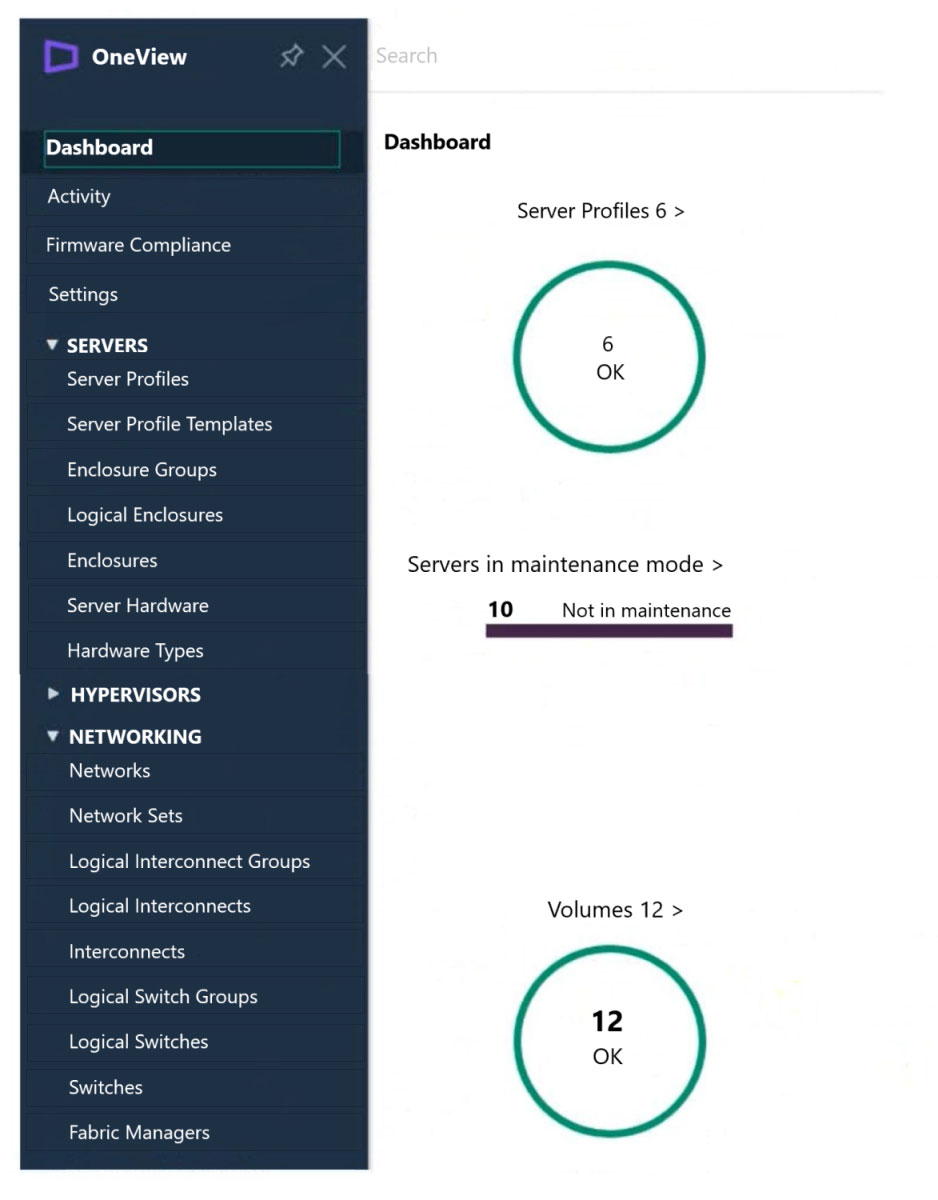

Click the option that will prevent the appliance from sending any email notifications or forwarding any SNMP traps that are related to the server hardware.
Hot Area:
You have created volumes using array management tools and imported the volumes to HPE OneView.
Which statement about these volumes is true?
AImported volumes are treated as private volumes and can be only used as boot volumes
BVolumes imported to HPE OneView is managed just like a volume created using HPE OneView
CVolumes imported to HPE OneView cannot be removed using the HPE OneView interface
DA snapshot for imported volumes can be created only by using array management tools
You are implementing an HPE Synergy solution with multiple frames in one management ring. Image Streamer is not a part of this solution.
How can an IPv4 address pool defined by the administrator be used in HPE OneView?
Ato provide static IP addresses for an operating system running on a Compute Module
Bto provide static IP addresses for Logical Interconnects and Logical Enclosures
Cto provide static IP addresses to iLOs and interconnect modules if applicable
Dto provide static IP addresses for storage systems managed in HPE OneView

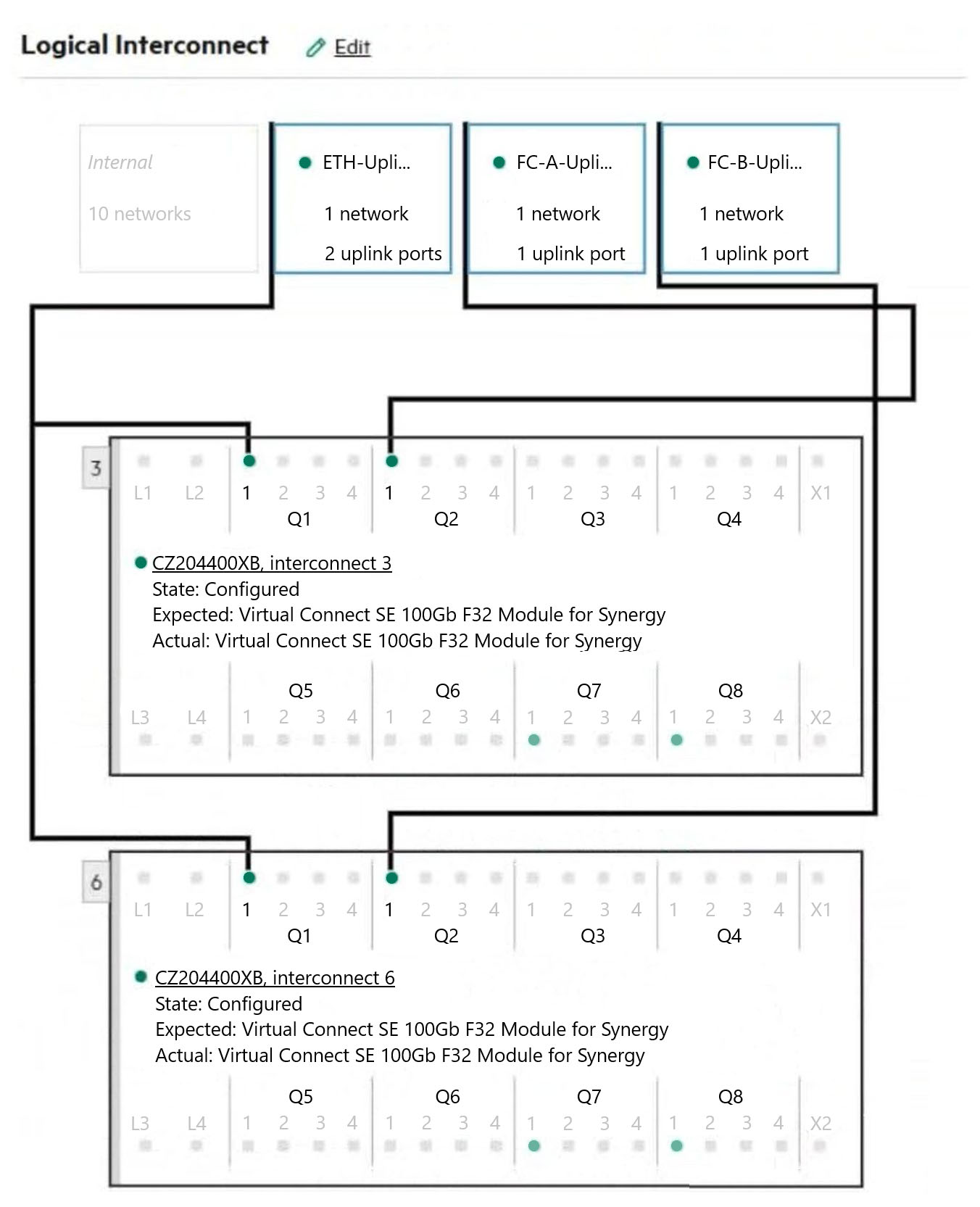

Refer to the exhibit.
Which statement about the logical interconnect shown is true?
AThe maximum supported number of the internal networks for logical interconnect is configured
BFor FC uplink sets, an additional uplink from second module should be added for redundancy
CAdditional uplink ports can be added to ETH-Uplink to increase available bandwidth
DFC uplinks are not supported and will be converted to FCoE or RoCE uplinks
What is required to add remote frame link topology to HPE OneView?
AThe IP address assigned to HPE Composer installed in a remote site must be registered in a primary site
BMulti-site licenses must be added to HPE OneView and activate for all available HPE Synergy frames
CThe HPE OneView certificate from the primary site must be added to HPE OneView in the remote site
DManagement ports of the remote frame link topology must be connected to the management LAN
Your customer has an environment with five HPE Synergy Composers and 15 HPE OneView appliances managing servers that run VMware. The customer is having a hard time managing their servers.
What can the customer do to simplify management of this complex environment?
Adeploy HPE OneView for VMware vCenter Server
Bdeploy HPE OneView Global Dashboard
Cuse an Ansible playbook
Dintegrate all HPE OneView appliances and HPE Composers with Active Directory
A customer has to deploy 21 HPE Synergy Compute Modules in a boot from SAN setup.
How this task can be simplified while keeping the profile consistent?
ABoot volumes can be created on demand and defined in the server profile template
BAn existing volume can be replicated automatically when creating a server profile
CA single SAN volume can be created and utilized by all ׀׀ E Synergy Compute Modules
DBoot volumes can be prepared in advance and later presented as shared volumes to the Compute Modules

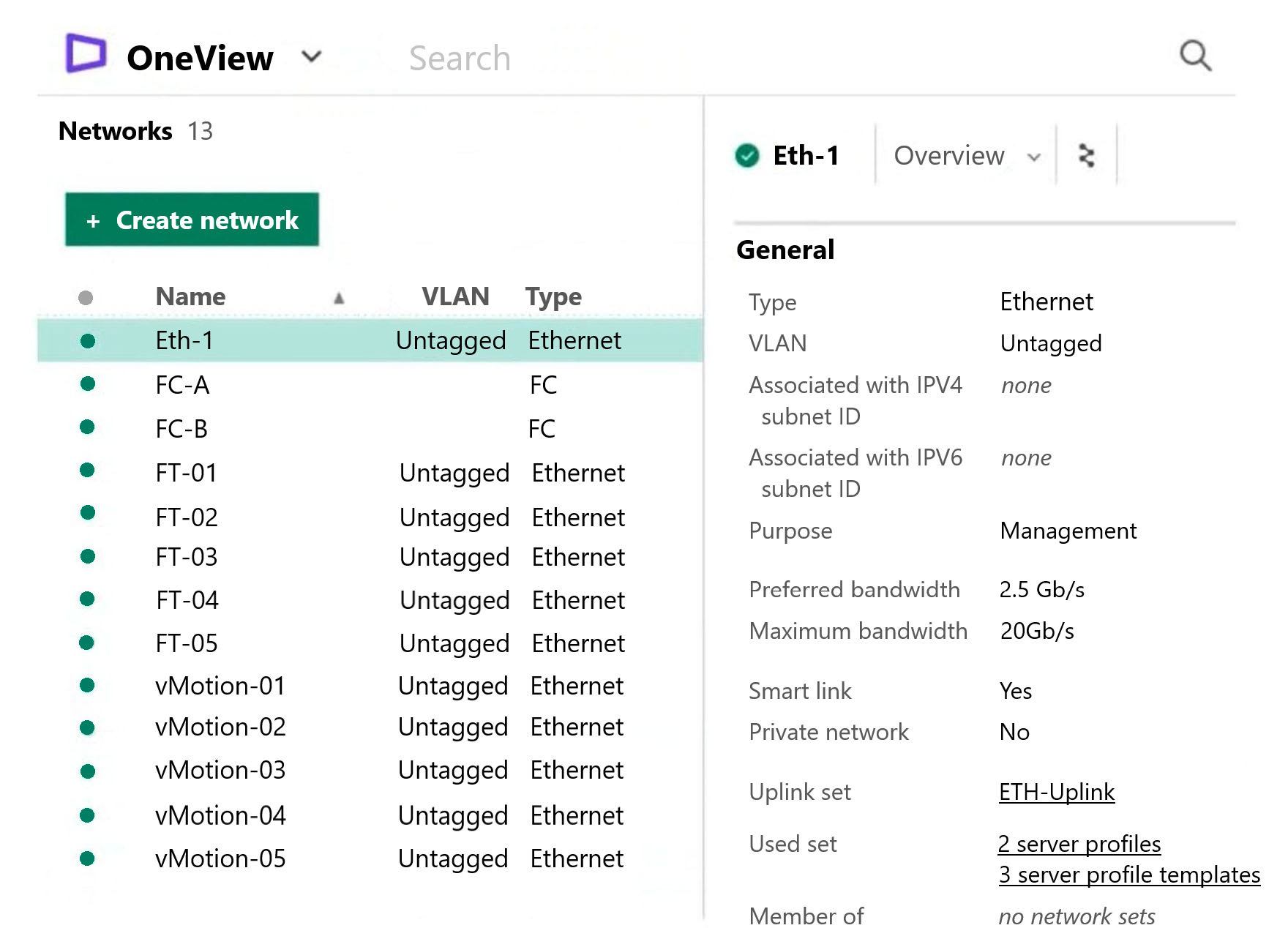

Refer to the exhibit.
Your customer created multiple networks in HPE OneView, but only Eth-1 is available to be used within a server profile.
What is a likely cause of this situation?
AThe other networks are not configured with the required Smart Link parameter
BThe other networks are configured with a purpose other than General or Management
CThe other networks have 'Private Network' selected, which hides them from Compute Modules
DThe other networks are not added to the Logical Interconnect Group configuration

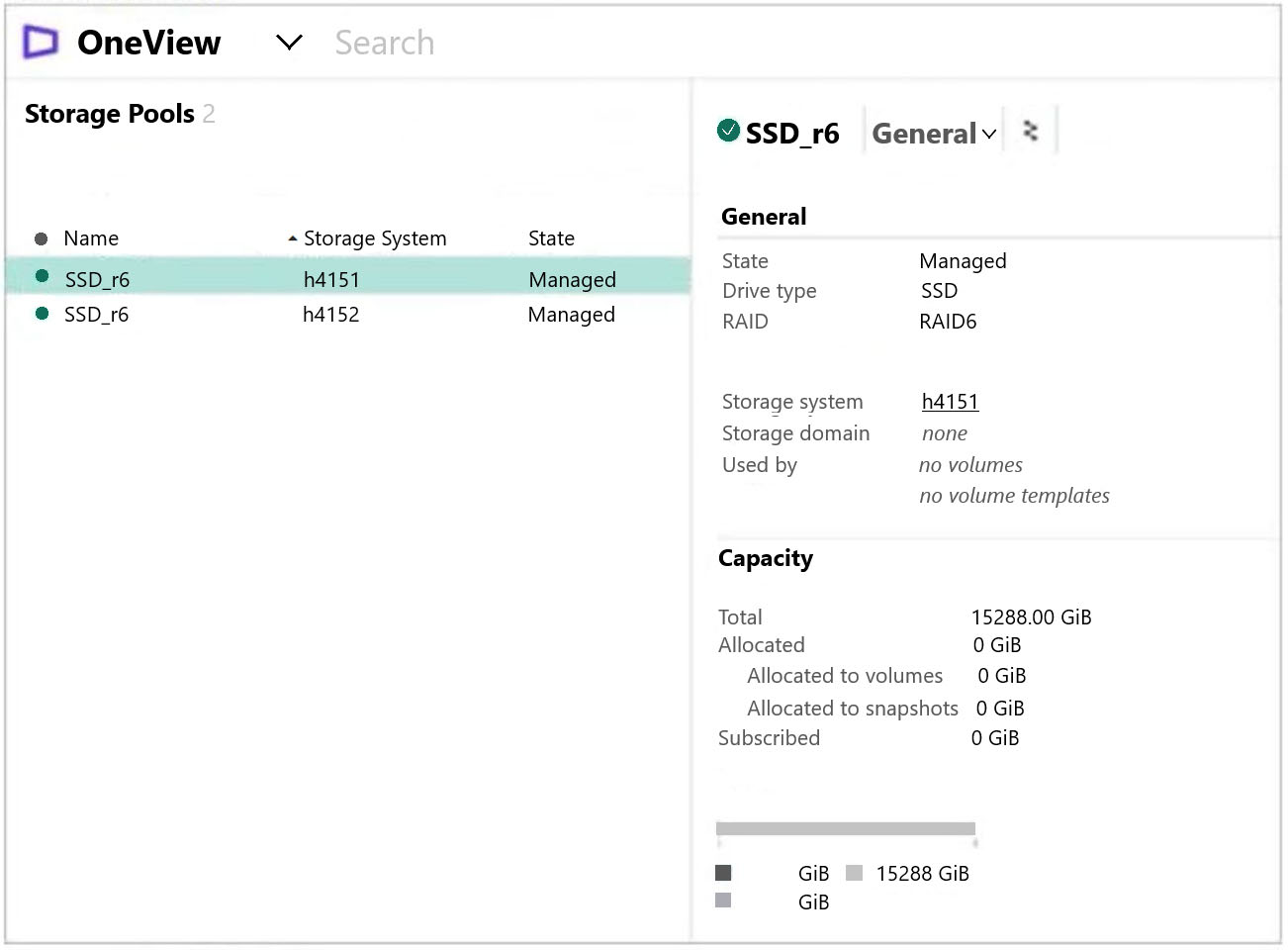

Refer to the exhibit.
Which statement about the storage pools shown is true?
AVolumes created on the first storage pool cannot use data reduction technologies
BBoth storage pools are in a managed state and can be used for volume provisioning
CHPE OneView can be used to configure volume replication between these pools
DBoth storage pools have a license applied that enables management of these pools
Which locations are supported for HPE OneView remote scheduled backup? (Choose two.)
ASCP
BHTTPS
CSFTP
DHTTP
EFTP
What event occurs on iLO when an HPE ProLiant server is added to HPE OneView?
AIPMI credentials are configured for the iLO
BREST API plugin is enabled for iLO
CActive Directory configuration is performed on iLO
DSSO certificate is added to the iLO
HOTSPOT -

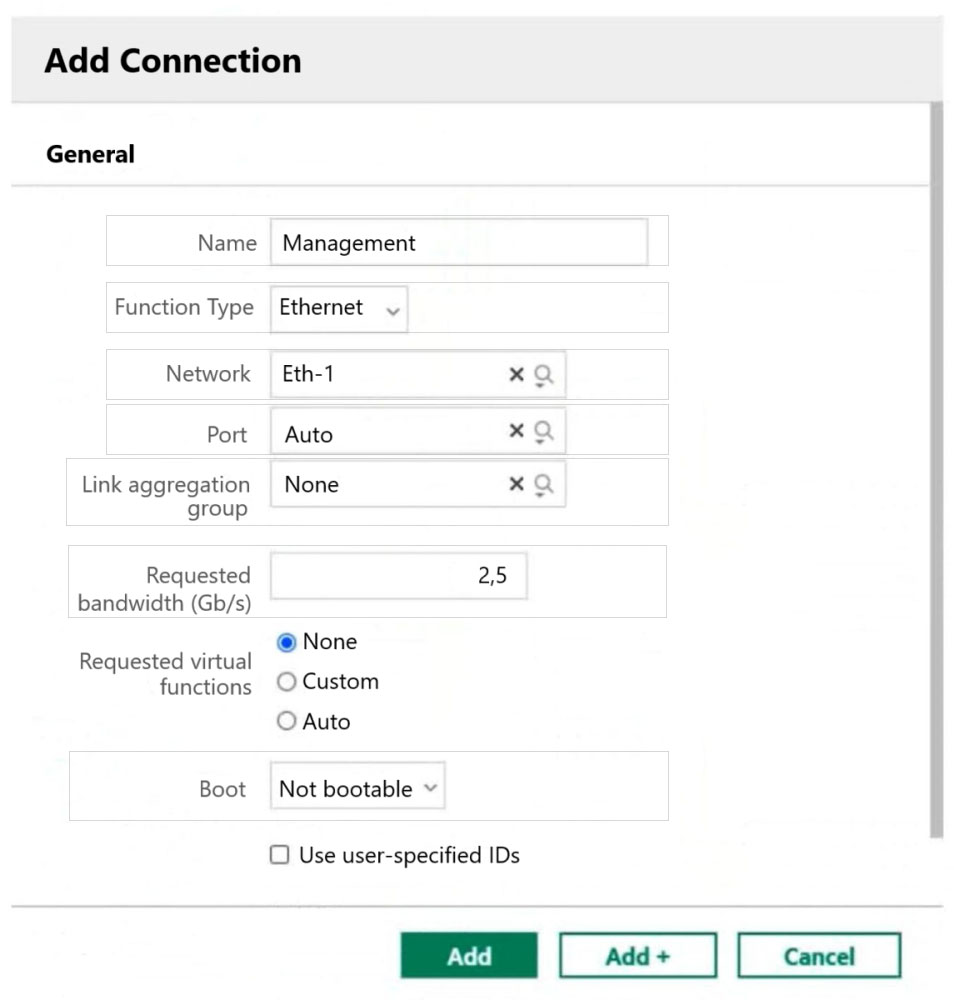

Click option that will allow you to select a FlexNIC function for the specified connection.
Hot Area:
