NSE6-FSW-7-2 by Fortinet - Page 1 | ExamCademy

Mode Selection

Sort:

Question 1

Question 2

Question 3

Question 4

Question 5

Question 6

Question 7

That's the end of the Preview

Create a free account to unlock all questions for this exam.

Log In / Sign Up

Page 1 of 2 • Questions 1-25 of 32

1 2

→

Know a question that should be here? Contribute to this exam

Which LLDP-MED Type-Length-Values does FortiSwitch collect from endpoints to track network devices and determine their characteristics?

A Network policy
B Power management
C Location
D Inventory management

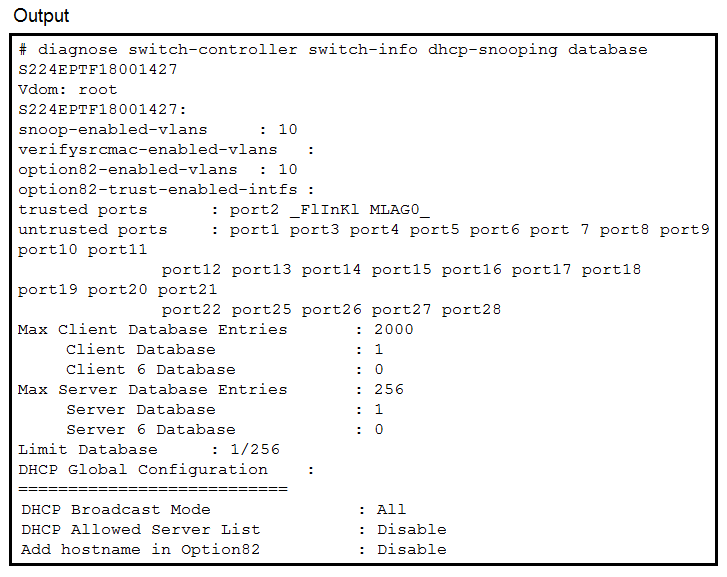

Refer to the exhibit -

Question Image

What two conclusions can be made regarding DHCP snooping configuration? (Choose two.)

A Maximum value to accept clients DHCP request is configured as per DHCP server range.
B Fortiswitch is configured to trust OHCP replies coming on FortLink interface.
C DHCP clients that are trusted by DHCP snooping configured is only one.
D Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.

What are two reasons why time synchronization between FortiGate and its managed FortiSwitch is critical in switch management? (Choose two.)

A FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.
B FortiSwitch will not be able to become an NTP server for downstream devices.
C FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.
D FortiSwitch will not allow other FortiSwitch devices in the chain be discovered by FortiGate.

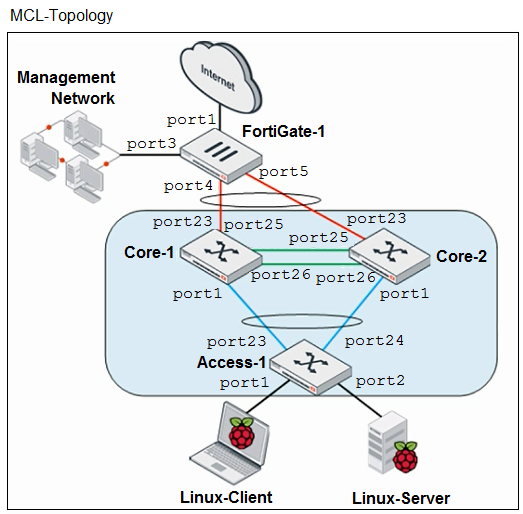

Refer to the exhibit.

Question Image

Core-1 and Access-1 are managed and authorized by FortiGate-1, which uses port4 as the FortLink interface. After FortiGate authorizes and manages Core-2, port1 status becomes STP discarding.
Why is port1 in the discarding state?

A port1 on Core-2 is discarding only management traffic.
B Core-1 and Core-2 do not have MCLAG configuration.
C Access-1 is the root bridge and can only have one root port.
D Core-2 has the lowest bridge priority.

Which interfaces on FortiSwitch send out FortiLink discovery frames by default in order to detect a FortiGate with an enabled FortiLink interface?

A All ports have auto-discovery enabled by default
B No ports are enabled by default for auto-discovery. This must be configured under config switch interface.
C The ports with auto-discovery enabled by default are dependent upon the FortiSwitch model.
D The last four switch ports on FortiSwitch have auto-discovery by default.

What are two ways in which automatic MAC address quarantine works on FortiSwitch? (Choose two.)

A FortiSwitch supports only by VLAN quarantine mode.
B FortiGate applies the quarantine-related configuration only on FortiGate.
C FortiAnalyzer with a threat detection services license is required.
D MAC address quarantine can be enabled through the FortiGate CLI only.

What feature can network administrators use to segment network operations and the administration of managed FortiSwitch devices on FortiGate?

A FortiGate multi-tenancy
B Multi-chassis links aggregation trunk
C FortiGate clustering protocol
D FortiLink split interface
