Two OS10 switches reside within a VLT domain with statically configured primary-priorities. The current primary peer, switch OS10-A, has a priority of 100, while the secondary peer, OS10-B, has a priority of 200.
If OS10-A reboots and comes back online, what roles will the VLT peers be assigned?
AOS10-A will be primary and OS10-B will be secondary.
BOS10-A will be secondary and OS10-B will be master.
COS10-A will be standby and OS10-B will be primary.
DOS10-A will be secondary and OS10-B will be primary.
Which field in an IP header is used for QoS marking?
AToS
BSA
CCoS
DDA
What type of network in a Data Center flattens the core and aggregation layers into a single tier?
ALeaf
BLeaf-spine
CSpine
DTRILL
At which layer does LLDP operate?
A1
B3
C2
D4
Question 6
Networks – The Basics
0
Question 7
Layer-3 Technologies and Protocols
Question 8
Layer-2 Technologies and Protocols
Question 9
Layer-3 Technologies and Protocols
Question 10
Layer-2 Technologies and Protocols
Question 11
Networks – The Basics
Question 12
Layer-3 Technologies and Protocols
Question 13
Networks – The Basics
Question 14
Data Center Technologies and Protocols
Question 15
Layer-2 Technologies and Protocols
Question 16
Layer-2 Technologies and Protocols
Question 17
Layer-2 Technologies and Protocols
Question 18
Layer-2 Technologies and Protocols
Question 19
Networks – The Basics
Question 20
Layer-3 Technologies and Protocols
Question 21
Layer-2 Technologies and Protocols
Question 22
Layer-3 Technologies and Protocols
Question 23
Layer-2 Technologies and Protocols
Question 24
Networks – The Basics
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
In the OS10 CLI what does Ctrl+A do?
ADeletes all the text before the cursor.
BMoves the cursor to the start of the command line.
CMoves the cursor to the end of the command line.
DDeletes the word before the cursor.
What benefit does VRRP version 3 provide over VRRP version 2 in OS10?
AProvides preemption capability.
BProvides MD5 authentication.
CAllows subsecond timers.
DAllows multiple masters in the topology.
From which range can a network administrator choose when setting the RSTP priority value?
A1-6400
B0-61440
C0-614400
D1-64
When configuring VRRP in tandem with VLT, what is the default VRRP mode?
Aactive-active
Bprimary-standby
Cactive-standby
Dmaster-backup
A network administrator wants servers to avoid spanning-tree convergence immediately after connecting to a leaf switch. Which spanning-tree feature would allow this?
Aspanning-tree vlan priority 0
Bspanning-tree port-type disabled
Cspanning-tree port-priority 0
Dspanning-tree port-type edge
When installing OS10 on a switch from a USB drive, what format is used for the file system?
AHFS+
BFAT32
CNTFS
DHFS
What is a feature of virtual routing and forwarding (VRF)?
AProvides trunks that can be grouped to provide optimum speed.
BAllows multiple user groups to co-exist within the same router at the same time.
CAllows different physical switches to operate as one.
DAllows multiple instances of routing tables to co-exist within the same router at the same time.
When implementing QoS on a 10Gb connection, 6Gb is required by the customer. What QoS level best fits the requirement while keeping resource use to a minimum?
ADifferentiated service
BGuaranteed service
CFIFO
DBest-effort service
An administrator is implementing VLT in OS10. What type of port-channel must they configure for the VLTi?
AAdministrator needs to configure a LACP Port-Channel.
BTrunking and one (1) native VLAN need to be defined on the port-channel.
CNone, a port-channel is created automatically during VLT discovery.
DAdministrator needs to configure a static Port-Channel.
Which configuration supports tagged frames on VLAN 20 and untagged frames on VLAN 5?
Which command shows whether a LAG protocol is static or dynamic on a Dell EMC Networking OS10 switch?
Ashow lacp neighbor
Bshow running-configuration lacp
Cshow interface port-channel summary
Dshow port-channel summary
What is the valid range of VLAN IDs for Dell EMC Networking OS10 switches?
A1-4096
B1-4093
C0-4092
D0-4095
What are the correct steps to configure a static LAG on a Dell Networking OS10 switch?
Ainterface port-channel 4 channel-group 4 mode passive interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on
Binterface port-channel 4 channel-group 4 mode on interface range ethernet 1/1/14-1/1/15 channel-group 4 mode passive
Cinterface port-channel 4 no shutdown interface range ethernet 1/1/14-1/1/15 channel-group 4 mode on
Dinterface port-channel 4 no shutdown interface range ethernet 1/1/14-1/1/15 channel-group 4 mode active
The network administrator wants to configure RADIUS authentication for VTY access, and for console access to use the local configuration. Which two commands should be used to achieve this goal?
Aaaa authentication login vty group radius aaa authentication login console local
Baaa authentication login default group radius aaa authentication login console local
Caaa authentication login vty radius aaa authentication login console group local
Daaa authentication login default group radius aaa authentication login console group local

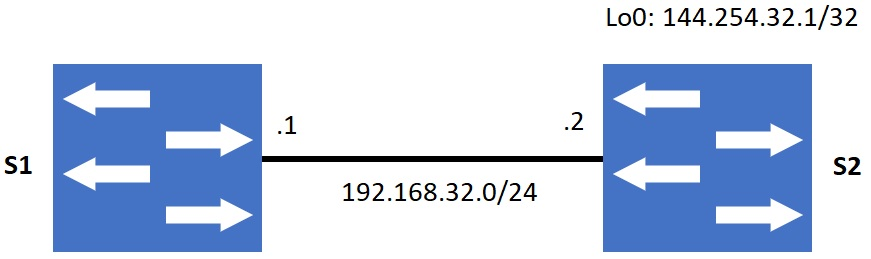

Refer to the exhibit.
Which configuration will allow S1 to ping S2's Lo0 address?
AS1(config-router)# ip route 144.254.32.1 192.168.32.2/32
BS1(config-router)# ip route 192.168.32.2 144.254.32.1/32
CS1(config)# ip route 144.254.32.1/32 192.168.32.2
DS1(config)# ip route 192.168.32.2 144.254.32.1/32
To which IEEE standard are dynamic LAGs compliant on Dell EMC Networking OS10 switches?
A802.3af
B802.3ad
C802.3ac
D802.3ae
When configuring a vrf instance for the management interface that has been in use, what step must be done first to configure it?
AConfigure a management route
BRemove the default route
CRemove all configured settings
DConfigure an IP Address
A network administrator is designing a Layer 2 topology and requires separate spanning-tree roots to avoid having a given port blocked for all instances. Which spanning-tree protocols will meet this need?
ASTP & RSTP
BRSTP-PV & MSTP
CSTP & RSTP-PV
DRSTP & MSTP
Which best describes traffic flow in a campus network environment?
