An administrator at host address 10.0.1.11 is trying to gain access to Cisco Adaptive Security Device Manager via a Cisco ASA Security Appliance inside interface at IP address 10.0.1.1. Which two commands are required on a security appliance to enable Cisco ASDM access? (Choose two.)
You have just configured HSRP and need to determine which router is active. Which command should you enter?
AShow ip hsrp active
BShow standby active
CShow standby
DShow active
What do radio-wave radiation patterns allow you to determine when you are implementing wireless networks?
ASize of the coverage area
BWhich antenna is being used
CTemperature of the coverage area
DShape of the coverage area
Which command assigns a cost value of 17 to a switch port?
ASpanning-tree interface fastethernet 5/8 17
BSpanning-tress portcost 17
CSpanning-tree port cost 17
DSpanning-tree cost 17}
Which command displays the routing information that will be used to move data between VLANs on a router on a stick?
ARouter# show ip protocols
BRouter# show ip route
CRouter# show vlan[vlan_ID]
DRouter# show vlan route
What were two primary design purpose for ISRs? (Choose two)
ATo provide a centralized threat database for IPS sensors
BTo bring IP technology,voice mail,email,and firewall services to the end user
CTo implement and to integrate fully network services such as security,WAN routing,and Ethernet switching
DTo offer Fast Ethernet and 10 Gigabit Ethernet as a high-speed routing platform
ETo be a next-generation,high-performance routing platform
FTo provide all security-management functions in one high-performance device
What are two areas in which PoE can be applied? (Choose two)
Abuilding management
Bdata center management
Cretail video kiosks
Ddigital telephony
Evirtual networks
Which identify credential is used most commonly to secure network data?
AVPN
BPIN
CID card
DPassword
You are troubleshooting OSPF neighbor establishment problems, which are occurring over Frame Relay interfaces that use the default OSPF network type. What should you verify in the router configuration?
Athe ip ospf network point-to point statement under the Frame Relay interface
Bthe ip ospf priority statement on the Frame Relay interface on the designated router
Cthe neighbor statements on the Frame Relay interface
Dthe frame-relay map statement on the Frame Relay interface
What are two advantages of using an intermediate distribution frame? (Choose two)
APower over Ethernet capability
Bhigher RU density
Creduced space
Dhot-swappable hard drives
Ereduced cabling

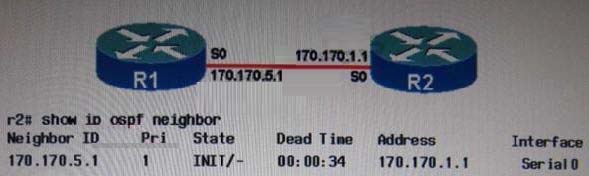

Refer to the exhibit.
R2 is always in the init state. Which two statements are correct? (Choose two)
AR2 is seeing hello packets from R1 B. R2 is not seeing hello packets from R1
BThe exchange of data between R1 and R2 is occurring because each is sending hello packets
CTwo-way communication has not been established between R1 and R2 because R2 is not seeing its router ID in the hello packets that it is receiving from R1
DR2 has an access list defined for S0 that is blocking an OSPF multicast IP address of 224.0.0.5
Which type of antenna would be best used in a classroom environment?
Aomnidirectional
BYagi
Cpatch
Dparabolic
Which steps must be taken when preparing Cisco ASDM for use?
Aconnect the PC to the security,set up the security appliance,and use the console to connect to PIX
BSet up security appliance,connect to the security appliance,and configure the PC for DHCP
CConfigure the PC,set up the security appliance,and ensure that the PC and security appliance are on the same subnet
DSet up security appliance,connect the PC to the security appliance,and ensure that the PC is on the same subnet as DHCP
The Cisco SA 500 Series Security Appliances are built specifically for businesses with less than 100 employees. What are three important benefits of this device?
(Choose three)
Abusiness-grade firewall
Bpremium support via SMARTnet
Csite-to-site VPN for remote offices
DCisco IOS software-based
Eemail security
FXML support
What are two advantages of implementing a router on a stick? (Choose two)
Aoffers a single traffic path to alleviate congestion
Buses a common network topology
Cprovides communications between VLANs on remote switches
Dallows multilayer switches to perform routing
Eoffers the highest rate of packets-per-second routing performance
Fallows for single point of failure for easy management and upgrade
Which three are integrated Smart Applications included with the Cisco Unified Communications 500 series? (Choose three)
ASmart Business Suite
BConnected Data Protector
CTimecard View
DCisco Unified CallConnector
ECisco WebEx PhoneConnect
FVoiceView Express

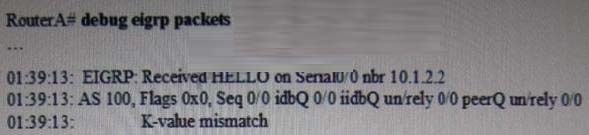

Refer to the exhibit.
A network administrator is troubleshooting an EIGRP connection between Router A and Router B, Given the debug output on Router A, which two statements are true? (Choose two)
ARouter A received a hello packet with mismatched autonomous system numbers
BRouter A received a hello packet with mismatching hello timers
CRouter A received a hello packet with mismatched authentication parameters
DRouter A received a hello packet with mismatched metric-calculation mechanisms
ERouter A will form an adjacency with Router B
FRouter A will not form an adjacency with Router B
What should you do first when selecting the appropriate antenna for a wireless deployment?
ADetermine the shape of the area to be covered
BDetermine the frequency of the radio
CDetermine the location of the access point
DDetermine the direction of the coverage
Which authentication uses biometrics?
Apassword
Bvoice
Ctokens
Dcertificates
What does understanding the radiation patterns of different antennas types help you to determine when providing wireless coverage in an office building?
Athe exact number of access points that are needed
Bthe type of antenna to cover a specific area
Cthe size of an area that will be covered
Dthe location of the access points
Which combination of ports is available on the Cisco SPA 8800 voice gateway?
AOnestation port and one trunk port (1xFXS and 1xFXO)
BTwostation ports (2xFXS)
CFourstation ports and four trunk ports (4xFXS and 4xFXO)
DEightstation ports (8xFXS)
Which three elements can you review when examining the traffic across a network? (Choose three)
AVPN connection
Bpacket flows
CACLs
Dstates
Econnections
Ffirewalls
How do the Cisco ISR G2 platforms enable the next phase of branch-office evolution?
AThey allow future enabling of high-bandwidth video and high-availability,through multi-core CPUs and support for high-capacity DSPs.
BThey integrate multiple processors in one unit to enable rich-media collaboration and virtualization
CThey feature wire-speed Fast Ethernet for high performance
DThey offer services through a robust Layer 2 and Layer 3 fixed and stackable switch
What are two differences between medium and large campus network designs? (Choose two)
Anumber of supported devices
Btypes of supported devices
Carchitecture
Dscalability
Enetworking design
Which security audit mode allows you to make all recommended security-related configuration changes automatically?
Preview
