Cisco's own Meraki device-reporting documentation maps each protocol to a distinct role: syslog is used to export detailed event data including Event Log, IDS Alerts, URLs, and Flows, whereas SNMP is a polling/trap mechanism for device status and proactive alerts, and the Dashboard API is what gathers organization-wide information and enables automation. The requirement uniquely served by syslog rather than SNMP is capturing flow and client-connectivity data, because SNMP does not export flow records. Option B (proactive alerts) describes SNMP traps, and options A and C (automation, organization-wide collection) describe the API, so all three are wrong. Therefore both the automated key (B) and the blind solver (C) are incorrect and the answer is D.

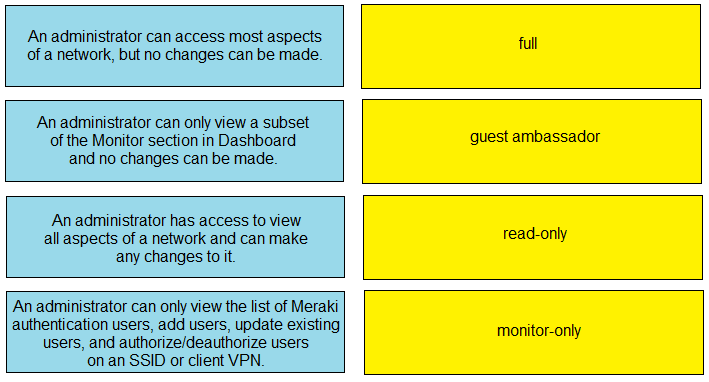

Cisco Meraki Dashboard organization administrators can be assigned Full access, which grants complete administrative access to all networks and organization-wide settings, or Read-only access, which permits viewing most network and organization-wide settings without making changes. Monitor-only is a network-level permission type.

For a high-density deployment, Cisco Meraki recommends planning for about 25 clients per radio and uses the 5 GHz client count for the 30/70 client-distribution calculation. With 70 concurrent 5 GHz clients, 70 ÷ 25 = 2.8, which rounds to three APs. Cisco Meraki High Density Wi-Fi Deployments

Android Enterprise enrollment using a Work Profile creates a managed, encrypted work container that separates corporate applications and data from personal applications and data on BYOD devices. Systems Manager manages the work profile without controlling the user’s personal content.

Cisco Meraki Dashboard event-log retention is limited. Sending network event logs to a configured syslog server provides external, long-term storage and is Cisco Meraki’s recommended practice for retaining historical logs beyond Dashboard limits.

A dual-uplink hub establishes two tunnels to each single-uplink spoke, for 100 tunnels across 50 spokes. Hubs also form a full mesh with one another; two dual-uplink hubs establish four inter-hub tunnels. Each hub therefore supports 104 tunnels in total.

Motion-based retention removes older video segments without detected motion while retaining footage of interest, which increases the effective retention period. Scheduled recording stores historical video only during the configured periods, reducing storage consumption and extending the time span covered by available recordings.

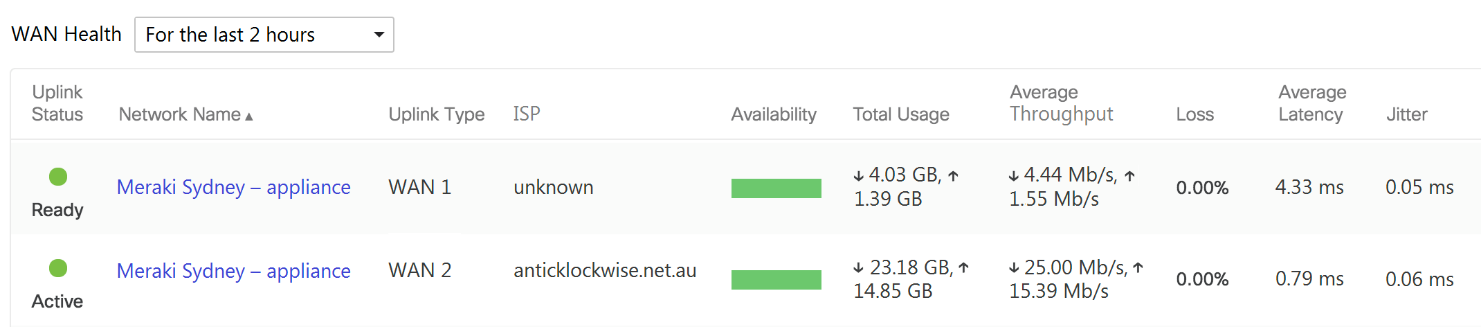

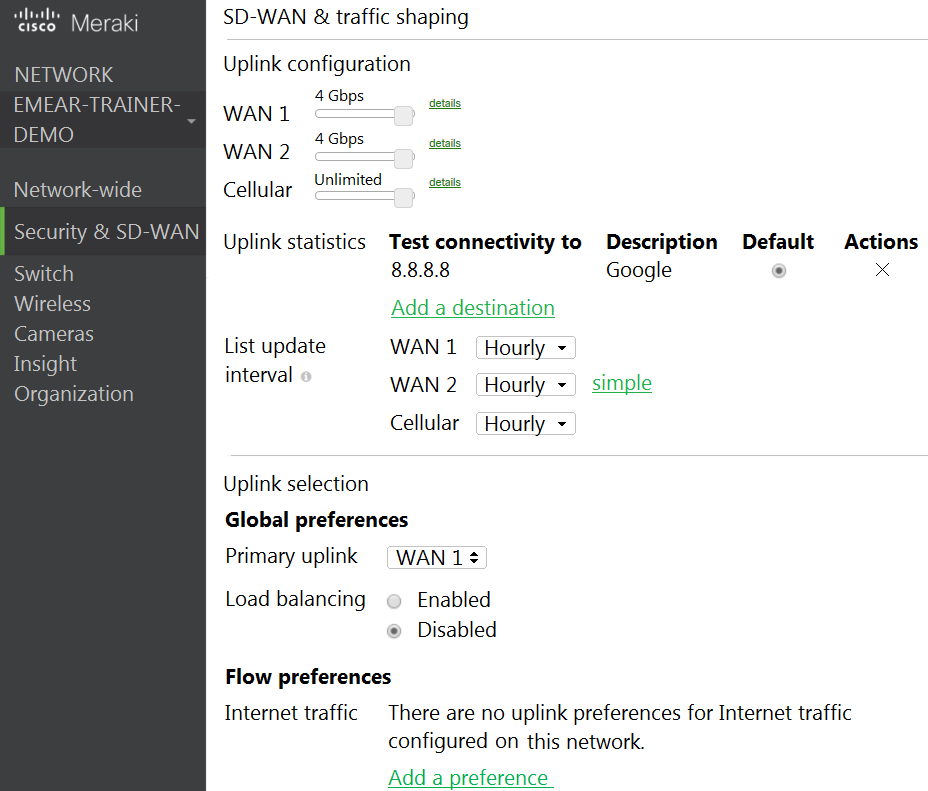

Cisco Meraki WAN Health calculates current loss and latency from responses received by the MX appliance from the connectivity-testing IP address configured in Security & SD-WAN > SD-WAN & Traffic Shaping > Uplink Statistics. The MX continually tests that destination with ICMP; 8.8.8.8 is the default when no custom destination is configured.

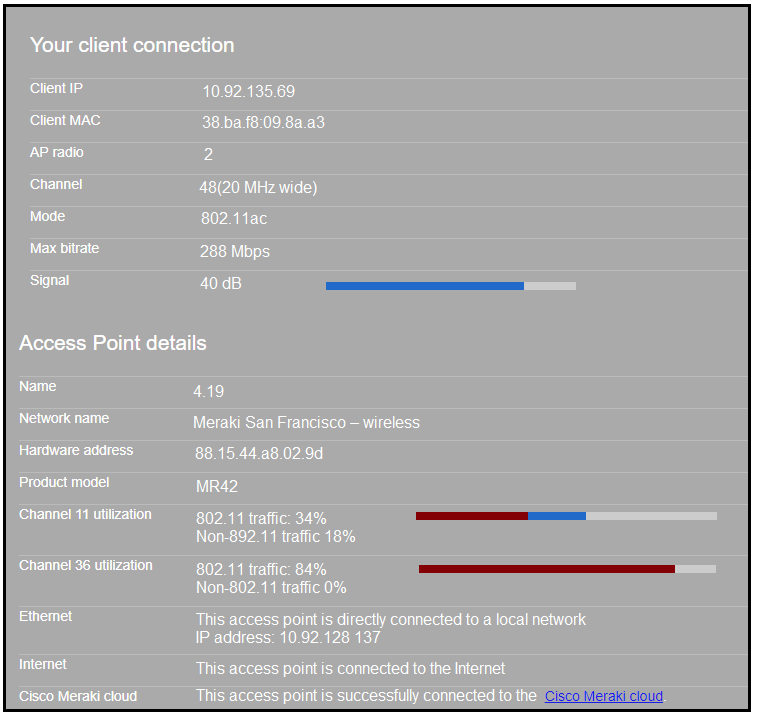

An 84% channel utilization level means that most wireless airtime is already occupied. This leaves little available airtime for the client’s transmissions, creating contention and reduced wireless performance on channel 48.

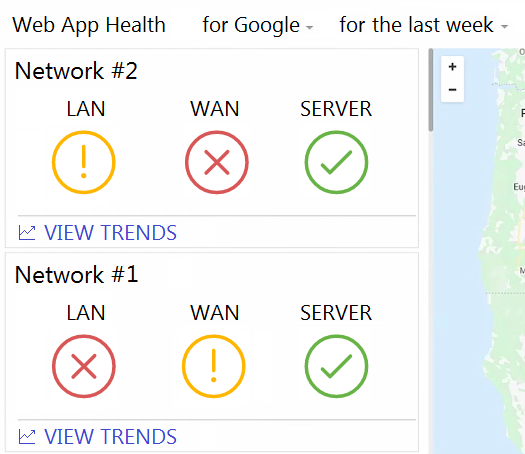

Both networks have a non-healthy LAN or WAN indicator, so users on either network may experience problems reaching Google. Each network’s server indicator is healthy, so neither network shows a recorded server-side performance issue.

In Cisco Meraki Systems Manager, a NotNow event during a managed-app push indicates that the device is locked with a passcode, so it cannot perform the action until it is unlocked. The device retries the action after it reconnects to the MDM service.

Routers select the matching route with the longest network prefix. The destination 172.18.24.12 matches all listed networks, but 172.18.24.0/24 is the most specific match, so it is selected.

Air Marshal containment uses spoofed deauthentication packets to force clients off the contained rogue SSID. Clients already connected lose their connection, and clients attempting to join are immediately disconnected, preventing new connections.

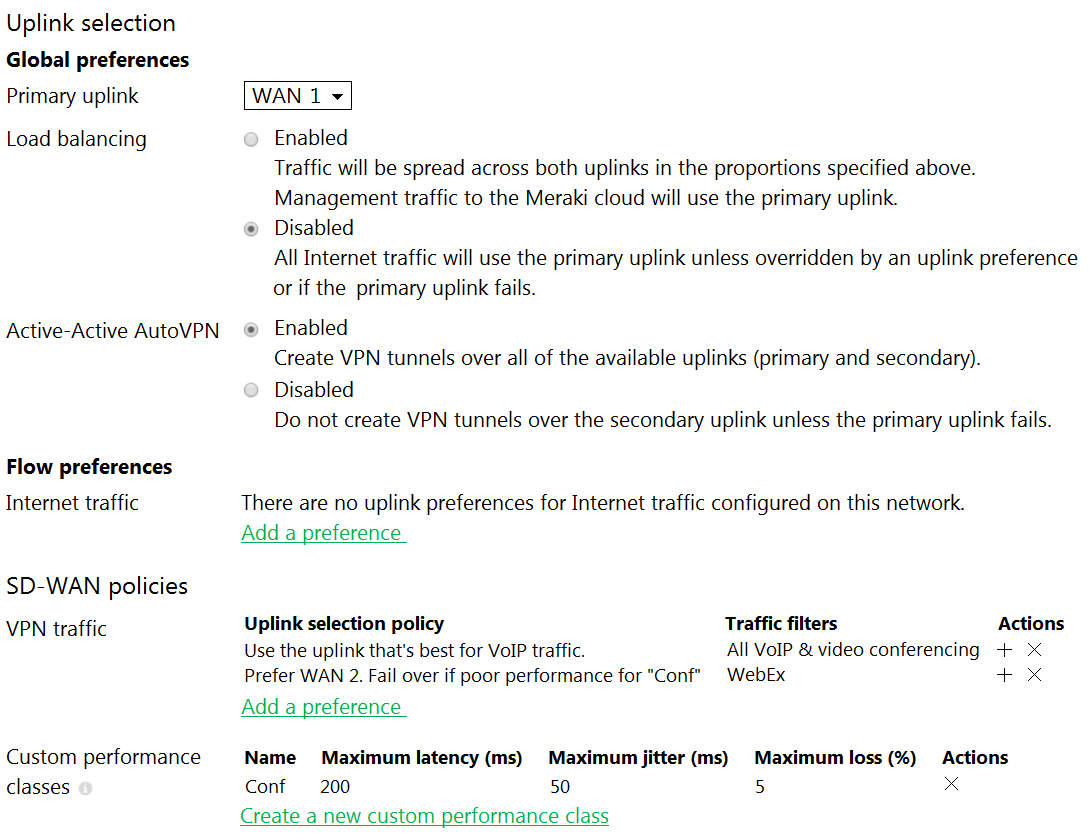

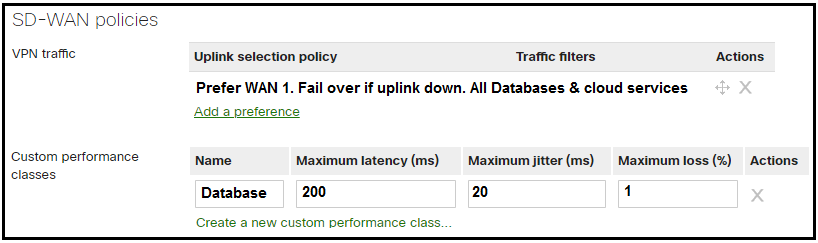

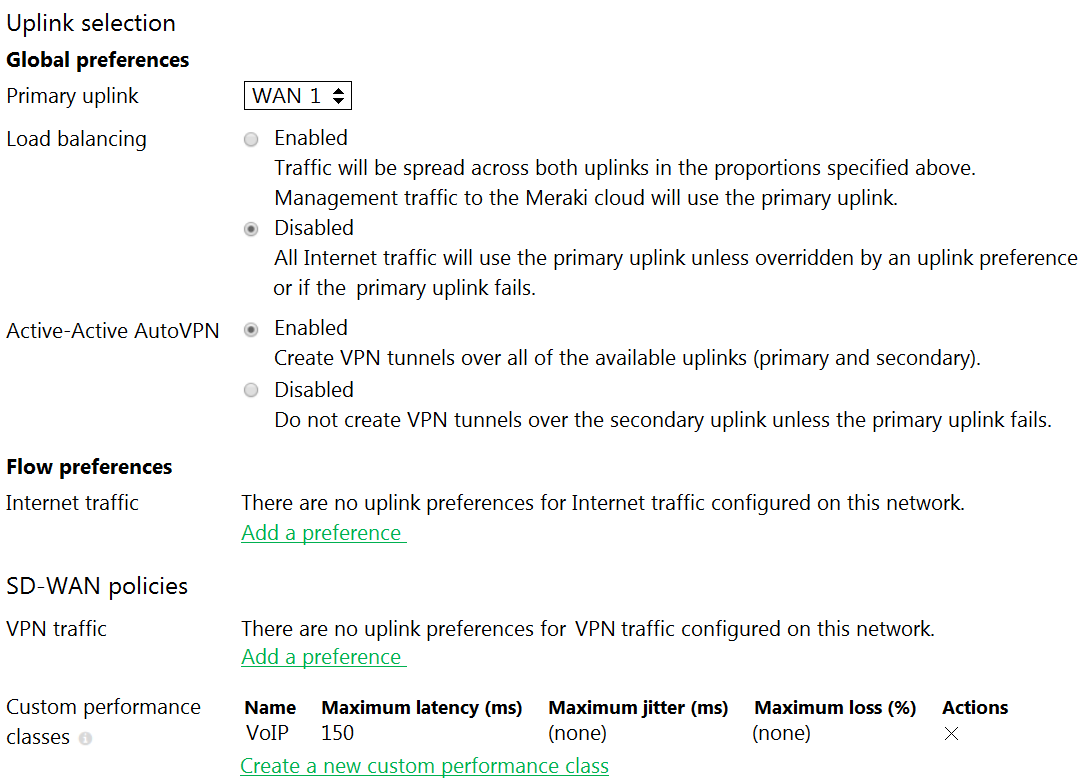

MX appliances measure AutoVPN loss, latency, and jitter using approximately 100-byte UDP performance probes sent every second across all established AutoVPN tunnels. With Active-Active AutoVPN enabled, tunnels are created over all available uplinks.

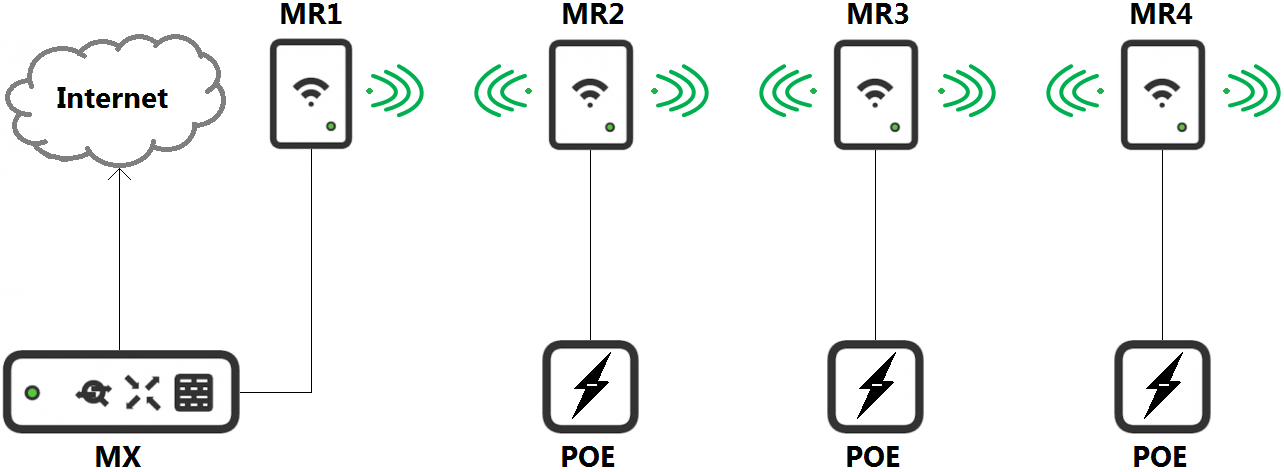

Cisco Meraki provides mesh monitoring on each access point’s details page, reached through Wireless > Monitor > Access Points and selection of the relevant AP. The per-AP view exposes mesh routes and mesh-neighbor information needed to examine wireless mesh relationships.

High-density wireless design focuses on limiting SSIDs, using appropriate band selection, and configuring minimum data rates to preserve airtime capacity. Maximizing beamforming is not a standard design-scope best-practice setting.

Cisco Meraki Systems Manager provides Screenshot and Remote Desktop as Agent Live Tools for Windows and macOS desktop devices. The iOS and Android command sets do not offer either capability, while they do support functions such as notifications, selective wipe, and—in applicable cases—OS updates.

On Meraki wireless networks, the Recent 802.1X Failure alert is generated only when the association requirement is configured as WPA2-Enterprise with a custom RADIUS server. The alert is not generated for a splash page that uses RADIUS.

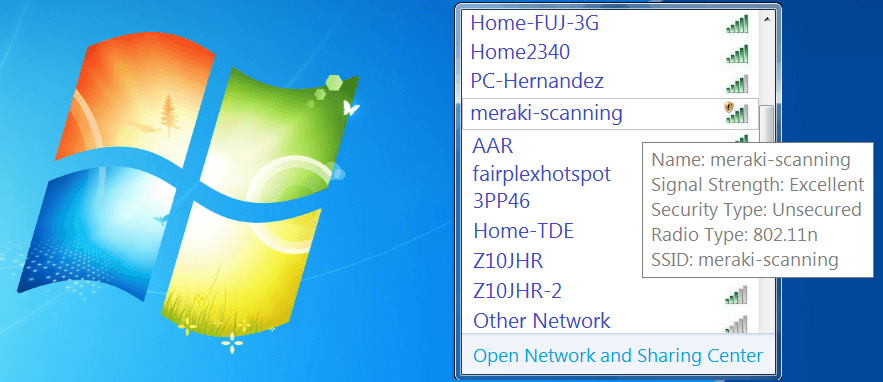

A Meraki MR access point that has power but no wired network connection broadcasts an SSID similar to meraki-scanning so that an administrator can reach its local status page. This lets the AP be configured or tested while it scans for a network uplink.

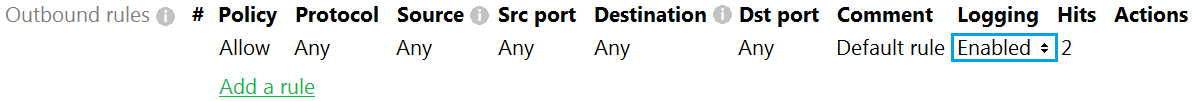

Enabled logging on an outbound Cisco Meraki firewall rule reports matching outbound flows to a configured syslog server when the Appliance Flows syslog role is configured. This setting is independent of the firewall rule’s enabled state and its hit counter.

A vMX is a virtual Meraki appliance intended primarily as a VPN/SD-WAN concentrator in AWS, Azure, and other clouds, so the features common to both a hardware MX and a vMX are SD-WAN policies and Layer 3 and Layer 7 firewall rules, both of which appear in the vMX feature set. Active Directory integration (option C) is not a configurable vMX feature, which rules out the existing key of CD. Client VPN and full threat-protection scope differ or are constrained on the vMX, making A and D the clean pair that applies to both platforms. This matches the blind solver (AD) and overturns the existing key (CD).

Cisco Meraki Dashboard supports combining network tags with device tags to generate Summary Reports filtered to particular devices across multiple networks. It also supports granting network-level administrator permissions by network tag, applying those permissions to all networks in the organization that carry that tag.

Dual-band operation with Band Steering controls SSID behavior on the 2.4 GHz and 5 GHz bands. Band steering preferentially directs dual-band clients to 5 GHz and changes 2.4 GHz advertisement/probe-response behavior, so it is the relevant setting for initial association behavior of a 2.4 GHz-only client.
