Question 1

Designing the FlexPod Solution

Which four VLANs can be configured on UCS platform? (Choose four)

A 1
B 199
C 1001
D 3968
E 4001
F 4047

Question 2

Designing the FlexPod Solution

Question 3

Designing the FlexPod Solution

Question 4

Designing the FlexPod Solution

Question 5

Designing the FlexPod Solution

Question 6

Designing the FlexPod Solution

Question 7

Designing the FlexPod Solution

Question 8

Designing the FlexPod Solution

Question 9

Designing the FlexPod Solution

Question 10

Designing the FlexPod Solution

Question 11

Designing the FlexPod Solution

Question 12

Designing the FlexPod Solution

Question 13

Designing the FlexPod Solution

Question 14

Designing the FlexPod Solution

Question 15

Designing the FlexPod Solution

Question 16

Designing the FlexPod Solution

Question 17

Designing the FlexPod Solution

Question 18

Designing the FlexPod Solution

Question 19

Designing the FlexPod Solution

Question 20

Designing the FlexPod Solution

That's the end of the Preview

This exam has 50 community-verified practice questions. Create a free account to access all questions, comments, and explanations.

Topics covered:

Designing the FlexPod Solution

Log In / Sign Up

Page 1 of 2 • Questions 1-25 of 50

1 2

→

Know a question that should be here? Contribute to this exam

Which of the following is an example of a Cisco UCS high availability component?

A Clustered fabric interconnects
B vMotion
C Live migration
D Cluster shared volumes

Which traffic through a UCS 6200 cluster can be in Active-Standby mode?

A Data traffic only
B FHRP
C Data and management traffic
D Management traffic only

Which is true about UCS High Availability?

A Support for 3 Fabric Interconnects
B Dual homing IOM to Fabric Interconnects
C Port Channeling within UCS system requires Fabric Interconnects and IOMs to be at least second generation.
D UCSM supports vPC configuration

Which of the following is a component of stateless computing with Cisco UCS?

A Utilization of identity information burned into the hardware
B Operating System boot from server local disk
C Utilization of service profiles to apply SAN connectivity attributes
D Treating each server as a traditional rack mount server

Question 6

Designing the FlexPod Solution

Question 7

Designing the FlexPod Solution

Question 8

Designing the FlexPod Solution

Question 9

Designing the FlexPod Solution

Question 10

Designing the FlexPod Solution

Question 11

Designing the FlexPod Solution

Question 12

Designing the FlexPod Solution

Question 13

Designing the FlexPod Solution

Question 14

Designing the FlexPod Solution

Question 15

Designing the FlexPod Solution

Question 16

Designing the FlexPod Solution

Question 17

Designing the FlexPod Solution

Question 18

Designing the FlexPod Solution

Question 19

Designing the FlexPod Solution

Question 20

Designing the FlexPod Solution

For FI 6248 with a GEM module, what is the possible assignment of ports for native Fibre Channel and Ethernet?

A Eth ports: 1-21, 33-48, Fibre Channel ports. 22-32
B Eth ports: 1-18, 33-40, Fibre Channel ports. 19-32, 41-48
C Eth ports: 1-21, Fibre Channel ports. 22-48
D Eth ports: 1-16, 41-48, Fibre Channel ports. 17-40

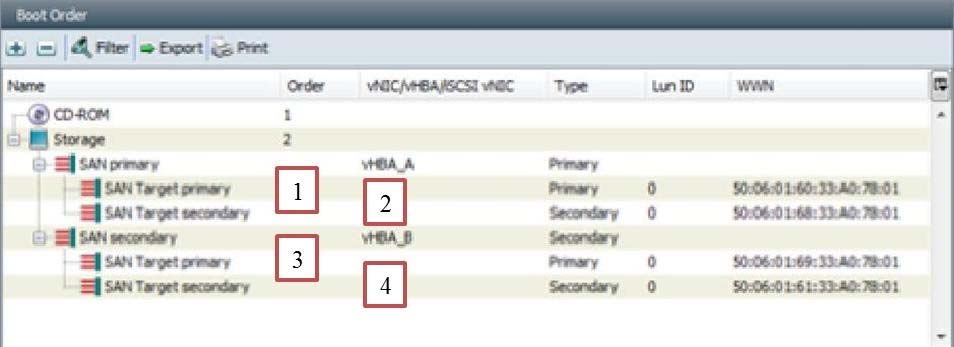

Refer to the exhibit.

Question Image

The numerals in the red rectangle, what will be this servers Boot from SAN order?

A 1, 2, 3, 4
B 1, 3, 2, 4
C Not enough information
D 3, 4, 1, 2

Cisco UCS Manager may be used to manage which four tasks within a Cisco UCS domain? (Choose four)

A Cisco UCS hardware including the chassis, servers, fabric interconnects, and i/o modules
B Cisco UCS resource management including WWN addresses, MAC addresses, UUIDs, and bandwidth
C Deployment of a Windows or Linux Operating system
D Management of non-Cisco x86 systems
E Network administration such as creating VLANs, uplink ports, port channels and LAN PIN groups
F SAN configuration tasks such as creating VSANs, QoS classes and definitions, and port channels.

Which item is an example of Role-Based Access Control and multi-tenancy support that can be applied to a UCS environment using the Cisco UCS Manager?

A Create roles for Data ONTAP Vserver administrators
B Create a storage administrator role with control over tasks related to the SAN
C Create interface groups on NetApp storage
D Apply NFS read/write access to a network share

Which Cisco Nexus switch is designed for low latency L2/L3 IP only networks?

A Nexus 5548
B Nexus 7000
C Nexus 3048
D Nexus 5596

In a FlexPod design, when can NetApp storage be directly connected to a Cisco UCS server?

A Never
B Always
C Only in a FlexPod Select design
D Only in a FlexPod Express design
E Only in a FlexPod DataCenter design

Which hardware device should provide Fibre Channel services in a FlexPod design?

A Cisco UCS 6248 Fabric Interconnect
B NetApp FAS
C Cisco Nexus 3000
D Cisco Nexus 5500

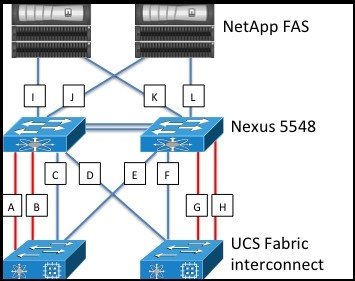

Refer to the exhibit.

Question Image

Following FlexPod recommended practices, which portchannel configuration is valid for the connectivity shown?

A A and B. portchannel 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. portchannel 1I and K. po11 and vpc 11J and L. po12 and vpc 12
B A and B. vpc 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. vpc 4I and K. po11 and vpc 11J and L. po12 and vpc 12
C A and B. portchannel 1C and D. po2 and vpc 2E and F. po3 and vpc 3G and H. portchannel 4I and J. po11 and vpc 11K and L. po12 and vpc 12
D A and B. portchannel 1C and D. vpc 2E and F. vpc 2G and H. portchannel 4I and J. vpc 11K and L. vpc 11
E A and B. po1 and vpc 1C and D. po2 and vpc 2E and F. po3 and vpc 3G and H. po4 and vpc 4I and J. po11 and vpc 11K and L. po12 and vpc 12

When using Virtual Port Channel (vPC) on a Nexus 5500 switch, what protocol is responsible for synchronization of configuration, spanning tree, MAC and VLAN information?

A Fibre Channel over Ethernet (FCoE)
B Spanning Tree Protocol (STP)
C LACP
D Cisco Fabric Services over Ethernet (CFSoE)

Under what circumstance can a Cisco Nexus 5548 perform an ISSU (nondisruptive)?

A When configured for VPCs
B When configured for L3
C When an STP-enabled switch is connected downstream
D When the STP Bridge Assurance feature is running on a link other than the VPC peer link.

How many cluster interconnect switch(es) are required for a 4-node NetApp cluster?

A 1
B 2
C 4
D 6

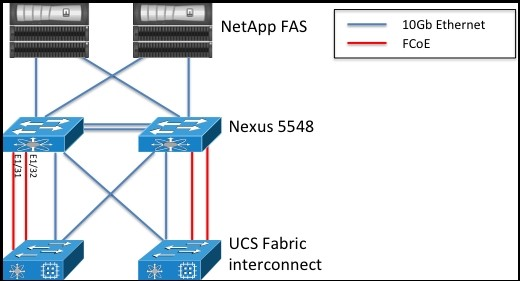

Refer to the exhibit.

Question Image

What would be the correct configuration for the ports labeled?

A vlan 35fcoe vsan 35int eth1/31channel-group 15 mode activeint eth 1/32channel-group 15 mode activeint portchannel15switchport mode trunkswitchport trunk allowed vlan 35spanning- tree port type edge trunkint vfc15bind interface po15switchport trunk allowed vsan 35vsan databasevsan 35 interface vfc15
B vlan 35fcoe vsan 45int eth1/31-32channel-group 15 mode activeint po15switchport access vlan 35int vfc15bind interface po15switchport trunk allowed vsan 45vsan databasevsan 45 interface vfc15
C int eth1/31channel-group 15 mode activeint eth 1/32channel-group 15 mode activeint po15switchport mode trunkswitchport trunk allowed vsan 45spanning- tree port type edge trunkvsan databasevsan 45 interface po15
D vlan 35fcoe vsan 45int eth1/31-32channel-group 15 mode activeint po15switchport mode trunkswitchport trunk allowed vlan 35switchport trunk allowed vsan 45spanning-tree port type edge trunkvsan databasevsan 45 interface po15
E int eth1/31-32channel-group 15 mode activeint po15switchport mode access vsan 45vsan databasevsan 45 interface po15

Clustered Data ONTAP supports which three types of disk drives? (Choose three)

A HAS
B InfiniBand
C SAS
D SATA
E SSD

With Data ONTAP 8.1.2, what must be upgraded to the latest firmware to take advantage of the latest updates available for the remote management device?

A CPU
B Disk Firmware
C Service Processor (SP)
D Cisco Integrated Management Controller (CIMC)

Before being added to an interface group, interfaces must be in what state?

A Active
B Down
C Maintenance
D Up
