Application configuration should be stored in environment variables so deployment-specific settings remain separate from the application codebase.

A 503 Service Unavailable response means the server is temporarily unable to process the request. When present, the Retry-After header tells the client how long to wait before retrying.

An HTTP 401 response means the request does not contain valid authentication credentials for the target resource. Valid credentials must therefore be configured; insufficient access permission with otherwise valid credentials is generally represented by HTTP 403.

gRPC’s default serialization format is Protocol Buffers (Protobuf). It is also data-format agnostic and can use JSON through a configured codec or marshaller; XML, ASCII, and YAML are not the intended gRPC message encodings.

Twelve-factor applications treat logs as event streams: each running process writes its event stream to standard output (stdout) and does not manage log files. The execution environment can capture and route that stream to log indexing and analysis systems for inspection and long-term use.

Static analysis can trace potentially untrusted input through code to identify unsafe data use, such as input contributing to a security-sensitive operation without validation. It can also apply configured code-style and coding-standard rules consistently across a codebase. Unit tests primarily execute specified behaviors and do not inherently enforce style or comprehensively analyze tainted-data flows.

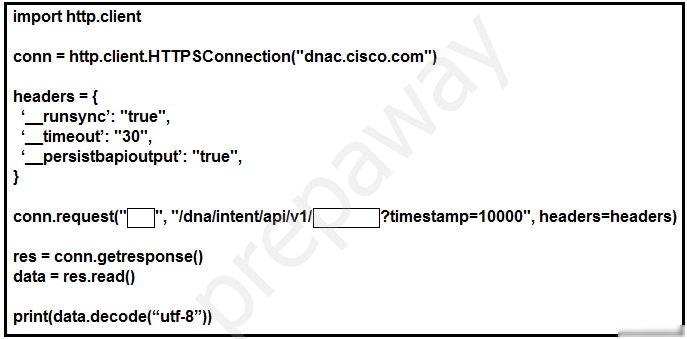

Cisco DNA Center retrieves endpoint-client health through the GET /dna/intent/api/v1/client-health API. A connected laptop is a client endpoint; network-device concerns infrastructure devices, while POST and PUT are not retrieval methods.

The codebase tenet requires an application to be tracked in a version-control system and to use the same codebase across all of its deployments. A 12-factor application has one codebase per application and can have many deployments.

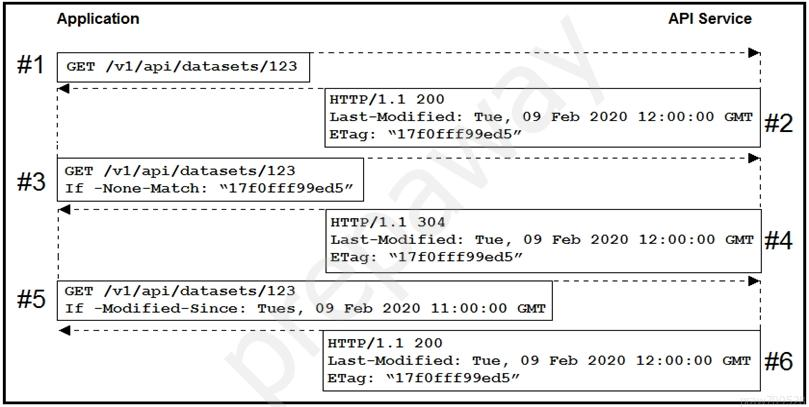

A successful GET response with status 200 returns the selected representation, so the dataset is transmitted in messages #2 and #6. A matching If-None-Match condition results in a 304 Not Modified response without representation content. The identical ETag and Last-Modified values in messages #2, #4, and #6 show that the dataset remained unchanged throughout the sequence. The If-Modified-Since value in message #5 is earlier than the resource's 12:00 modification time, so it correctly results in a 200 response.

Proper input validation restricts data to expected values and formats, reducing the chance that malicious syntax reaches an interpreter. Context-specific escaping of user-supplied text and data prevents special characters from being interpreted as commands or query syntax. OWASP identifies input validation and contextual escaping as injection-prevention controls.

XSS defenses include allowlisting acceptable user-input characters and removing HTML/XML tags from untrusted input so browser-interpretable markup cannot be injected. Encryption does not prevent injected scripts from executing.

gNMI is implemented as a gRPC service, and gRPC uses HTTP/2 for transport.

An active/active architecture serves traffic from multiple sites simultaneously, minimizing recovery time because a surviving site is already operational. It requires timely cross-site data synchronization to keep replicas current, minimize data loss, and support seamless request flow. AWS identifies multi-site active/active as capable of near-zero RPO and potentially zero RTO, with data synchronization required across Regions.

Python, Ruby, and JavaScript do not require a distinct ahead-of-time source-code compilation step as part of a typical CI/CD pipeline. Packaging dependencies, running automated tests, and deploying the application remain applicable pipeline activities.

Random early detection is a load-shedding mechanism that rejects some excess requests before backend capacity is exhausted, preserving acceptable service for the requests that remain within the platform’s 1000-requests-per-second capacity. Google Cloud guidance similarly recommends dropping excess requests at the frontend during overload to protect backend components and avoid broader failures.

An AppGigabitEthernet data port for an application container supports a Layer 2 trunk attachment or a VLAN-specific bridged virtual connection. The trunk carries the allowed VLANs to the container, while the bridged VLAN-specific option attaches the container to one VLAN. The management interface is a separate management-network attachment, and SPAN or an IOS subinterface is not one of these container data-port modes.

Terraform defines and provisions the cloud VM infrastructure as desired state, supporting repeatable recreation of the ephemeral environment. Ansible provides configuration management and agentless automation for installing and deploying software on those VMs and for managing remote network devices through supported network modules and protocols.

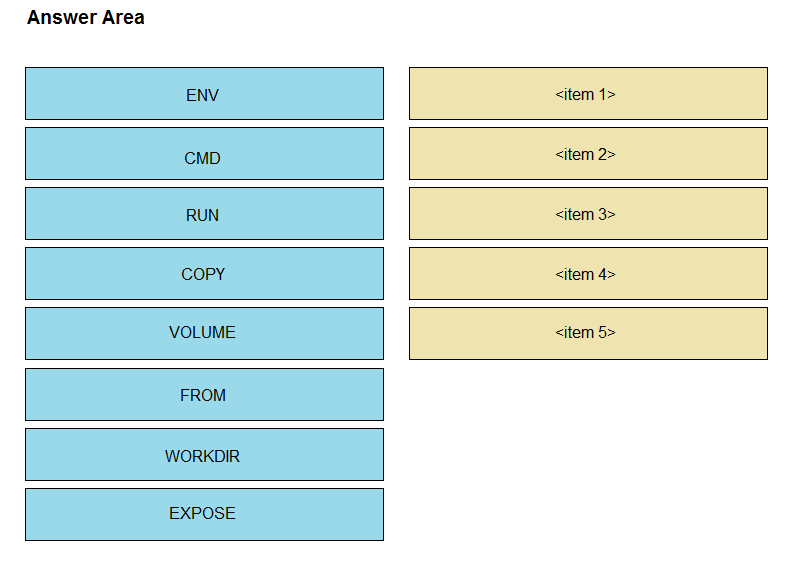

The container working directory must be correct. Docker applies WORKDIR to subsequent CMD and ENTRYPOINT instructions; an incorrect directory can cause a Python process to fail at runtime when it relies on relative script, import, configuration, or test-resource paths. Docker recommends explicitly setting WORKDIR to prevent unintended operations in an unknown directory.
