Log In / Sign UpGiven the CIA triad elements, which ensures first that the data is encrypted and secure, second that the data is trustworthy, and third that the data is accessible by those who need it?
It is common to use Resilient Ethernet Protocol (REP) on the manufacturing floor as a resiliency protocol, as opposed to the Enterprise where it is not generally deployed. What are two reasons why REP is more suitable for the plant floor? (Choose two)

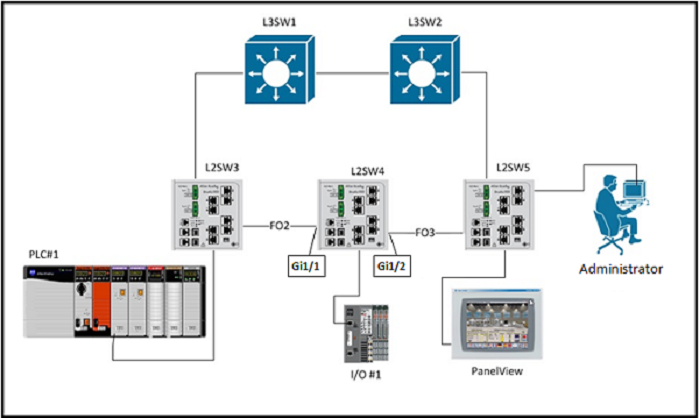

Refer to the exhibit.

CIP Implicit messages from I/O#1 are being marked IP DSCP 47 by the endpoint and this marking is trusted by L2SW4. L2SW4 is configured to map DSCP 47 to output queue 1 threshold 1. You have received feedback that some of these messages are not being received. Executing the show mls interface GigabitEthernet statistics command on L2SW4 results in:
L2SW4# show mls interface GigabitEthernet 1/1 statistics
<output omitted>
output queues dropped:
queue: threshold1 threshold2 threshold3 queue 0 0 0 0 queue 1 309232345 450 0 queue 2 300 10 0 queue 3 91 0 0
Repeating this command results in the counters incrementing for queue 1 threshold 1. What are two options for reducing the packet loss on this interface while preserving the end-to-end DSCP marking? (Choose two)
Which selection is a reason why IGMP snooping should be configured on a switched network?

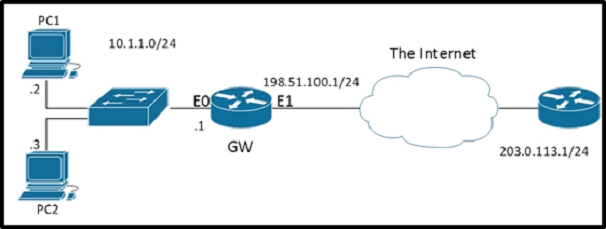

Refer to the exhibit.

Which three options are needed to configure NAT on router GW so PC1 and PC2 will be able to ping 203.0.113.1? (Choose three)
Which is an issue with running CIP Motion on a REP network and identifies an alternate resiliency protocol that works for CIP Motion?

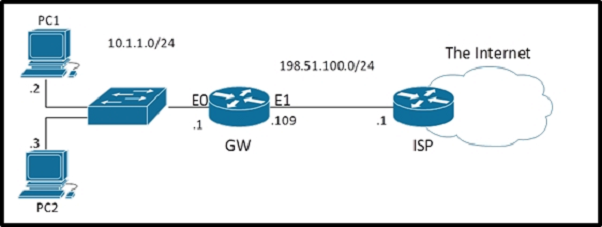

Refer to the exhibit.

NAT has been configured on the router 'GW' and the IP addresses of router 'GW' have been configured properly. Users of PC1 and PC2 are able to ping the IP address 198.51.100.1 but are unable to reach any other IP addresses on the Internet. The ISP confirmed that their configuration is correct. Which option would likely correct the problem?
If the Link Fault alarm is connected to the minor relay and the FCS Bit Error Rate alarm is connected to the major relay, which commands will create an alarm profile called GigE with the alarms correctly mapped to the minor and major relays?
Your supervisor calls you and tells you that one of the Stratix 5700 switches is not assigning all CIP explicit messages to the proper QoS queue. The switch was deployed with the ab-global macro and CIP explicit messages were previously being assigned to the proper QoS queue. You suspect the access-lists associated with the ab-global macro have been changed. Look at the following access list from the switch configuration:
access-list 101 permit udp any eq 2222 any dscp 55
access-list 102 permit udp any eq 2222 any dscp 47
access-list 103 permit udp any eq 2222 any dscp 43
access-list 104 permit udp any eq 2222 any
access-list 105 permit udp any eq 44818 any
access-list 105 permit tcp any eq 44816 any
What needs to be done to fix the above access list?
A cookie cutter machine requires 2 standard controllers and a safety controller. All of these controllers and machine level I/O have been placed on VLAN 104.
Both standard controllers must monitor a photocell on this machine. Which IP address is used to transfer this status information?
A cookie cutter machine requires 2 standard controllers and a safety controller. All of these controllers and machine level I/O have been placed on VLAN 104. The safety controller must monitor an emergency stop connected to an I/O adapter on an adjacent machine (VLAN 105). Which packet type will be used?
What is the reason that ProfiNET frames are discarded by default on Catalyst switches?
