A consultant asks a customer to verify the ToR Switch data port configuration was done according to Nutanix best practices. The switch configuration must simplify future deployments and expansions.
Which two configuration actions will satisfy this requirement? (Choose two.)
ADisable multicast and broadcast flood optimizations.
BConfigure the CVM and hypervisor host VLAN as the native.
CUse a tagged VLAN for the CVM and hypervisor hosts.
After imaging the nodes and creating the cluster successfully in a sandbox environment, the consultant connects the cluster to the customer’s Production network. However, notices Prism Element Alerts Dashboard is displaying multiple errors.
What is causing this issue?
AThe cluster Virtual IP Address (VIP) was not set up during the process.
BThe cluster was not stopped prior to connecting to the customer network.
CFoundation did not create the cluster successfully.
DThe consultant did not run Nutanix Cluster Check (NCC).
After an onsite cluster deployment, a consultant prepares the deliverables for a project closeout.
Which two data in the As-Built Guide require adjustment or might be missing completely? (Choose two.)
ACluster Information
BAHV Host Information
CNutanix Node Port Layout
DPhysical Rack Layout
In preparing to install a new cluster for a company, a consultant needs to complete an installation worksheet.
Which values must be documented prior to initial base system setup?
AHypervisor. CVM, and IPMI IP Addresses
BPrism Central IP Address
CDNS and NTP IP Addresses
DBlock Serial Numbers
The installation process stops before imaging any of the nodes and an error message is displayed notifying the IPMI IP address is unreachable.
What should consultant do to fix the issue?
ACheck the service. log and the individual node log files for more detailed information.
BIf the nodes are in the same subnet go to the Cluster page and configure multi-homing.
CEnsure the Foundation VM is not in the same broadcast domain as the Controller VMs.
DRe-try Foundation using a non-flat switch.
Question 6
Foundation and Cluster Deployment
0
Question 7
Foundation and Cluster Deployment
Question 8
Infrastructure Configuration and Management
Question 9
Infrastructure Configuration and Management
Question 10
Infrastructure Configuration and Management
Question 11
Infrastructure Configuration and Management
Question 12
Foundation and Cluster Deployment
Question 13
Infrastructure Configuration and Management
Question 14
Infrastructure Configuration and Management
Question 15
Foundation and Cluster Deployment
Question 16
Infrastructure Configuration and Management
Question 17
Infrastructure Configuration and Management
Question 18
Foundation and Cluster Deployment
Question 19
Foundation and Cluster Deployment
Question 20
Foundation and Cluster Deployment
Question 21
Infrastructure Configuration and Management
Question 22
Foundation and Cluster Deployment
Question 23
Foundation and Cluster Deployment
Question 24
Foundation and Cluster Deployment
Question 25
Infrastructure Configuration and Management
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
During a Site Readiness Check, a customer informed the consultant that there is no NTP server currently configured in the environment.
Which two statements should the consultant consider for continuing the cluster deployment? (Choose two.)
AAn NTP server is not required for cluster Foundation and can be added later.
BAt least one external NTP server must be used to complete Foundation process.
CAt least 3 NTP servers must be provided in a comma-separated list.
DIf an NTP server is provided using FQDN, a DNS server is required.
Which subnet should a consultant be aware is reserved for internal connectivity within a Nutanix cluster?
A192.168.5.0/26
B192.168.254.0/24
C192.168.5.0/24
D192.168.5.0/23
A consultant is setting up a new install of Nutanix Files for a customer, but receives this error when attempting to join the customer’s Active Directory domain:
File Server <FileServerName> could not join the Domain because User credentials failed with error - Unable to connect to WORKGROUP ads_connect: No logon servers
The consultant has already verified the domain credentials provided by the customer are valid and have the correct permissions.
What is the most likely cause in this scenario for a domain-join failure when setting up Nutanix Files?
AThe FSVMs storage network must be in the same network as the logon servers.
BThe client network is failing to communicate with the customer’s domain controllers due to a missing network firewall port requirement.
CThe FSVMs must first be manually added to a site mapping in Active Directory before they can be authorized to communicate with the logon servers.
DThe client network is failing to communicate with the customer’s domain controllers due to mismatched MTU sizes.
During the knowledge transfer session, a consultant conducts a storage management demo. In the Creating a Storage Container workflow, the customer notices the Reserved Capacity parameter and asks for best practices related to it.
How should the consultant respond?
ANutanix recommends to configure at least 2 storage pools with at least one storage container each.
BDo not reserve less than 90% of the total space in the storage pool.
CReserve capacity for a storage container only if the storage pool consists of multiple storage containers.
DReserve capacity for a storage container only if the storage pool consists of single storage container.
In which two ways can the IPMI address be set on a Nutanix hardware installation? (Choose two.)
ANutanix Network Crashcart
Bipmitool
CBIOS configuration
DiLO configuration utility
After installation, network ports are properly configured with the default active-backup bonding. One 10GbE port goes to switch 1. Another 10GbE port goes to switch 2.
A consultant tests failover by manually disconnecting one of the cables and notices it is taking too much time to failover, which is causing excessive packet loss.
What should be enabled to resolve this issue?
ALACP on switch
BPagP
CSpanning-tree Portfast
DJumbo frames

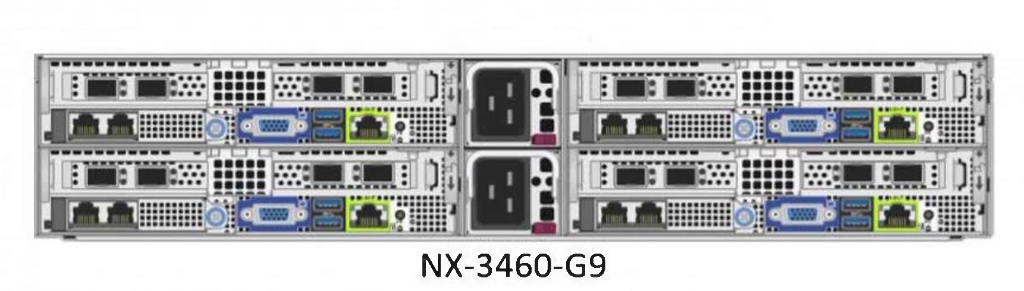

Refer to the exhibit.
A Foundation install must be done on four NX nodes for a new customer. A consultant need to set up the network onsite before imaging the nodes through the Foundation tool.
The nodes are equipped with two SFP28 25GbE NICs with dual ports, and a 10GBase-T NIC with dual ports as well. The customer’s ToR switches are 25GbE datacenter switches, already in production.
What is the appropriate hardware to perform the most reliable imaging of these NX nodes?
AThe 25GbE production switches, 4 DAC cables, only one Ethernet cable with a 1GBase-T GBIC, and a laptop.
BA flat Ethernet switch, 9 Ethernet cables, and a laptop.
CThe 25GbE production switches, 4 DAC cables and 5 Ethernet cables with a flat Ethernet switch, and a laptop.
DA flat Ethernet switch, 4 compatible 1GBase-T GBICs, five Ethernet cables and a laptop.
What is the default password shipped on new NX hardware from the factory for the ADMIN user on IPMI?
Anode-serial-number
Bblock-serial-number
CADMIN
Dnutanix/4u
During the knowledge transfer session, a consultant conducts a storage management demo. In the Creating a Storage Container workflow, the customer notices the Advertised Capacity parameter and asks for an explanation.
How should the consultant respond?
AIt enables the ability to cap usage of storage containers to be smaller than the limit of a storage pool capacity
BIt assists in reserving space for a storage container to ensure a minimum storage capacity is available.
CIt assists in reserving space for a storage container to ensure a maximum storage capacity is available.
DIt is a capacity computed by dividing physical storage usage of a container by the replication factor (RF).
A consultant attempts to perform an LCM inventory after successfully creating the cluster, but is met with the following error:
LCM Exception [LcmExceptionHandler]: Could not find a module for entity with reference name nutanix.ncc.update
What is the most likely reason LCM inventory/update is failing?
ANameservers are not reachable.
BNutanix CVMs are blocking TCP port 54.
CIPMI network is unable to reach the Internet.
DClusters must be licensed before LCM inventory.
A consultant deployed a Nutanix Files cluster using separate networks for client and storage.
For testing a SMB standard share, a VM has been deployed on storage network. However, the consultant cannot access the share.
What is the cause of the issue?
AThe CVM network segmentation is configured.
BClients on the same subnet as the storage network cannot access the shares.
CAn iSCSI Data Services IP is not configured for the cluster.
DClients on the same subnet as the storage network can only access the distributed shares.
A consultant is viewing an ESXi host via console without external network connectivity.
Which two IP addresses can be used to connect to the CVM? (Choose two.)
A192.168.5.2
B192.168.5.253
C192.168.5.1
D192.168.5.254
A consultant is reimaging a Nutanix cluster with a supported ISO, but Foundation returns an error that the media is not a supported ISO.
Which two actions should the consultant take to resolve this issue? (Choose two.)
AEdit the whitelist file in Foundation.
BObtain the MD5 checksum of the ISO and confirm the MD5 checksum of ISO is listed.
CDownload and replace with the latest iso_whitelist.jsor from the Support Portal.
DRestart the imaging process in Foundation.
After deployment of a Nutanix cluster, a customer has requested to validate the peak performance of the cluster.
Which tool can a consultant use to satisfy this request?
Adiagnostics.py
BNutanix perfmon
CNutanix X-Ray
DNutanix HCIBench
A consultant is working to setup the network before starting the Foundation process.
How should the consultant complete this task?
AUsing the shared IPMI port, ensure that the connected switch can auto-negotiate to 1 Gbps.
BOn Nutanix NX Series, connect the IPMI port and any one of the data ports to the switch.
CEnsure the IPMI of the nodes are reachable using pre-configured IPMI IPv6 addresses.
DDisable IPv6 on the network to which the nodes are connected to ensure that IPv6 unicast is blocked.
When utilizing the Nutanix cluster As Built Document generator, which two configuration elements should a consultant provide when running the run_as_built.exe command? (Choose two.)
AData Services IP
BCluster IP
CRemote Site IP
DCustomer Name
A customer already has a Prism Central (PC) instance deployed in their environment and expects the consultant to unregister the old cluster before registering the new cluster.
What steps should the consultant take to safely and successfully unregister the customer’s former cluster from PC?
ALogin to any PCVM using SSH and run the PE_unregister.py script located in the Nutanix scripts directory, followed by the unregistration_cleanup.py script.
BLogin to the PC Web Ul, locate the PE cluster and click Unregister from the Actions dropdown menu.
CLogin to the PC Web Ul, navigate to Cluster Registrations found under settings in the Admin Center, check the box next to the desired PE, and click Remove.
DLogin to any CVM using SSH and use the multicluster command found within NCLI, followed by the unregistration_cleanup.py script on PE and PC.
During the cluster deployment, a consultant conducts operational tests on a vCenter-managed ESXi hypervisor.
As a part of tests, vCenter must place the host into maintenance mode, however, the task is stuck and the CVM is not shutting down automatically.
What should the consultant do to resolve the issue?
AShutdown the CVM using cvm_shutdown -P now.
BShutdown the CVM using shutdown -h now.
CPut the node into maintenance mode using ~/serviceability/bin/esx-shutdown -s cvm_ip_addr
DPut the node into maintenance mode using acli host.enter_maintenance_mode Hypervisor address.
What should a consultant consider when completing a bare-metal imaging process?
AConnect to a managed switch with routing tables to protect the production environment against configuration errors.
BEnable STP by using PortFast or an equivalent feature on the ports that are connected to the Nutanix host.
CAvoid connecting any device to the node USB port that presents virtual media such as a CD-ROM.
DEnsure that the CD-ROM appears last in the BIOS boot order to avoid Foundation timeout.
A consultant has completed a cluster build according to the following requirements:
Syslog Setup with ERROR level Logging
Proxy Setup -
SNMP v3 Trap setup -
When adding the cluster to an existing Prism Central with a proxy setup, the following error is triggered in the Prism Gateway logs:
Caused by: com.nutanix.util.base.ValidationException: Prism Central is unreachable
What configuration is likely missing?
AWhitelist of Prism Central VIP inside of Prism Element and Prism Element VIP inside of Prism Central
BWhitelist of Prism Central DSIP inside of Prism Element
CWhitelist of Prism Central DSIP inside of Prism Element and all Prism Element CVMs inside of Prism Central
DWhitelist of AHV Host IP addresses in Prism Central
