You want to update your storage system and are concerned about the compatibility of the SAN components and the host environment.
In this scenario, which two actions should you take to verify compatibility? (Choose two.)
AUse the Interoperability Matrix Tool.
BUse Active IQ Interop Advisor.
CUpload AutoSupports to Active IQ.
DUse the Active IQ Config Advisor.
0
Question 2
Introduction to Data Protection in Clustered Data ONTAP
0
Question 3
Storage Systems Recovery and Troubleshooting for Partners
0
Question 4
Storage Systems Recovery and Troubleshooting for Partners
0
Question 5
Introduction to Storage System Monitoring and Manageability
0
That's the end of the Preview
This exam has 60 community-verified practice questions. Create a free account to access all questions, comments, and explanations.
Topics covered:
Introduction to NetApp Storage System Basic ComponentsIntroduction to Clustered Data ONTAP ArchitectureIntroduction to Aggregates and FlexVols in Clustered Data ONTAPIntroduction to Networking in Clustered Data ONTAPIntroduction to High-Availability in Clustered Data ONTAPIntroduction to Data Protection in Clustered Data ONTAPIntroduction to NFS in Clustered Data ONTAPIntroduction to CIFS in Clustered Data ONTAPIntroduction to WAFL and Snapshot in Clustered Data ONTAPIntroduction to SAN in Clustered Data ONTAPIntroduction to Storage System Monitoring and ManageabilityIntroduction to Quotas in Clustered Data ONTAPIntroduction to Clustered Data ONTAP Basic TroubleshootingIntroduction to Name Services in Clustered Data ONTAPIntroduction to Multi-Protocol Troubleshooting in Clustered Data ONTAPIntroduction to Virtualization in Clustered Data ONTAPIntroduction to Performance in Clustered Data ONTAPStorage Systems Recovery and Troubleshooting for PartnersONTAP Administration: What's New in ONTAP 9.0ONTAP 9: New Features
Source Path Destination Path Relationship ID Relationship Type msgld: msragld: 78e304e0-9781-1234-abcd-00a098d771bd XDP msxpgld: msraxpgld: 3ca42ab4-9782-1234-abcd-00a098d771bd XDP na_docavgld: ndradocavgld: a4b233b2-9783-1234-abcd-00a098d771bd XDP na_dr: ndradr: c97d36a0-6d7c-11e8-83fb-00a098d771bd XDP na_gld: ndragld: 9e7e034d-9782-1234-abcd-00a098d771bd XDP na_mpgld: ndrampgld: 16e52e0d-9783-1234-abcd-00a098d771bd XDP na_opengld: ndraopengld: dabb1813-9780-1234-abcd-00a098d771bd XDP na_poc: ndrapoc: c1d632d7-977b-1234-abcd-00a098d771bd XDP na_pubgld: ndrapubgld: 1a3f866c-9780-1234-abcd-00a098d771bd XDP
Referring to the output, which type of SnapMirror destination relationship is being used?
ASingle Volume SnapMirror Asynchronous
BSingle Volume SnapMirror Synchronous
CSnapVault
DStorage Virtual Machine DR
When you replace a motherboard, which step will completely test the newly installed component?
AFrom ONTAP, execute sldiag.
BFrom the LOADER prompt, type boot_ontap maint, then execute sldiag.
CFrom the LOADER prompt, type boot_diags, then execute sldiag.
DFrom the LOADER prompt, execute sldiag.
You need to provide a customer an action plan to update an ONTAP system after a security bulletin has been issued.
In this scenario, how do you accomplish this task?
AUse the Interoperability Matrix Tool.
BReview the ONTAP 9 product page.
CDownload the target version and do a pre-check.
DUse Upgrade Advisor on Active IQ.
What is the consequence of a loss of connectivity between a Cloud Volumes ONTAP (CVO) instance and Cloud Manager for four or more days?
AThe CVO instance sends an AutoSupport message.
BThe CVO instance must be added back manually to Cloud Manager.
CCloud Manager removes the CVO instance from its inventory.
DThe CVO instance is stopped.
Question 6
Introduction to NetApp Storage System Basic Components
0
Question 7
Introduction to WAFL and Snapshot in Clustered Data ONTAP
Question 8
Introduction to Performance in Clustered Data ONTAP
Question 9
Introduction to Virtualization in Clustered Data ONTAP
Question 10
Introduction to Data Protection in Clustered Data ONTAP
Question 11
Introduction to CIFS in Clustered Data ONTAP
Question 12
Introduction to Data Protection in Clustered Data ONTAP
Question 13
Introduction to Data Protection in Clustered Data ONTAP
Question 14
Introduction to Data Protection in Clustered Data ONTAP
Question 15
Introduction to CIFS in Clustered Data ONTAP
Question 16
Introduction to Name Services in Clustered Data ONTAP
Question 17
Introduction to Clustered Data ONTAP Basic Troubleshooting
Question 18
Introduction to Storage System Monitoring and Manageability
Question 19
Introduction to Storage System Monitoring and Manageability
Question 20
Introduction to Multi-Protocol Troubleshooting in Clustered Data ONTAP
Question 21
Introduction to Aggregates and FlexVols in Clustered Data ONTAP
Question 22
Introduction to Networking in Clustered Data ONTAP
Question 23
Introduction to Networking in Clustered Data ONTAP
Question 24
Introduction to Clustered Data ONTAP Basic Troubleshooting
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
How many drive bays does a DS4246 shelf have?
A42
B12
C46
D24
What are two conditions that would cause writes in memory to be written to disk? (Choose two.)
AThe NVRAM (NVLog) fills up.
BA user presses "Save".
CDrive capacity becomes available.
DA Snapshot copy is taken.
On an AFF system, which three storage efficiencies are enabled by default? (Choose three.)
Areallocation
Bcompaction
Cdeduplication
Dcompression
Eencryption
What is the minimum number of compute nodes required to run the NetApp Deployment Engine for NetApp HCI?
A2
B1
C3
D4
Which NetApp technology enables you to perform block-based replication from NetApp Element software to Cloud Volumes ONTAP?
ASyncMirror
BSnapMirror
CCloud Sync
DMetroCluster
Which CIFS server configuration determines the domain controllers that a CIFS server uses?
Asite membership
Benabled SMB versions
Ctrusted domains
Ddiscovery mode
A volume was accidentally deleted two hours ago by another administrator. No backups exist.
In this scenario, what do you do to restore the data?
AUse the ONTAP System Manager to recover the volume.
BUse a volume snapshot to return the data to the active file system.
CUse the volume recovery queue to restore the volume.
DUse an aggregate snapshot to revert the aggregate to an earlier state.
You are asked to replicate 15 of 20 volumes and the network configuration of your storage virtual machine to your other data center.
In this scenario, which NetApp technology should you use?
ASnapMirror Synchronous
BSVM DR
CMetroCluster
DSVM peering
A customer asks what is the correct way to configure an ONTAP system for multi-tenancy. The customer wants to serve data and also protect data using
SnapMirror from tenant A using network A and from tenant B using network B.
In this scenario, which statement is correct?
AThe customer must use different VLANs for the two tenants.
BThis setup can only work if tenant A and tenant B use a shared network infrastructure.
CThe customer must set up two different IPspaces for the two tenants.
DEach node can only communicate with tenant A or tenant B, but not with both at the same time.
While troubleshooting client access issues to a CIFS share, you notice that the issue only occurs when the data LIF that the clients are accessing is on a specific node in the cluster.
In this scenario, which configuration should you review to determine why this issue is happening?
Acluster health
BKerberos
Cshare path
Dexport policies

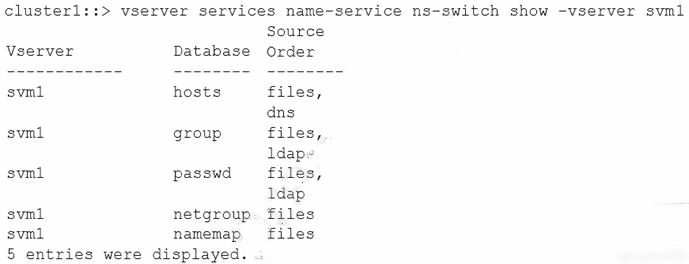

Referring to the exhibit, the UNIX user "prof1" will be looked up in which source first?
Anis
Bdns
Cldap
Dfiles
A customer receives the message shown below in their EMS logs.
Tue Jun 27 18:34:18 CEST -
[netapp-ct1: cp_worker: wafl.cp.toolong:error]: Aggregate AG1_NTAP_PROD experienced a long CP.
Tue Jun 27 18:37:10 CEST -
Which two data sources do you use to explain this message? (Choose two.)
AONTAP System Manager
BPerformance Archive
CActive IQ Unified Manager
Dmgwd.log
What are two reasons to use HTTPS as the transport method for AutoSupport delivery for Active IQ? (Choose two.)
AOnly HTTPS transfers are compressed.
BAutoSupport OnDemand (AOD) is supported.
CHTTPS is encrypted.
DHTTPS does not use a standard port.
You want to use the supported method to upgrade the ONTAP version of a Cloud Volumes ONTAP instance from ONTAP 9.5 to ONTAP 9.6.
In this scenario, which NetApp tool accomplishes this task?
ACloud Manager
BCloud Insights
CActive IQ Unified Manager
DONTAP System Manager

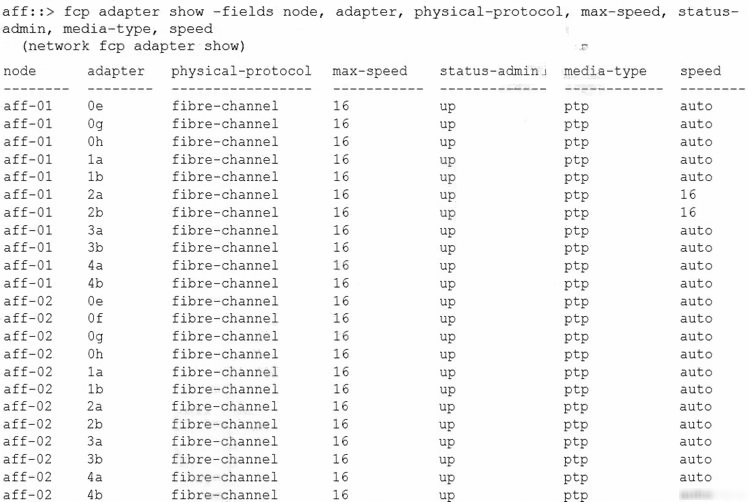

A customer is trying to enable NVMe and wants to use the FC adapters in the controllers but cannot enable the protocol.
Referring to the exhibit, what is causing the problem?
AThere are no FC adapters installed with the speed set to 32Gbps.
BThere are no FC adapters installed with a physical protocol set to NVMe.
CThere are no FC adapters installed with a max-speed of 32Gbps.
DThere are no FC adapters installed with a media type of NVMe.
A customer ordered a FAS2720 cluster with 8 TB SATA drives. The customer wants to use the Advanced Drive Partitioning (ADP) feature to avoid consuming the high capacity drives for the root aggregate. Before you use the cluster setup, you issue the aggr status command and notice that ADP is not being used.
In this scenario, what would you use to implement ADP?
Aloader prompt
Bspecial boot menu
Cnodeshell
DSP prompt

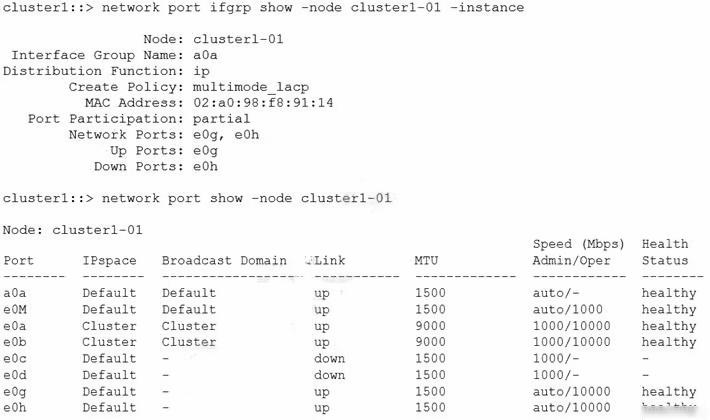

After a network card was replaced in an ONTAP node, you see the output shown in the exhibit.
What is the problem?
AThe interface group is configured in single mode.
BOne physical port is not cabled.
COne physical interface is broken.
DOne physical interface is mis-cabled.
What are two supported cabling methods for a NetApp HCI compute node? (Choose two.)
A1-cable configuration
B2-cable configuration
C6-cable configuration
D4-cable configuration
You receive the error shown below on a FAS2750 HA pair.
Mon Jun 24 00:27:30 UTC [NetappA: scsi_cmdblk_strthr_admin: scsi.cmd.checkCondition:error]: Unknown device 0a.00.99:
Check Condition: CDB 0x12: Sense Data SCSI:hardware error - (0x4 - 0x44 0x0 0x0) (0).

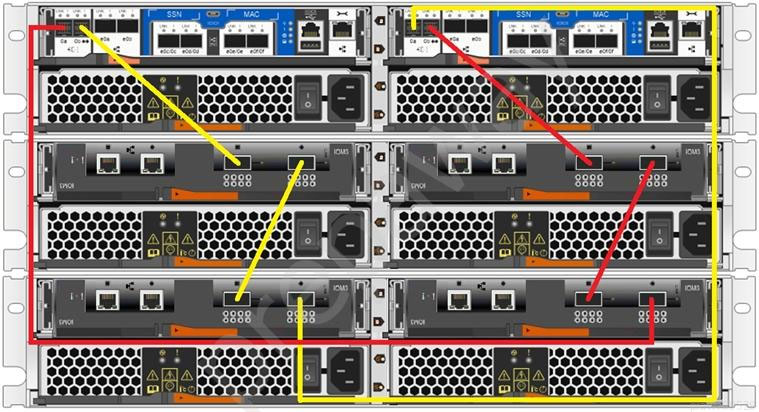

The system is cabled as shown in the exhibit.
What should you do to clear the error?
AReplace the cable connected to controller A's 0a port.
BReplace the controller of controller B.
CReplace the controller of controller A.
DRe-cable the system per the FAS2750 installation guide.
