DiffServ assigns voice and video to different service classes so they receive appropriate forwarding treatment. Voice is typically marked EF and carried in a low-latency priority queue, while video is commonly marked AF41 and placed in a separate bandwidth-guaranteed queue. Within an AF class, AF41, AF42, and AF43 represent low, medium, and high drop precedence, respectively.

Cisco Expressway-C and Expressway-E provide Mobile and Remote Access (MRA) for endpoints outside the enterprise network. The pair enables secure firewall traversal and access to Unified CM collaboration services over the internet without requiring users to establish a VPN connection.

A Shadow location enables a SIP intercluster trunk to exchange Enhanced Locations Call Admission Control (CAC) information between Unified CM clusters. It is a special location with no links to other locations and no bandwidth allocations.

Cisco Unified Communications Manager uses the phone MAC address, with punctuation removed, to form its per-device configuration filename. For Cisco SIP phones using XML configuration, the format is SEP<mac>.cnf.xml; therefore the MAC address produces SEP003096D2D5CB.cnf.xml. The older SIP<mac>.cnf format is specific to 7940/7960 SIP phones.

VoIP bearer traffic should be marked with DSCP Expedited Forwarding (EF) so it receives priority treatment, and packet loss must be limited to no more than 1% to preserve voice quality. Cisco guidance targets one-way latency at 150 ms and jitter below 30 ms.

Cisco Unified Communications Manager uses DNS to translate a SIP trunk’s configured fully qualified domain name into the IP address used to reach the trunk destination.

Cisco Unity Connection retains a mailbox’s Message Waiting Indicator (MWI) status when the mailbox is moved from one mailbox store to another. An active MWI is not itself a reason for the move to fail.

Cisco Unified Border Element provides the standard SBC functions of interworking, security, and demarcation, which encompass DTMF interworking, SIP security, and address hiding. Cisco specifically identifies voice policy as an additional CUBE capability, making it the distinguishing feature.

Cisco’s methodology uses performance tests to measure the CPU, memory, and other resource consumption of each product function at varying load levels. Its traffic-engineering model uses busy-hour call attempts (BHCA); in the relevant Collaboration System SRND methodology, system BHCA is the user BHCA multiplied by the number of users. Cisco Collaboration System 10.x SRND—Collaboration Solution Sizing Guidance

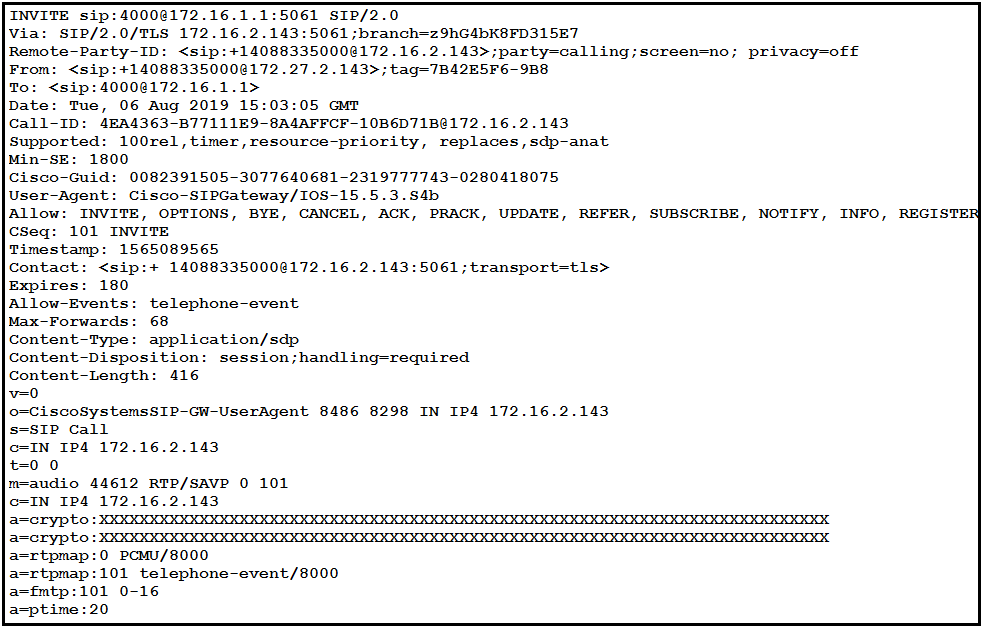

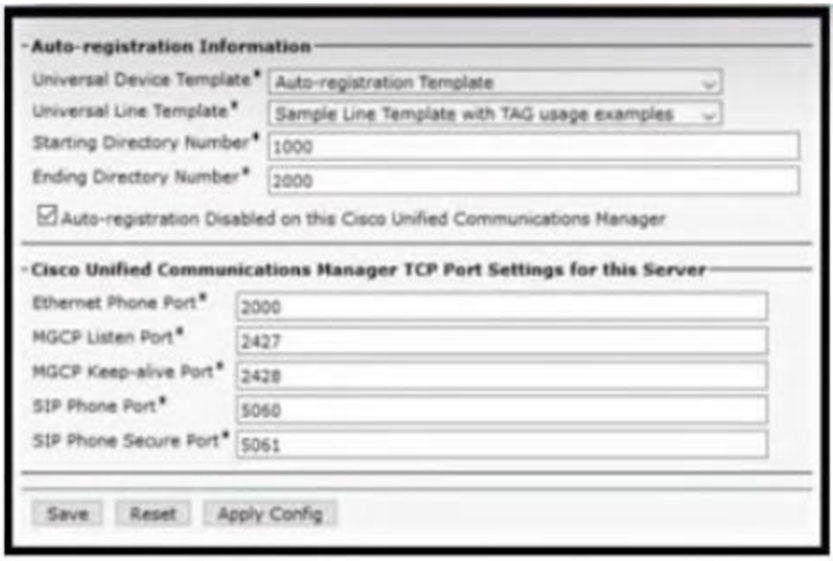

Cisco Unified Communications Manager self-provisioning requires auto-registration parameters to be configured on the publisher server. Enabling it requires clearing the Auto-registration Disabled on this Cisco Unified Communications Manager checkbox; changing the SIP secure port is normally unnecessary when the default ports are in use.

platform qos trust extend sends CDP information that places the Cisco IP phone’s access port in trusted mode for tagged traffic. Adding cos and a CoS value instead instructs the phone to mark tagged ingress traffic with that CoS value.

Webex Calling locations are configured with PSTN connectivity. A premises-based PSTN option using a Local Gateway allows an organization to keep its existing PSTN provider for local calling. Cisco: Configure trunks, route groups, and dial plans for Webex Calling

Cisco Expressway provides secure firewall traversal for remote users and facilitates secure business-to-business collaboration. Cisco documents Expressway as providing secure firewall traversal and supporting business-to-business communications.

The Drop Ad Hoc Conference service parameter prevents toll fraud when an internal conference controller disconnects while external callers remain connected. Configuring it to end the conference when no OnNet party remains, or when the conference controller leaves, prevents the external participant from retaining the conference connection to place a premium-rate call.

A third-party CA signs a certificate request created by the server that will use the certificate. The CSR is generated and downloaded from each applicable Cisco UCM or Cisco Unity Connection server, then provided to the CA so it can issue the signed certificate.

Cisco Unified CM remains in the SIP signaling path for an on-net direct-media call, even though RTP media flows directly between the phones. The called phone sends a 180 Ringing response to Unified CM, and Unified CM sends a corresponding 180 Ringing response to the calling phone. The same two-leg signaling model produces separate BYE requests when the call is released.

RSVP-enabled locations provide topology-aware call admission control for complex WAN designs, including fully meshed networks. RSVP reserves bandwidth along the selected media path, allowing Cisco Unified CM to make admission decisions that reflect the actual path rather than a simple hub-and-spoke bandwidth model.

Cisco Webex Incoming call permissions manage the types of calls that can be received, including collect calls. They can therefore be configured to allow users to receive collect calls.

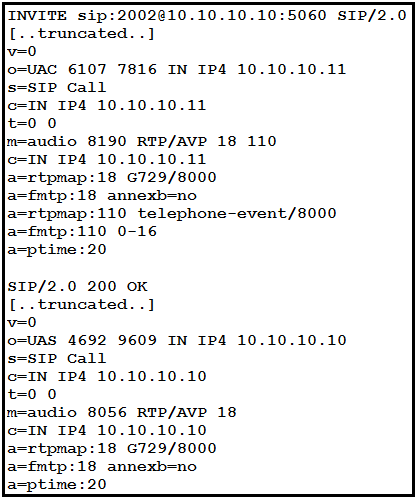

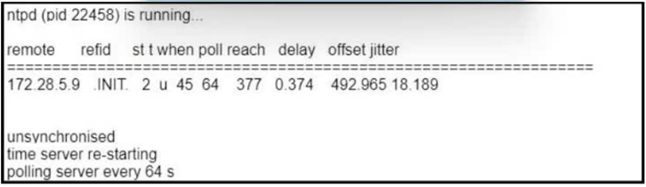

Cisco UCM uses NTP over UDP port 123. For CUCM 9.x and later, an NTPv4 source is required; an NTPv3 response can leave the system unsynchronized even though NTPv4 is generally backward-compatible. Cisco recommends a Linux-based external NTP server (or Cisco IOS/IOS XE) configured for NTPv4.

Cisco Expressway Mobile and Remote Access provides secure firewall traversal and VPN-less, off-premises access to enterprise collaboration services for remote users and supported devices. Cisco documentation describes MRA as providing secure firewall traversal and enabling remote endpoints to use Unified CM collaboration services outside the enterprise network.

A URI dial plan uses SIP URI destinations, whose user@domain structure resembles an email address. E.164 instead uses internationally formatted telephone numbers; DNS and H.323 do not define this email-like dial-plan destination format.

Scavenger traffic receives less-than-best-effort treatment and is marked with DSCP CS1 (value 8); this lets it be placed in the minimal-bandwidth queue and be deprioritized during congestion.

Cisco CallManager SNMP is the UCM application-specific SNMP service and must be activated manually in Cisco Unified Serviceability after installation before it can provide CallManager management information through SNMP.
