300-615 DCIT: Troubleshooting Cisco Data Center Infrastructure

By Cisco · Question Mode

QuestionQ31

Network

Question Image

Question Image

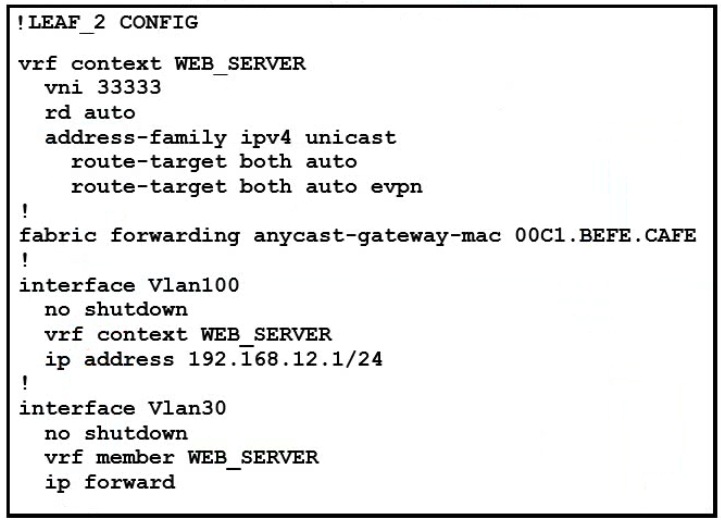

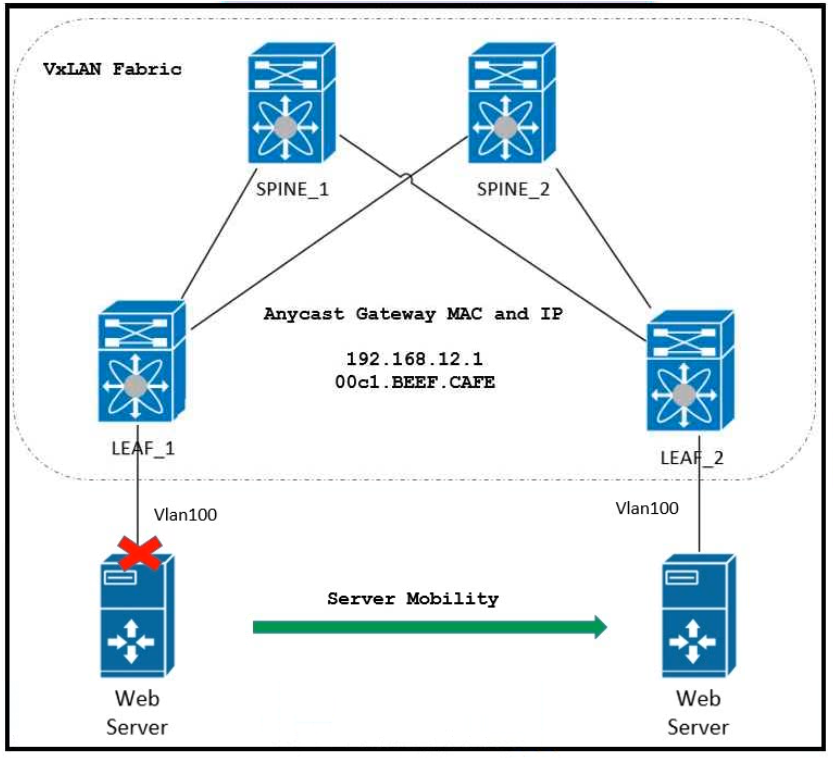

Refer to the exhibit. To prevent a service interruption, an engineer must move the server from LEAF_1 to LEAF_2. After performing the test, the engineer observed that LEAF_2 did not forward network traffic into the VXLAN fabric. BGP, the NVE interface, and the VNI were verified as configured correctly. Which two actions must be performed on LEAF_2 to fix the issue?

Choose two
Explanation

A host-facing SVI that provides a distributed VXLAN anycast gateway must be configured with fabric forwarding mode anycast-gateway; VLAN 100 has the anycast gateway IP but is missing that command. The fabric-wide anycast gateway MAC must also be identical on every VTEP. LEAF_2 uses 00C1.BEFE.CAFE, which does not match the required 00C1.BEEF.CAFE, so its MAC address must be corrected.
