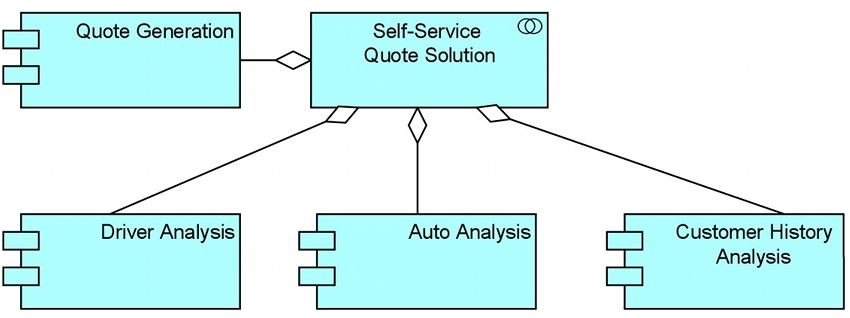

Consider the following diagram representing part of a key PRO-FIT capability: self-service online price quotes for its auto insurance customers:
Which of the following answers best interprets this diagram?
AThe Self-Service Quote Solution is an application service that uses four separate application components
BThe Self-Service Quote Solution is an application collaboration that includes four application components that work together
CThe Self-Service Quote Solution is an application component that accesses four different types of data objects
DThe Self-Service Quote Solution is an application component that collaborates with four service modules

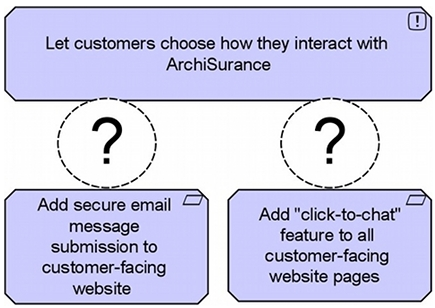

The following diagram uses ArchiMate Motivation Extension concepts. The concepts at the bottom of the diagram fulfill the concept at the top of the diagram.
What is the correct relationship between the bottom concepts and the top concept to show this situation?
Aaccess
Brealize
Cspecialize
Daggregate

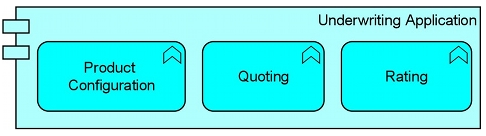

Consider the following diagram:
What does the diagram express about the Underwriting Application?
AIt has three distinct components
BIt processes three different types of data objects
CIt performs three different functions
DIt groups together three components that are not a part of the Underwriting Application
The following diagram shows an example of the use of the Migration viewpoint:
Which of the following best describes a reason for using this viewpoint?
ATo model the management of architecture change
BTo help determine the priorities of implementation projects
CTo relate programs and projects to the parts of the architecture that they implement
DTo help in planning the transition from the current architecture to a desired future architecture
Question 6
The Application of the ArchiMate language
0
Question 7
The Application of the ArchiMate language
Question 8
The concepts of Enterprise Architecture
Question 9
The concepts of ArchiMate®
Question 10
The concepts of an architecture framework
Question 11
The Application of the ArchiMate language
Question 12
The Application of the ArchiMate language
Question 13
The Application of the ArchiMate language
Question 14
The Application of the ArchiMate language
Question 15
The Application of the ArchiMate language
Question 16
The Application of the ArchiMate language
Question 17
The Application of the ArchiMate language
Question 18
The concepts of ArchiMate®
Question 19
The Application of the ArchiMate language
Question 20
The concepts of ArchiMate®
Question 21
The Application of the ArchiMate language
Question 22
The Application of the ArchiMate language
Question 23
The Application of the ArchiMate language
Question 24
The Application of the ArchiMate language
Question 25
The Application of the ArchiMate language
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0

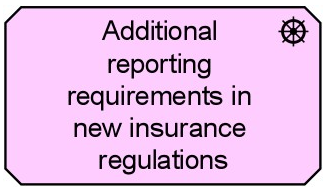

Consider the following symbol, which represents information about a transformation project at ArchiSurance involving systems and business processes:
Which of the following statements correctly expresses the meaning of the symbol?
AThe ArchiSurance legal department has determined the impact of the new regulations
BThe project must satisfy requirements for additional reporting
CThe additional reporting requirements in new insurance regulations are driving change at ArchiSurance
DThe project's systems must be flexible enough to accommodate any future changes in reporting requirements

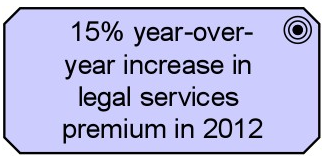

Consider the following symbol, which represents information about a transformation project at ArchiSurance. Note that premium in this context means the total revenue ArchiSurance receives from legal services insurance premium payments:
Which of the following statements correctly expresses the meaning of the symbol?
AArchiSurance has attributed a 15% increase in premium to the transformation project in 2012
BThe increased premium revenue created by completion of the transformation project will motivate significant change in the ArchiSurance Legally Yours division
CArchiSurance has set a goal to increase legal services premium by 15% in 2012, as compared to the previous year
DArchiSurance has a requirement to increase legal services premium by 15% in 2012

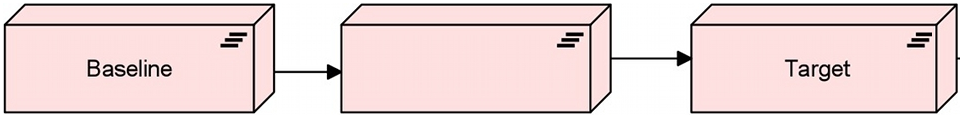

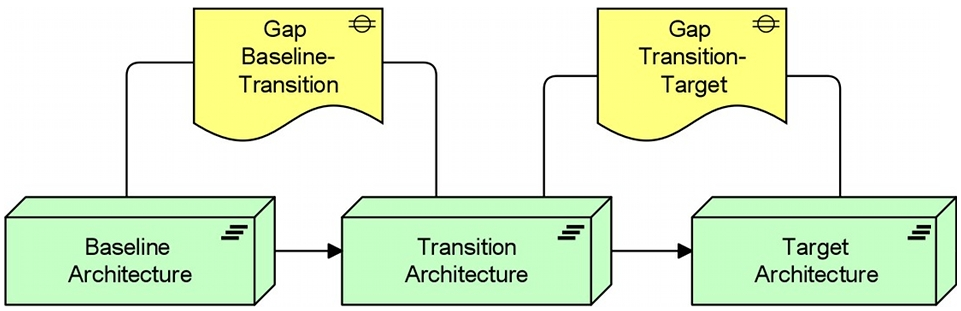

Consider the following diagram, which represents a migration from a Baseline to a Target Architecture:
Which of the following answers best interprets the unlabeled symbol in the middle of the diagram?
AIt represents a relatively stable intermediate state during the migration from the Baseline to the Target Architectures
BIt represents a project that progresses the architecture from Baseline to Target
CIt represents the deliverables necessary to transform the architecture from Baseline to Target
DIt represents a conceptual point of transition between the two architectures, but one that is unlikely to exist in reality for more than an instant

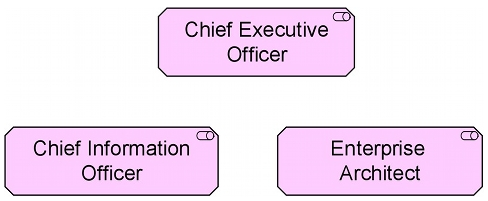

The following diagram shows a typical group of stakeholders:
Which ArchiMate viewpoint abstraction level would support these stakeholders for the purpose of change management?
ACoherence
BDesigning
CDetails
DOverview
According to the ISO/IEC 40210 standard, which of the following statements is NOT correct?
AA view conforms to a viewpoint
BA viewpoint always addresses one or more stakeholders
CA concern is always important to one or more stakeholders
DA viewpoint always covers exactly one concern

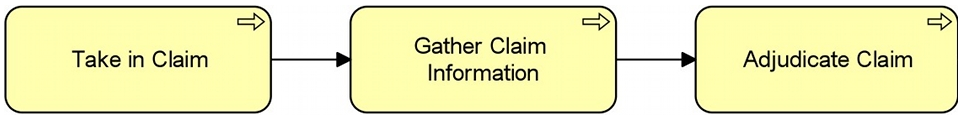

Consider the following diagram:
What does the diagram express about the relationship between the three processes?
ATake in Claim passes information to Gather Claim Information, and Gather Claim Information passes information to Adjudicate Claim
BTake in Claim triggers Gather Claim Information, and Gather Claim Information triggers Adjudicate Claim
CTake in Claim is used by Gather Claim Information, and Gather Claim Information is used by Adjudicate Claim
DThe three processes may execute in parallel, although they don't have to

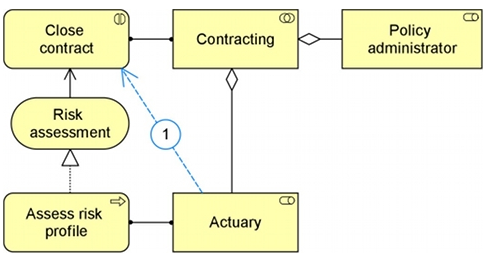

Consider the following diagram:
What is the strongest structural relationship that can be derived from business role Actuary to business interaction Close contract (indicated by number 1 in the diagram)?
AAssignment
BAggregation
CRealization
DUsed by

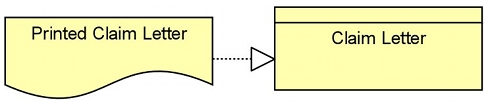

After a claim is processed, ArchiSurance notifies the claimant with a Claim Letter. Consider the following diagram:
Which of the following answers correctly interprets the diagram?
APrinted Claim Letters are scanned and stored online
BClaim letters have two forms: printed and electronic
CA Printed Claim Letter realizes a Claim Letter business object
DCopies of Printed Claim Letters are stored in a Claim Letter filing cabinet
EPrinted Claim Letters are read from the Claim Letter object

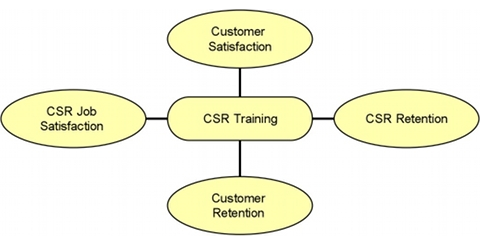

Consider the following diagram, in which CSR stands for Customer Service Representative:
Which of the following statements is expressed by the diagram?
ACSR Training has four key modules, each focusing on a different topic
BThe CSR Training business service is valuable in four different ways
CCSR Training is a basic service, upon which four sub-services depend
DCSR Training accesses four different types of information

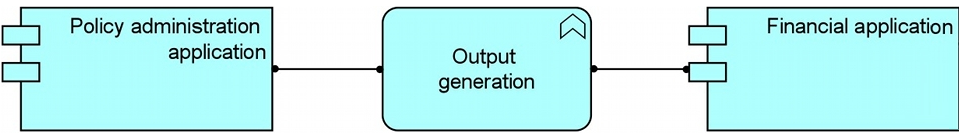

Consider the following diagram:
Which of the following statements best interprets this diagram?
AOutput generation is explicitly modelled as the collective behavior of the application components: Policy administration application and Financial application
BOutput generation is an application service that is realized in a joint effort of the Policy administration application and the Financial application
COutput generation is behavior that is present in the Policy administration application as well as in the Financial application
DOutput generation represents the application collaboration of the Policy administration application and Financial application
Which of the following statements about ArchiMate viewpoint classification is correct?
AThere are three purpose dimensions and three abstraction levels
BThere are two purpose dimensions and three abstraction layers
CThere are four purpose dimensions and two abstraction levels
DThere are three purpose dimensions and four abstraction layers

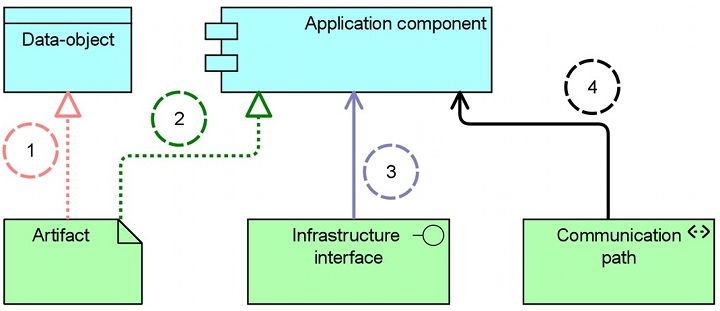

Consider the following diagram with four relationships modeled:
Which relationship modeled in the diagram is not allowed to connect the application layer with the technology layer?
ARelationship 1
BRelationship 2
CRelationship 3
DRelationship 4
Which concept is typically used to model hardware systems such as mainframes, PCs, or routers?
ASystem software
BNetwork
CArtifact
DDevice

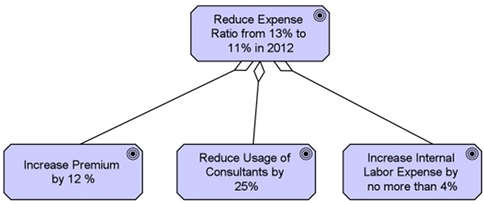

Consider the following diagram:
Which answer most accurately interprets what the diagram indicates about the goal "Reduce Expense Ratio from 13% to 11% in 2012"?
AThe goal is decomposed into three other goals
BThe goal is similar to the three other goals
CThe goal must be achieved before any of the other three goals is achieved
DThe goal will be achieved if at least one of the other three goals is achieved in 2012

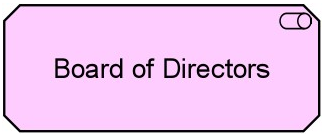

Consider the following symbol, which represents information about a transformation project at ArchiSurance involving systems and business processes:
Which of the following statements correctly expresses the meaning of the symbol?
AThe Board of Directors will use the transformed systems
BThe Board of Directors has a business role in the project
CThe transformed systems will store information of interest to the Board of Directors
DThe Board of Directors has concerns about the project

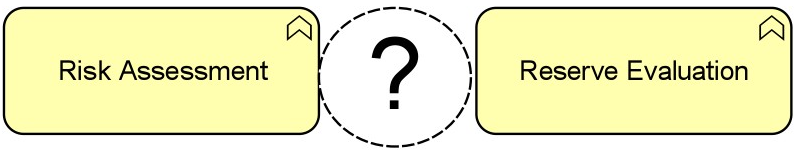

At ArchiSurance, risk assessment is part of an activity used to determine the adequacy of the company's financial reserves against future claims and fluctuations in the value of its investments.
Which ArchiMate relationship should be used to express the forwarding of risk assessment findings for the reserve evaluation process?
AAccess
BAssignment
CAssociation
DFlow
Consider the following diagram, which conforms to a standard ArchiMate viewpoint that uses a simplified notation:
To which standard ArchiMate viewpoint does this diagram conform?
AElementary viewpoint
BIntroductory viewpoint
CCoherence viewpoint
DDeciding viewpoint
Which Implementation and Migration Extension viewpoint is used to model the management of architecture change?
AMigration viewpoint
BImplementation and Migration viewpoint
CBusiness Function viewpoint
DProject viewpoint

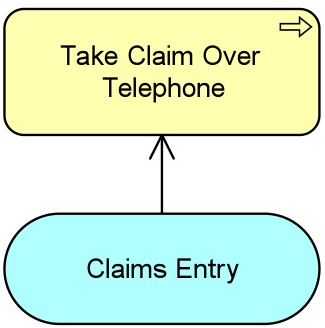

Consider the following diagram:
Which of the following answers best interprets the diagram?
AThe Claims Entry application service realizes the Take Claim Over Telephone business process
BThe Claims Entry application service is used by the Take Claim Over Telephone business process
CInformation flows from the Claims Entry application to the Take Claim Over Telephone business process
DThe Claims Entry business service is used by the Take Claim Over Telephone team
What Implementation & Migration Extension concept is used to model the outcome of an analysis of the differences between two architectural states?
