QuestionQ66

Conduct Custom Monitoring within a Nutanix Multicloud Environment

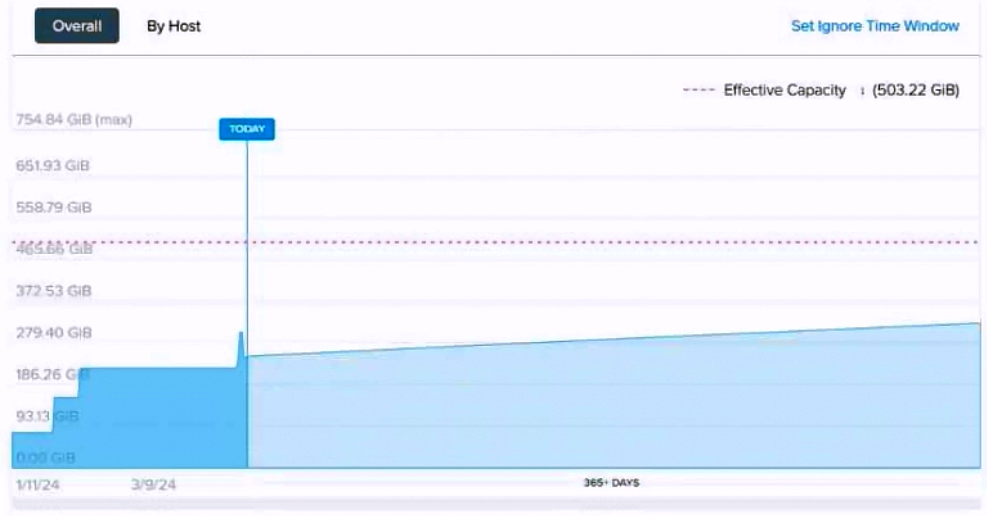

Refer to the exhibit.

Question Image

An administrator is reviewing the memory cluster runway diagram shown in the exhibit. The environment is based on three hosts. Each host is configured as follows:

  • CPU: 2x Intel Xeon Gold 8 cores at 2.6 GHz
  • RAM: 256 GB
  • Storage: 2x 1.92 GB SSD, 4 x 4 TB HDD

The Intelligent Operations feature was activated one month ago, with no further configuration.

What does the dotted red line represent?

  • A It is the usable capacity based on cluster configuration options.
  • B It is the maximum memory the administrator can assign to VMs.
  • C It is the default trend analysis static threshold that can be manually set.
  • D It is the calculated memory oversubscription limit for currently running VMs.
Explanation

Effective memory capacity is the usable cluster memory calculated from the current cluster configuration after applicable system and availability reservations. It is used by Capacity Runway as the capacity boundary for the forecast, rather than as a VM-assignment or memory-oversubscription limit.
