A customer is deploying a new 8-node NetApp ONTAP cluster for their SAN workloads using FCP, NVMe/FC, and NVMe/TCP.
In this scenario, which statement is true?
ANVMe/TCP supports a maximum of two LIFs per node.
BNVMe/FC and FCP require different FC ports.
CNVMe/FC and NVMe/TCP must be configured in separate SVMs.
DNVMe/TCP can only run at 32Gbps or faster.
0
Question 2
ONTAP® SAN solution assessment
0
Question 3
ONTAP SAN implementation testing and troubleshooting
0
Question 4
ONTAP SAN implementation testing and troubleshooting
An administrator in configuring a NetApp SAN with iSCSI LIFs that fail over between HA partner nodes. The customer has several NetApp clusters of different models and types.
Which cluster meets this requirement?
AONTAP Select
BASA
CAFF
DFAS
A customer is using a new two-node NetApp All SAN Array (ASA) configuration with SnapMirror active sync. To verify if everything is set up correctly, the customer is looking at the number of paths in their ESXi hosts.
How many paths should the customer see?
A4 Active/Optimized, 4 Active/Unoptimized
B6 Active/Optimized, 2 Active/Unoptimized
C2 Active/Optimized, 6 Active/Unoptimized
D8 Active/Optimized, 0 Active/Unoptimized
An administrator provisions several LUNs on a four-node NetApp AFF cluster using default settings. Each AFF node has four FC LIFs. The configuration is modified to limit the target paths to two LIFs per node.
Which NetApp ONTAP command will verify initiator group visibility for each LIF?
Alun show
Blun igroup show
Clun portset show
Dlun mapping show
Which NetApp ONTAP option enables automatic host-side space management for a LUN?
Aspace-allocation
Bspace-reserve
Cresize
Dalua
Question 6
ONTAP SAN implementation and configuration
0
Question 7
ONTAP SAN Concepts
Question 8
ONTAP SAN implementation testing and troubleshooting
Question 9
ONTAP SAN Concepts
Question 10
ONTAP SAN Concepts
Question 11
ONTAP SAN Concepts
Question 12
ONTAP SAN implementation testing and troubleshooting
Question 13
ONTAP SAN implementation and configuration
Question 14
ONTAP SAN implementation testing and troubleshooting
Question 15
ONTAP SAN implementation and configuration
Question 16
ONTAP SAN implementation testing and troubleshooting
Question 17
ONTAP® SAN solution assessment
Question 18
ONTAP® SAN solution assessment
Question 19
ONTAP SAN implementation testing and troubleshooting
Question 20
ONTAP SAN Concepts
Question 21
ONTAP® SAN solution assessment
Question 22
ONTAP SAN implementation and configuration
Question 23
ONTAP SAN implementation and configuration
Question 24
ONTAP SAN Concepts
Question 25
ONTAP SAN implementation and configuration
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
A customer uses several node types in their SAN environment. They want to migrate iSCSI LIFs without disruption.
Which command can achieve this?
ARun ucadmin modify on a NetApp All SAN Array (ASA) system.
BRun network interface migrate on a NetApp FAS system.
CRun network interface migrate on a NetApp AFF system.
DRun network interface migrate on a NetApp All SAN Array (ASA) system.
A customer wants to use NVMe/FC to connect three Linux hosts to their NetApp ONTAP cluster.
What is the minimum speed for an HBA in an ONTAP controller in this scenario?
A32Gbps
B8Gbps
C4Gbps
D16Gbps
A storage engineer is required to provide NetApp site design documentation to show that the NetApp ONTAP SAN solution was delivered as intended.
Which NetApp tool can the storage engineer use to automate the creation of a difference report?
AActive IQ Config Advisor
BNetAppDocs
CHarvest
DActive IQ OneCollect
An engineer has a 100GB volume with the space guarantee set to volume and fractional reserve set to 100. The snapshot reserve is disabled. The volume contains two 20GB LUNs, and each LUN has the space guarantee enabled and is 50% full. The engineer creates a snapshot of the volume, and no data is written or modified after the snapshot is taken.
What is the available space in the volume?
A60GB
B40 GB
C20GB
D80GB
A customer deploys an SVM for FCP with four LIFs across two fabrics. Equal client traffic is seen across all four LIFs.
In this scenario, how is the traffic across the active, unoptimized paths forwarded to the node hosting the LUN?
AHA interconnect
BFC network
CCluster network
DPeering network
Which two NetApp features provide synchronous data replication between two sites for SAN workloads with automatic failover in case of a site disaster? (Choose two.)
ASnapMirror Synchronous
BSnapMirror active sync
CSnapMirror SVM
DMetroCluster IP

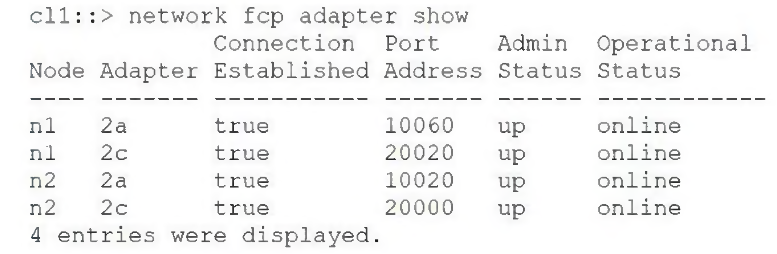

An engineer is troubleshooting FC connectivity issues on a customer’s system and sees the following output from the network fcp adapter show command:
According to the output, what is the domain ID of the switch that is connected to port 2a of node n2?
AID 20
BID 1
CID 2
DID 10
A customer has demanding database servers, which require larger I/O queue counts and queue depths.
What should be done to increase these parameters for certain hosts?
AAdd the hosts to the subsystem with high priority.
BDecrease the QoS policy for the volumes that are in use by the namespaces.
CIncrease the QoS policy for the given namespace.
DIncrease the queue depth for the given namespace.
An administrator is troubleshooting a SAN network issue where the NVMe/TCP LIF keeps disconnecting.
Which command helps the administrator to investigate this issue?
Aipspace show
Bvserver nvme subsystem show
Ccluster ping-cluster
Dnetwork port reachability show
A customer has recently installed a new NetApp AFF system and Cisco Nexus 9000 Series switches for their SAN workload. The administrator is tasked with configuring interface groups for port-based load balancing.
Which two commands are required? (Choose two.)
Anetwork port ifgrp create -distr-func port in NetApp ONTAP software
Bport-channel load-balance src-dst 14port on the switch
Cchannel-group mode passive on the switch
Dnetwork port modify -flowcontrol-admin false in NetApp ONTAP software
An engineer has just installed a new MetroCluster IP system for their SAN environment and wants to verify if all backend network connections are set up and working correctly.
Which two commands must the engineer run to verify the configuration? (Choose two.)
Ametrocluster check run
Bmetrocluster check connection show
Cmetrocluster check cluster show
Dmetrocluster check lif show
A customer wants to connect a NetApp ONTAP based storage system to Cisco Nexus switches using 100GB optical cables.
Which NetApp tool should be consulted to determine if this is a supported configuration?
AHardware Universe
BInteroperability Matrix Tool
CActive IQ Config Advisor
DActive IQ Digital Advisor
During an iSCSI deployment, the customer requests a change of front-end network connections on the NetApp ONTAP cluster from twinax cables to fiber-optic cables.
Which two NetApp tools would an administrator use to verify the supported port speeds and transceivers? (Choose two.)
AHardware Universe to determine supported transceivers
BInteroperability Matrix Tool to determine supported transceivers
CInteroperability Matrix Tool to determine supported port speeds
DHardware Universe to determine supported port speeds
A four-node NetApp ONTAP SAN cluster has been deployed. After installation, the engineer wants to verify cabling.
Which NetApp tool should the engineer use?
AHardware Universe
BActive IQ Config Advisor
CNetApp Host Utilities package
DInteroperability Matrix Tool
What is the maximum size for a LUN in NetApp ONTAP 9.14.1 software?
A128TiB
B64TiB
C16TiB
D300TiB
During expansion planning for a 10-node cluster running NetApp ONTAP 9.14.1 software, which uses SAN and NAS, how many additional nodes can be added to this cluster?
A2
B6
C4
D8
When using tagged VLANs on Cisco Nexus switches for NVMe over TCP, which two changes must be made to enable jumbo frames? (Choose two.)
AModify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9000.
BModify the Cisco Nexus switches to use an MTU of 9216.
CModify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9216.
DModify the Cisco Nexus switches to use an MTU of 9000.
An administrator finishes an installation of a new NetApp ASA system at the customer site and creates a new LUN. The customer wants to restrict the access of the LUN to specific LIFs.
Where would the administrator configure this?
APortset
Bigroup
CSelective LUN Map
DZoning
Which NetApp feature presents LUNs only within the HA pair?
AConsistency group
Bigroup
CSubsystem
DSelective LUN Mapping
A customer wants to enable CHAP authentication on their iSCSI sessions.
Which command should be used to set up the appropriate security policies and passwords?
