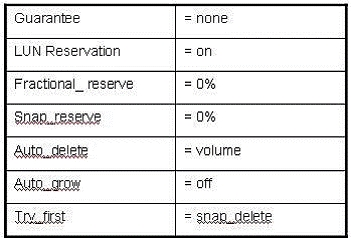

The table highlights the space management policy that is defined for a particular flexvol, acmevol. Based on the information provided in the table, which action will the storage controller take when it runs out of space in the volume?
AIt will try deleting Snapshot copies first to reclaim space before trying to grow the volume.
BIt will grow the volume before deleting Snapshot copies.
CIt will only try deleting Snapshot copies to reclaim space and will not grow the volume.
DIt is irrelevant since fractional_reserve is 0%.
Which utility on Windows 2003 and Windows 2008 can be used to collect information about firmware and driver versions for an Emulex LP1xxxx/LPe1xxx HBA?
AEMutil
BSANutil
Cfcp config
DSANsurfer
EHBAnywhere
Which utility on Solaris 10 can be used to collect information about firmware and driver versions for an Emulex LP1xxxx/LPe1xxxx HBA?
AEMutil
BSANutil
Chbainfo
DSANsurfer
EHBAnywhere
Which utility on Solaris 10 can be used to collect information about firmware and driver versions for a Qlogic QLAxxx/QLExxxx HBA?
AEMutil
BSANutil
Ccfgadmin
DSANsurfer
EHBAnywhere
Question 6
Configure NetApp Storage Systems
0
Question 7
FC and Ethernet Switch configuration
Question 8
FC and Ethernet Switch configuration
Question 9
SAN best practices: VM best practices regarding data deduplication, thin provisioning, alignment, storage layout, backup and recovery and NPIV
Question 10
FC and Ethernet Switch configuration
Question 11
FC and Ethernet Switch configuration
Question 12
NetApp storage systems
Question 13
SAN best practices: VM best practices regarding data deduplication, thin provisioning, alignment, storage layout, backup and recovery and NPIV
Question 14
Host configuration
Question 15
Plan zoning configuration
Question 16
Configuration information collection for:
Question 17
NetApp storage systems
Question 18
Plan iSCSI configuration
Question 19
Switch
Question 20
FC and Ethernet Switch configuration
Question 21
Configuration information collection for:
Question 22
NetApp storage systems
Question 23
NetApp storage systems
Question 24
NetApp storage systems
Question 25
NetApp storage systems
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ad
Want a break from the ads?
Become a Supporter and enjoy a completely ad-free experience, plus unlock Learn Mode, Exam Mode, AstroTutor AI, and more.
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
Ask AstroTutor
0
An organization currently has a NetApp Fibre Channel block-based solution. With limited budget and resources, they want to create a new disaster recovery site that utilizes a NetApp solution. What would the optimal solution include?
ASnapMover and Fibre Channel at the disaster recovery site for all hosts
BSnapMirror and iSCSI at the disaster recovery site for all hosts
CFibre Channel at both locations using ftp to replicate storage
DMetroCluster and NAS
A company has a Fibre Channel environment and wants to connect a new host in a remote data center using 50/125um OM2 multi-mode fiber cable and needs to support 2 Gb speeds. What is the maximum distance of the cable run supported in this situation?
A50/125um OM2 multi-mode fiber cable supports up to 500 meters at 2 Gb.
B50/125um OM2 multi-mode fiber cable supports up to 10000 meters at 2 Gb.
C50/125um OM2 multi-mode fiber cable supports up to 150 meters at 2 Gb.
D50/125um OM2 multi-mode fiber cable supports up to 300 meters at 2 Gb.

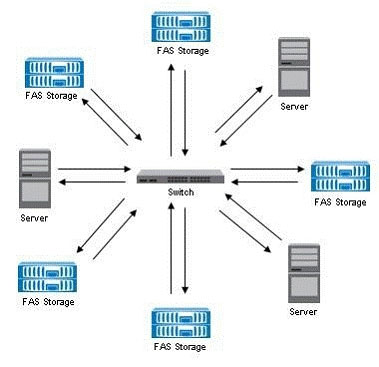

Click the Exhibit button.
Given the information provided in the diagram, what is the appropriate FC topology?
Apoint-to-point
Bswitched fabric
Carbitrated loop
Dring
Which FC SAN topology provides the best performance and scalability?
Acascade
Bcore-edge
Cfull mesh
Dpartial mesh

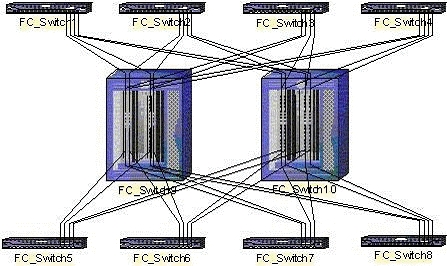

Click the Exhibit button.
Based on the diagram shown, what is the appropriate FC switch topology?
Afull mesh
Bcore-edge
Cfull cascade
Dpartial mesh
Click the Exhibit button.
Based on the diagram shown, what is the appropriate FC switch topology?
Acore-edge
Bfull mesh
Cpartial mesh
Dpartial cascade
A 200-GB LUN is created in an empty 500-GB volume with the volume guarantee option set to Volume. LUN reservation is enabled and the fractional reserve is set to 100 and scheduled snapshots are disabled. Directly after LUN creation, what is the maximum free space available in the volume?
A200 GB
B300 GB
C400 GB
D500 GB
A 100-GB thinly provisioned LUN is allocated to a Windows host. 100 GB of data is written into the LUN. The current capacity utilization on the disk array as well as the host is 100%. 50 GB of data is deleted from the LUN. Space reclaimer has NOT been run. What is the current capacity utilization on both the host and the disk array?
A50% on the host, 100% on the disk array
B100% on the host, 50% on the disk array
C50% on the host, 50% on the disk array
D100% on the host, 100% on the disk array
A customer has a four-node SUN cluster configuration. Each node has two, dual-ported HBAs. What is the minimum number of igroups that need to be created to map a LUN to the cluster?
A1
B2
C4
D8
Zoning by World Wide Port Name (WWPN) is deployed and a host HBA is replaced.
Which zone change needs to be made?
ANo changes are necessary.
BThe zone configuration should be changed to include the port to which the HBA is connected.
CThe zone configuration should be changed to include the WWPN of the new HBA; the old WWPN will be automatically dropped.
DThe zone configuration should be changed to include the WWPN of the new HBA and to remove the WWPN of the old HBA.
Which three protocols can be used for communications between a host running SnapDrive for Windows and the NetApp Storage Controllers? (Choose three.)
Ahttp:
Bhttps:
Cftp:
DRPC
Essh
Any newly installed system with Data ONTAP 7.3.1 supports which cfmode?
Adual_fabric only
Bsingle_image
Cpartner
Dmixed
A company has deployed a NetApp dual controller FAS3100 series with iSCSI. Currently, there are five Windows servers and three Novell NetWare servers connected to the IP SAN. The customer wants to connect an HP-UX server to the IP SAN.
Which cfmode allows all operating systems to co-exist in the IP SAN?
Asingle_image
Bstandby
Ccfmode not applicable
Ddual_fabric
Which native GUI switch tool is used to manage Brocade switches and directors?
ASAN Manager
BEnterprise Fabric Services
CDevice Manager
DWeb Tools
Which command will display which Brocade switches are connected into a fabric?
Afabricshow
Bswitchshow
Cshow fabric
Dconfigshow
Which command collects detailed diagnostic information from a Brocade FC switch?
Asupportshow
Bshowsupport
Cdiagshow
Dshowdiag
Which command on a NetApp storage controller will display the average latency time on a per LUN basis every five seconds?
Asysstat -i 5
Bsysstat -f 5
Cfcp stats -i 5
Dlun stats -i 5
Which command on a NetApp storage controller will display the average service time on a FC target port basis every five seconds?
Asysstat -i 5
Bsysstat -f 5
Cfcp stats -i 5
Dlun stats -i 5
A company has five Windows servers that are dual-attached, four Linux servers that are single-attached, and ten dual-attached Solaris servers. The company wants a highly available architecture. A dual controller FAS3100 series with all onboard FC ports connected to the fabric is being proposed. What is the total number of FC ports and what type of fabric should be deployed from the choices shown?
