Querying the TaskAgentPoolSizeSnapshots endpoint provides historical agent pool usage snapshots, revealing capacity exhaustion patterns over time. Viewing the pool consumption report at the organization level offers a summary of how agent pools are utilized across projects. Together, these two approaches directly diagnose pool exhaustion as a cycle-time cause.

Application Insights Smart Detection (Failure Anomalies) automatically monitors the rate of failed requests using machine learning and proactively alerts when there is an abnormal rise, without requiring you to author or maintain custom queries, thresholds, or alert rules. This built-in, automatic behavior satisfies the requirement to minimize administrative effort, whereas the Failures feature only provides manual investigation views, Azure Service Health covers Azure platform/service outages rather than app-level failures, and a custom Log Analytics-based alert would require ongoing manual query and threshold maintenance.

Referencing Azure Boards work items from a GitHub commit requires the "AB#" prefix on each ID; adding an explicit completion marker naming work item 456 specifically transitions only that item to Done while the plain AB# references still link all three work items to the pull request. Among the given choices, using the AB# format for all three IDs plus a separate completion statement for 456 is the closest match to this required syntax and behavior.

A post-deployment gate on the Production-A stage runs automatically after deployment completes and queries Azure Monitor for active alerts before Azure Pipelines marks that stage as successfully completed, which is the trigger for the pipeline to proceed toward Production-B. A pre-deployment gate on Production-B would check alerts before deploying to B rather than before Production-A is marked complete, and a manual approval doesn't automatically query Azure Monitor.

Sending diagnostic data to Log Analytics lets you use Azure Monitor's built-in log search alert rules to evaluate collected metrics (such as connection counts) and trigger notifications automatically, requiring no custom code. Streaming to an Event Hub would require building and maintaining a separate consumer application to process the stream and raise alerts, increasing development effort. Archiving to a storage account only retains diagnostic data for later analysis and does not support real-time alerting. Therefore, routing the diagnostic logs to Log Analytics is the lowest-effort way to configure an alert for a threshold like 10,000 simultaneous connections.

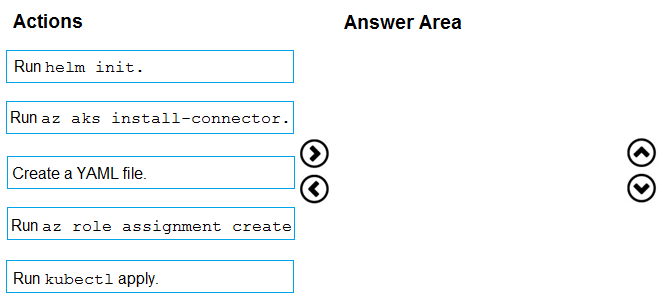

Helm v2 uses a client-server model where the Helm CLI communicates with a server-side component called Tiller that runs inside the Kubernetes cluster. Before Helm can package, install, or upgrade charts through the Azure DevOps Helm deploy task, Tiller must be installed into the target namespace (typically via 'helm init'), as it is responsible for executing the actual release operations against the Kubernetes API. Azure Container Registry is merely an external registry for storing images/charts, Chart is just the packaging artifact, and Kubectl is a command-line client rather than an in-cluster service, so none of those fulfill the requirement of an installable service within the AKS namespace.

Azure Pipelines lets you create a variable group in the project's Library and link it to an existing Azure key vault. When you link the variable group to Key Vault, only the secret names are stored in the variable group definition; the actual secret values are retrieved directly from Key Vault at pipeline run time via an authorized service connection with Get and List permissions. A variable group can be made available to all pipelines in the project, satisfying the requirement to reference vault1's secrets from every pipeline in Project1 while ensuring the secret values themselves are never persisted in the pipeline definitions.

Azure Security Center (rebranded as Microsoft Defender for Cloud) organizes its security recommendations by resource category, and the 'Compute and Apps' section specifically includes recommendations for Azure App Service web apps and Azure Functions, such as enabling managed identities, restricting FTP access, enforcing HTTPS, and using the latest runtime versions. This is distinct from Azure Log Analytics (a log query/data platform), Azure Event Hubs (a data streaming ingestion service), and Azure Advisor (a general best-practices advisor that lacks the specific 'Compute and Apps' navigation grouping used for security posture recommendations).

Azure Pipelines coordinates application deployment across a set of target machines using "deployment groups" — logical collections of machines running deployment agents. "Universal group" is an unrelated Active Directory group-scope concept, so the underlined term should be corrected to "deployment."

Web app deployment slots enable gradual rollout of new versions to a percentage of users through traffic distribution. This meets both requirements: new releases reach only a subset initially, and traffic can be gradually increased to the new version. Traffic Manager operates at DNS/region level and does not provide per-user percentage-based routing.

Detecting when usage deviates from 'normal patterns' requires a dynamic threshold alert, which uses machine learning to establish a baseline from historical data and trigger only on anomalous deviations, rather than a fixed static threshold. To minimize administrative overhead, the response to that alert—raising the logging level—must happen automatically rather than relying on a person to read an email and make the change manually. An Azure Automation runbook can be configured as the alert's action to automatically execute the required change (e.g., updating diagnostic/logging settings) whenever the dynamic threshold alert fires.

The "Time between re-evaluation of gates" setting controls the sampling interval used by deployment gates (e.g., automated checks like work item queries or Azure Monitor alerts) to determine how often gate functions are re-run and how long the system waits for gate success before timing out. It is unrelated to manual approval timeouts. The approval timeout — the setting that determines how long an approval request remains valid before the deployment fails — is configured separately on the approval itself (via the Timeout field in the approval's advanced options), not through the gates re-evaluation interval. Changing the gates re-evaluation time would not change the approval timeout from 2 hours to 8 hours, so the deployments would still fail after 2 hours rather than only after 8 hours.

The "Time between re-evaluation of gates" setting only controls the sampling interval — how often gates are polled for a result — not the overall timeout duration that determines when the approval/gate process fails. To change the point at which deployments fail due to a long-running approval, the timeout value itself (the "Timeout after which gates fail" setting, or the approval timeout policy) must be modified to eight hours. Since this solution changes the re-evaluation interval rather than the timeout duration, it does not resolve the issue of deployments failing after only two hours.

Under Pre-deployment conditions in an Azure Pipelines release, the Approvals settings include a Timeout option that defines how long an approval request can remain outstanding before it is automatically rejected, which in turn fails the deployment. Since the deployments were failing because this Timeout was set to two hours, updating the Timeout value to eight hours makes the deployment fail only when approvals exceed eight hours, which satisfies the required policy exactly.

The approval that must occur before deployment is a pre-deployment approval, configured under Pre-deployment conditions, and its Timeout value is what determines how long Azure Pipelines waits before failing the deployment due to a missing approval. Adjusting the Timeout setting under Post-deployment conditions has no bearing on the pre-deployment approval timeout, so the deployment would continue to fail after 2 hours rather than after the required 8 hours.

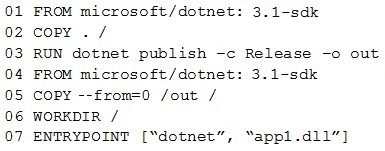

Line 4 contains the Dockerfile's base image declaration. To minimize image size, you should use a runtime image (aspnet runtime) rather than an SDK image, which includes build tools and is significantly larger. The runtime image is sufficient for running the already-compiled .NET Core application in production.

Selenium is a widely used open-source framework designed specifically for automating browser interactions and testing the user interface of web applications. It supports multiple browsers and programming languages, making it the standard tool for web UI test automation. JaCoco is a code coverage tool for Java, Xamarin.UITest is intended for automating UI tests on mobile applications, and Microsoft.CodeAnalysis is an API for source code analysis, none of which are designed for web UI testing.
