JN0-253: Mist AI, Associate (JNCIA-MistAI)Demo

Session policy settings define session timeout and inactivity timeout durations, controlling when a user session expires because of elapsed time or lack of activity.

ROAMINGOF is a Marvis query for viewing a client’s roaming details and graphical roaming history between access points. It is part of Marvis Query Language.

AI-driven RRM in Juniper Mist continuously monitors the RF environment and automatically adjusts radio parameters—such as channel selection and transmit power—across access points to maintain optimal wireless performance and minimize interference. This dynamic, data-driven optimization of radio resource settings is the defining function of Mist's AI-driven RRM, as opposed to static configuration or unrelated features like band steering or SSID naming.

Juniper Mist has a configuration hierarchy in which an organization contains one or more sites. Sites represent physical locations or logical subdivisions within that organization. Mist Configuration Hierarchy

In Asset Visibility mode, the Mist AP's vBLE antenna array functions as a receiver rather than a transmitter, listening for BLE chirps broadcast by asset tags so the tags can be located and tracked on the network. This is distinct from the AP's vBLE transmit mode, which is used to send BLE signals to mobile devices running the Mist location SDK for indoor positioning and wayfinding. Because Asset Visibility mode is about locating tags (not communicating with SDK-enabled phones), the antenna operates in receive mode and captures chirps from BLE tags.

Juniper Mist Asset Visibility enables access points to listen for BLE signals from nearby tagged devices and assets, supporting asset tracking and location. vBLE Engagement instead enables the antenna array to transmit BLE signals for wayfinding.

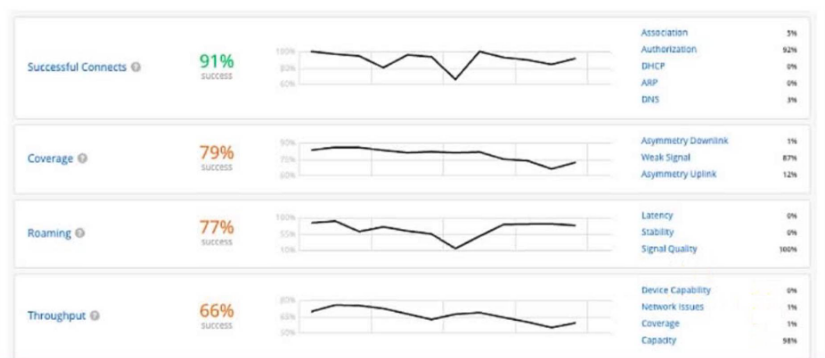

Wireless Assurance SLEs establish measurable benchmarks for network performance and end-user experiences, helping administrators detect and isolate conditions that fall below expected service levels.

Routing Assurance, part of the Juniper Mist cloud platform, is designed to bring AI-driven visibility and troubleshooting (via Marvis) to routing infrastructure. It specifically monitors and manages BGP sessions and routing telemetry on Juniper's MX Series routers, which serve as the core/edge routing platform in this solution—distinct from the EX Series (used in Wired Assurance), SRX Series and Session Smart Routers (used in WAN Assurance), and wireless access points (used in Wireless Assurance).

A site-level switch configuration can assign a configuration template to that particular site. When a site-level setting conflicts with an organization-level template setting, the site-level setting takes precedence because it is the narrower configuration scope.

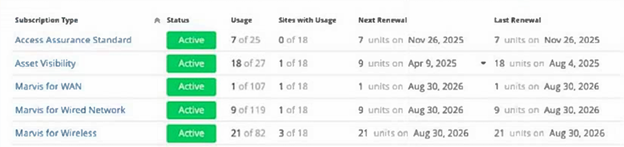

Marvis for Wireless is in use at 3 of 18 entitled sites, so 18 minus 3 equals 15 sites with unused subscriptions.

Radio resource management uses reinforcement learning to dynamically optimize RF settings. The learning agent evaluates actions such as changing channels, bandwidth, transmit power, and band selection according to their expected future rewards for coverage, capacity, and connectivity.

Forwarding Insights provides visibility into how application traffic is forwarded, including the forwarding path taken by the application.

Marvis Actions classifies authentication, DHCP, ARP, and DNS failures under Connectivity. A duplex mismatch is a switching/link-negotiation issue, not a Connectivity action.

Marvis Minis simulates client connectivity and validates DHCP by requesting network configuration and an IP address, and ARP by verifying resolution to the gateway. Its documented validation services include DHCP and ARP, rather than SNMP or NTP.

A WLAN template is composed of a WLANs section, used to configure the SSIDs (name, security type, VLAN, radio band, and related SSID settings) that will be deployed, and a Policies section, used to define access rules and restrictions (WxLAN/template policies) that control how devices and users are treated on the network. While a WLAN template can be applied to an organization, site, site group, or device profile, that scope of application is separate from the template's internal configuration elements, and radio/RF settings are managed through a distinct RF template rather than inside the WLAN template.

A Marvis VNA subscription provides AI-generated responses that summarize relevant Juniper Mist documentation and gives access to Marvis from the ticket-creation form to troubleshoot affected sites, devices, and clients before submitting the ticket.

Juniper Mist regional clouds isolate accounts and organizations by cloud instance. A user account created in a regional cloud is local to that cloud, and organizations in another cloud cannot be accessed using that regional account. Managing organizations across regional clouds requires separate accounts or an explicitly configured global account.

Juniper Mist Asset Visibility provides indoor location tracking and location analytics for assets, including BLE-tagged devices and objects. Juniper Mist Asset Visibility

EAP-TLS is the certificate-based 802.1X method for secure user authentication. Access Assurance can use identity-provider group information to apply identity-based authorization; assigning WxLAN roles based on AD user groups provides role-based segmentation so users are dynamically placed into the appropriate VLAN or policy segment. MAC Authentication Bypass is for non-802.1X devices, while EAP-TTLS/PAP is a credential-based method.

Juniper Mist Access Assurance supports third-party wireless infrastructure through the Mist Auth Proxy on a Mist Edge. The Cisco AP is configured as a standard RADIUS client pointing to the Mist Edge, while the Mist Edge securely proxies authentication to Access Assurance over RadSec. An Access Assurance authentication rule authorizes the user’s access.

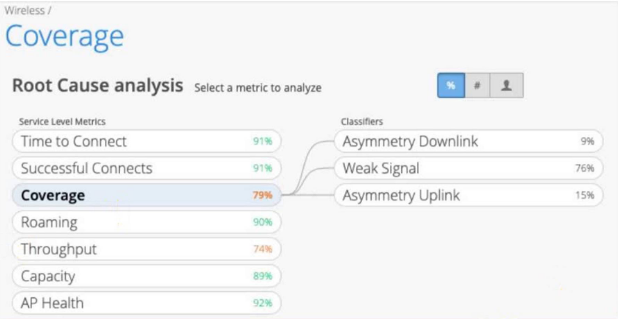

Asymmetry Uplink is a classifier under the Wireless Coverage SLE. It tracks the user minutes during which a client experiences poor coverage caused by a mismatch in transmit power between the access point and the client device. Because APs typically transmit at higher power than client devices, if the AP's power is set too high relative to the client, the AP may not be able to hear the client's weaker uplink signal, even though the client can hear the AP clearly on the downlink. This power asymmetry situation is classified as a coverage problem, since it results in the client experiencing an effective coverage hole for reliable two-way communication despite seemingly adequate downlink signal strength.

Virtual Bluetooth Low Energy (vBLE) enables Mist access points to transmit BLE signals used for mobile-app wayfinding, location services, and proximity-based engagement. Juniper documentation specifically directs administrators to enable vBLE Engagement for these services.

Mist PACE applies data science and machine learning to analyze telemetry and understand the end-user experience.

Mist’s Predictive Analytics and Correlation Engine (PACE) applies data science and machine learning to telemetry to understand and analyze end-user experience. Its results support visibility across wireless, wired, and WAN network domains.
