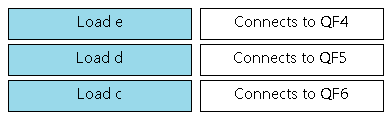

During a data-center capacity expansion, five devices—a, b, c, d, and e—are added. Their power ratings are 3 kW, 4 kW, 6 kW, 7 kW, and 10 kW respectively, and the rated voltage is 220 V. A new power-distribution box is configured for the five devices as shown. Match devices c, d, and e to the wiring terminals in the power-distribution box.

Which of the following are functions of a transformer?
Community Discussion
Which of the following constitute subsystems of the integrated cabling system?
Community Discussion
STS and ATS are used to switch between two inputs.
Community Discussion
The ATS inputs can be connected to two mains, with one active and the other on standby. The two inputs can also be a main supply and a diesel generator.
Community Discussion
