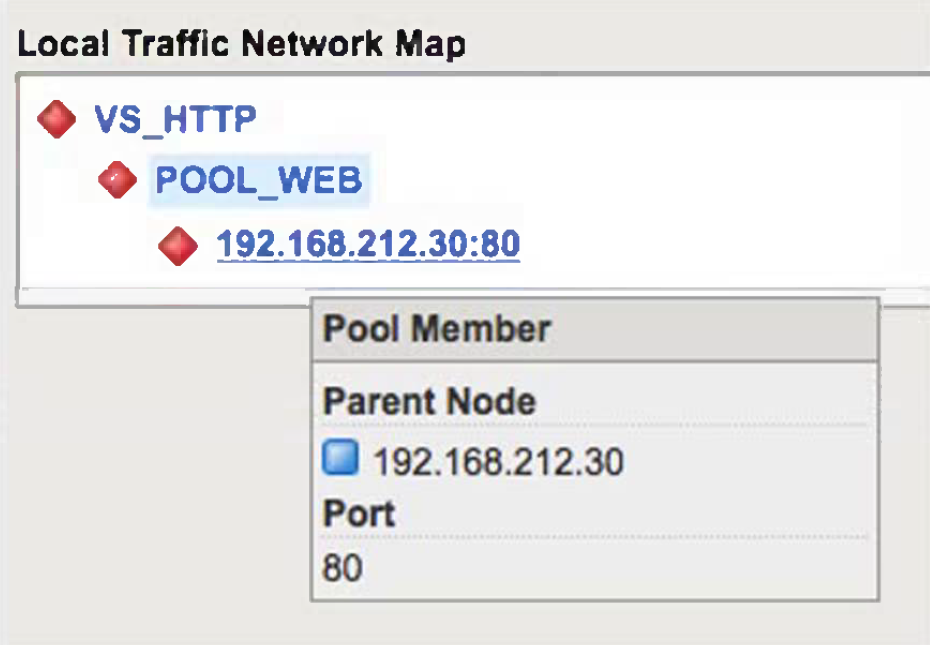

A red diamond denotes an enabled object whose availability is offline because its child pool member is down. A disabled pool member is represented by a black status indicator, not a red diamond. Because the parent node is not offline, the failed health check applies to the pool member’s monitor, leaving no available member to receive connections.
