QuestionQ48

Network

Question Image

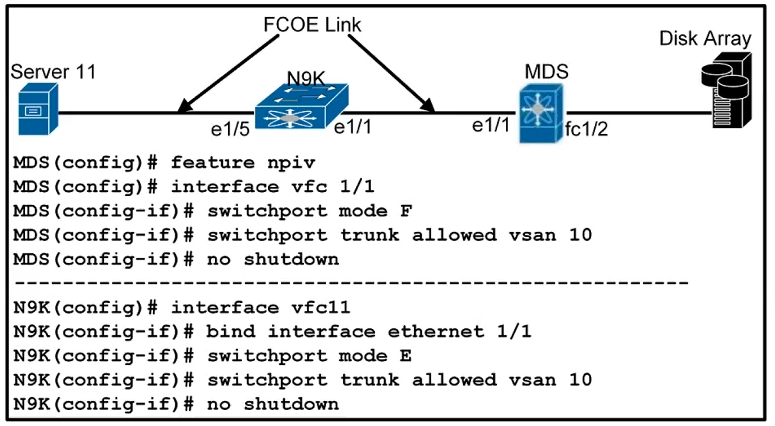

Refer to the exhibit. A network engineer is configuring the FCoE N_Port Virtualization storage-area network. After the initial deployment, Server 11 cannot connect to the disk array. Which action fixes the issue?

Explanation

An FCoE NPV edge switch uses a VNP/NP port for its uplink to the FCF/core switch, which provides an F port. Therefore, the MDS vfc 1/1 F-port configuration is appropriate, but N9K vfc11 must be changed from E mode to NP mode. Cisco’s FCoE NPV configuration procedure specifies switchport mode NP for the NPV edge vFC uplink.
