QuestionQ210

Unicast Routing

Question Image

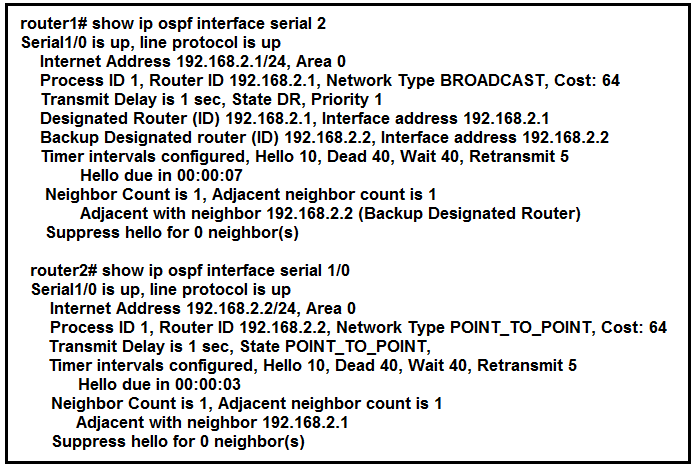

Refer to the exhibit. Router1 and Router2 share routes in the OSPF database, but those routes are absent from their routing tables. After checking the prefix-list configuration on both routers, the engineer verified that all networks are permitted. What action should the engineer take to resolve the issue?

  • A Configure interface Serial1/0 on Router1 as a point-to-point interface
  • B Configure the two routers with different process IDs
  • C Switch the DR and BDR roles between the two routers
  • D Configure the two routers with different hello and dead timer values
Explanation

Router1 advertises the serial segment as a broadcast network with DR/BDR roles, whereas Router2 advertises it as point-to-point. This OSPF network-type mismatch creates inconsistent link-state information and prevents route installation. Configuring Router1 Serial1/0 as point-to-point makes both ends use the same network type, which is appropriate for a two-router serial link. Cisco: Troubleshoot OSPF Route Database Issues

Learn more
