QuestionQ164

Routing Policy and Manipulation

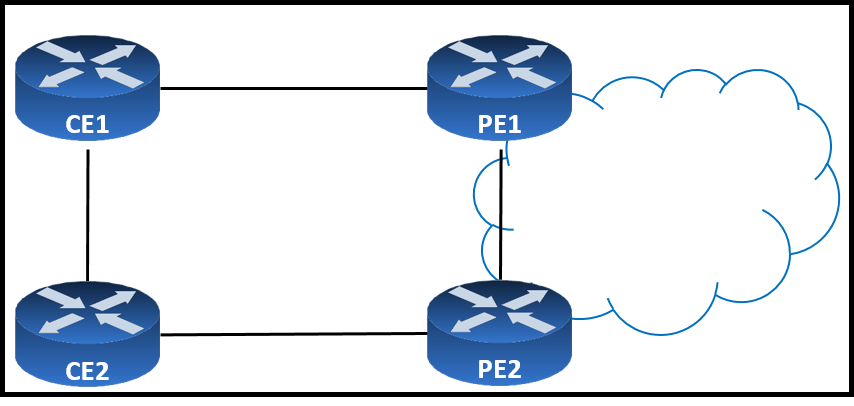

Refer to the exhibit.

Question Image

CE1 and CE2 are iBGP peers in AS 65516. All traffic leaving AS 65516 must traverse the CE1-to-PE1 link. CE1 advertises a higher local preference to CE2, but CE2 traffic still prefers the PE2 link. Which action resolves the issue?

  • A Add the lower local-preference value on PE2 towards CE2.
  • B Configure CE1 to send routes to CE2 with a higher MED.
  • C Configure CE1 to send routes to CE2 with a higher weight.
  • D Add the next-hop self command to the CE1 neighbor statement for CE2.
Explanation

iBGP does not change the next-hop attribute by default. Routes CE1 learned through PE1 are therefore advertised to CE2 with PE1 retained as their next hop. Configuring next-hop self for CE2 makes CE1 the next hop, allowing CE2 to use the route with the higher local preference and send exit traffic through CE1 to PE1.
