300-510 SPRI: Implementing Cisco Service Provider Advanced Routing SolutionsDemo

SIMULATION

Guidelines

This lab item requires tasks to be completed on virtual devices.

• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and complete the tasks.
• Console access is available for every required device by selecting its device icon or using the tabs above the console window.
• All required preconfigurations have already been applied.
• Do not modify the enable password or hostname on any device.
• Save configurations to NVRAM before proceeding to the next item.
• Select Next at the bottom of the screen to submit this lab and continue to the next question.
• After Next is selected, the lab closes and cannot be reopened.

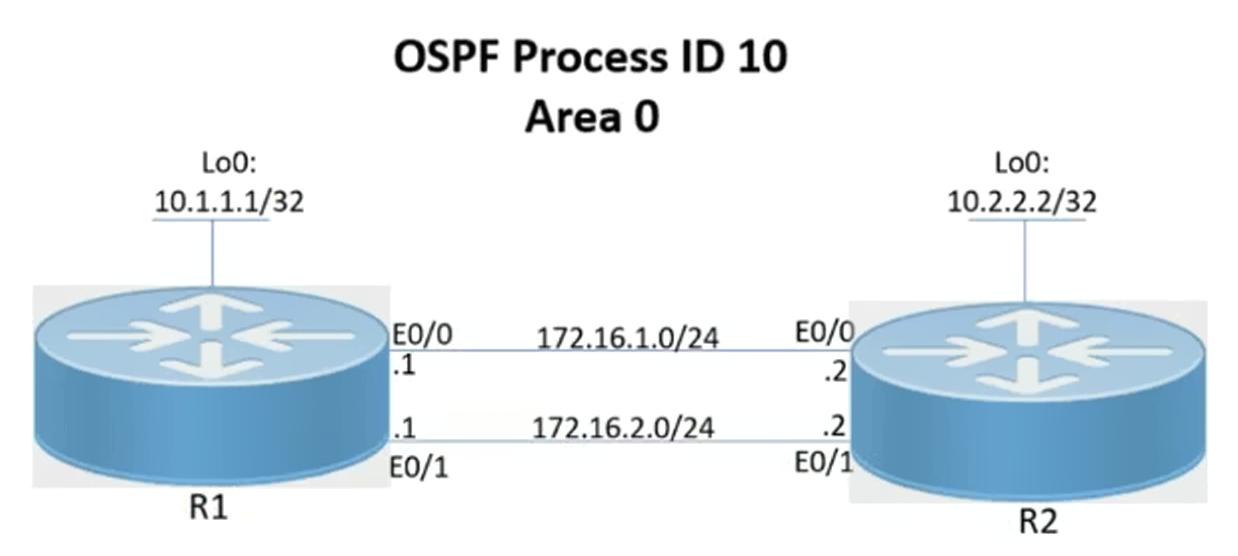

Topology

Tasks

Troubleshoot and configure OSPF based on the topology to meet these goals:

1. R1 and R2 must not perform an OSPF BR/DR election over E0/0, and they must not advertise the OSPF host route for OSPF-connected neighbors.
2. The E0/0 interfaces on R1 and R2 must be preferred over E0/1 for OSPF traffic. Only the numeric value 15 is permitted.
3. Configure an OSPF hello interval of 5 and dead interval of 10 between R1 and R2 on E0/1.
