200-901: Automating Networks Using Cisco PlatformsDemo

Cisco Meraki Dashboard API pagination implements RFC 5988 (Web Linking). Its Link response header provides relations such as next and the URL containing pagination parameters, allowing retrieval of subsequent result pages.

The AXL API requires authentication for access and uses credentials from accounts configured in Cisco Unified Communications Manager. It is an administrative provisioning API; Extension Mobility login and Tomcat-log collection are separate functions. AXL is accessed through HTTPS, rather than supporting both unsecured HTTP and HTTPS.

Cross-site request forgery causes a browser belonging to an already authenticated user to send a request that performs an action the user did not intend, relying on that user’s existing session credentials.

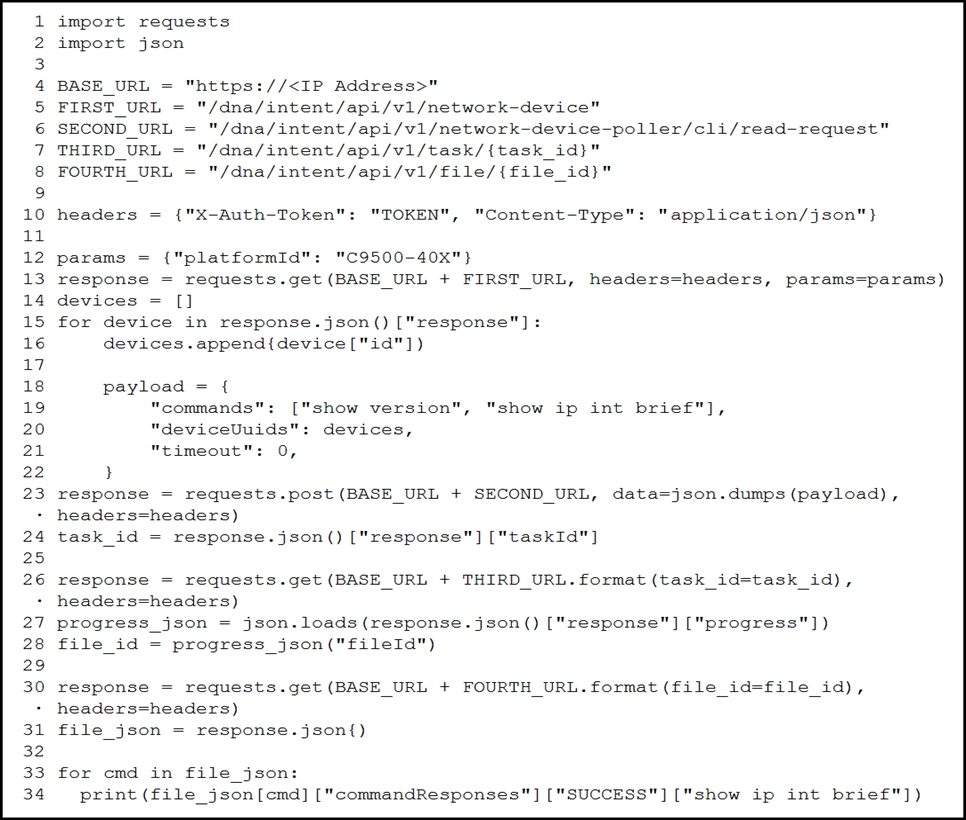

The Cisco Catalyst Center command-runner workflow submits both commands asynchronously, retrieves the result file, and accesses the successful response specifically for show ip int brief. The device query filters the target list by platform ID C9500-40X, so the script outputs that command’s result for those devices.

Cisco NX-OS supports both its proprietary native (original/device) YANG model and OpenConfig YANG models. These models provide structured, model-driven interfaces for device configuration and operational data management.

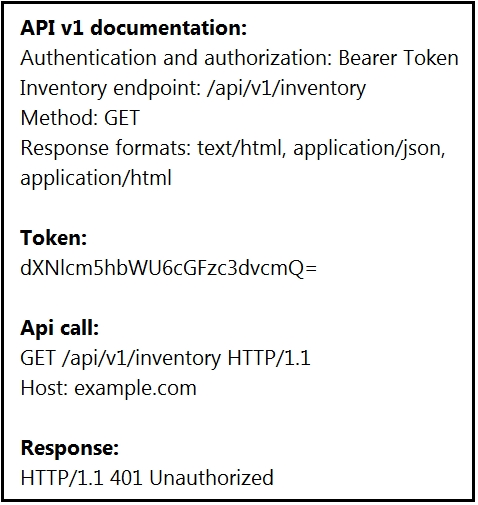

Bearer-token authentication is sent in the standard Authorization request header with the Bearer scheme. The Accept header specifies the desired response media type, such as application/xml. A Content-Type header describes the format of a request body, which is not needed for this GET request.

HTTP 403 Forbidden indicates that the server understood the request but refuses to fulfill it. Valid credentials that lack adequate permission to access a resource should result in 403, so the developer needs the required user access rights. The endpoint is documented as a GET operation; changing the method or client timeout does not address authorization.

The 2xx status-code class denotes successful HTTP requests: the server successfully received, understood, and processed the request.

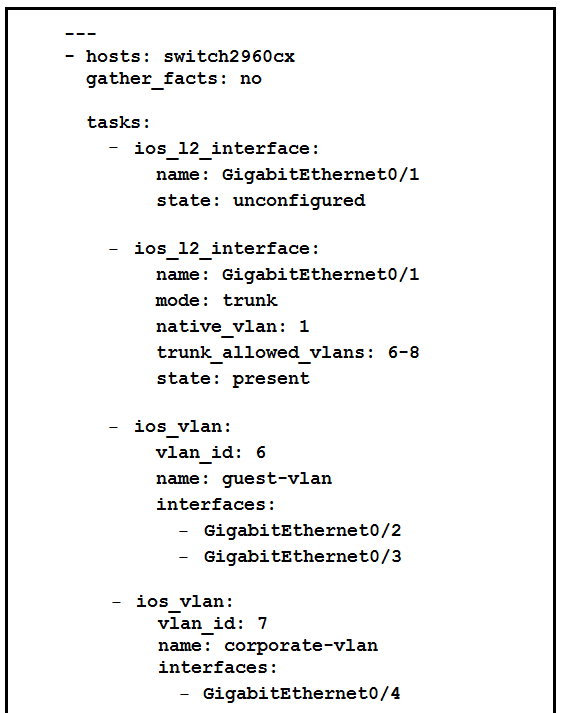

A VLAN logically separates a Layer 2 network into distinct broadcast domains, each of which is typically associated with its own IP address subnet.

A core purpose of code review is to improve code quality by finding bugs and ensuring consistency with the project's style and standards — including consistent naming conventions, which keep the codebase readable and maintainable (option C). Reviews are meant to happen before code is merged into source control, not after (A is wrong), and 'never slowing code to production' (B) contradicts review's quality-gate role. Requiring a specific technical lead's sign-off (D) is a team policy, not a general principle of the review process.

A MAC address is the hardware-level identifier associated with a network interface adapter and is used for communication at the data-link layer.

Code review helps team members apply shared design standards and identify inconsistencies before changes are merged, supporting a consistent software design.

Green-bar patterns are techniques for making a failing test pass with the simplest implementation. “Fake it” returns a fixed value first, while “triangulate” adds examples that force a more general implementation.

The Cisco Meraki operation that returns all configured analytic zones for a camera uses JSON (application/json). Configuring the Content-Type request header as application/json specifies that media type; scheduled execution and saving the retrieved data are performed outside the HTTP request.

COPY . /app copies the contents of the Docker client’s current build context into /app. RUN make /app executes make while building the image, and CMD python /app/app.py supplies the default Python command when a container created from the image starts.

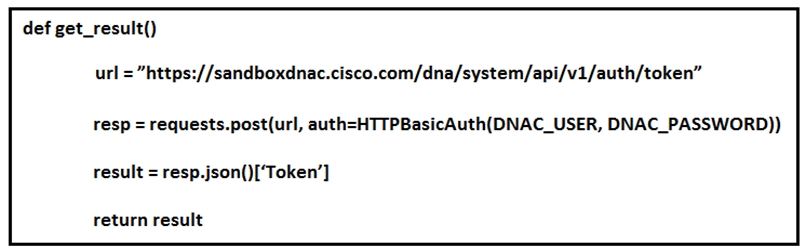

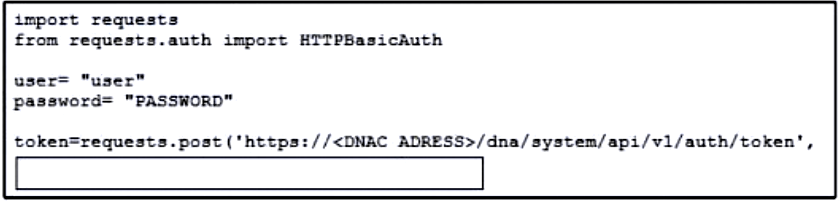

Cisco DNA Center’s token endpoint uses HTTP Basic authentication. With HTTPBasicAuth imported from requests.auth, the POST request must pass auth=HTTPBasicAuth(user,password) as its authentication argument; the final parenthesis closes requests.post.

pyATS provides the test automation framework and testbed model used to connect to network devices, execute reusable tests, and validate network behavior in automation scenarios.

A Cisco Webex firehose (wildcard) webhook can subscribe an application to all events for several commonly used supported resources through one webhook. An all-resource firehose notifies the application about any event for supported resource types such as memberships, messages, and rooms.

Modular organization divides software into smaller, focused components, which makes large and complex systems easier to understand, maintain, test, and change.

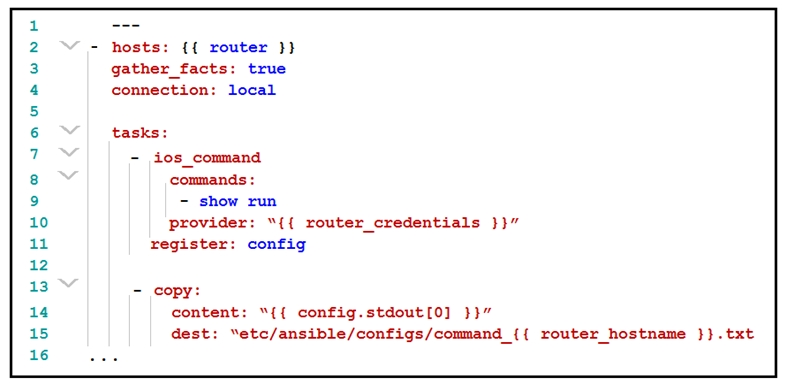

Ansible handlers are tasks triggered by notifications from tasks that report a changed state. They are commonly used to perform follow-up actions, such as restarting a service only after its configuration has changed.

Cisco Advanced Malware Protection (AMP), now called Cisco Secure Endpoint, provides endpoint APIs for vulnerability data, including device-specific vulnerability endpoints. This supports obtaining vulnerable software information from managed user devices.
