QuestionQ717

IP Connectivity

Question Image

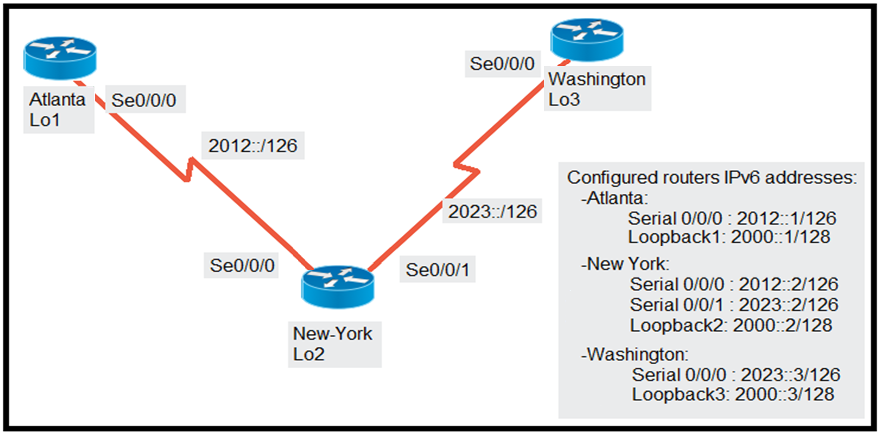

Refer to the exhibit. The New York router is configured with static routes that point to the Atlanta and Washington sites.

Which two tasks must be completed so that the Se0/0/0 interfaces on the Atlanta and Washington routers can reach each other?

Choose two
  • A Configure the ipv6 route 2023::/126 2012::1 command on the Atlanta router.
  • B Configure the ipv6 route 2012::/126 2023::2 command on the Washington router.
  • C Configure the ipv6 route 2012::/126 2023::1 command on the Washington router.
  • D Configure the ipv6 route 2023::/126 2012::2 command on the Atlanta router.
  • E Configure the ipv6 route 2012::/126 s0/0/0 command on the Atlanta router.
Explanation

Each remote serial subnet must be routed through the adjacent New York router interface on that link. Atlanta must send traffic for Washington’s serial subnet 2023::/126 to next-hop 2012::2, which is New York on the Atlanta–New York link. Washington must send traffic for Atlanta’s serial subnet 2012::/126 to next-hop 2023::2, which is New York on the Washington–New York link. In IPv6 static routing, the route must identify the remote destination prefix and a reachable next-hop address on the local link.
