SIMULATION

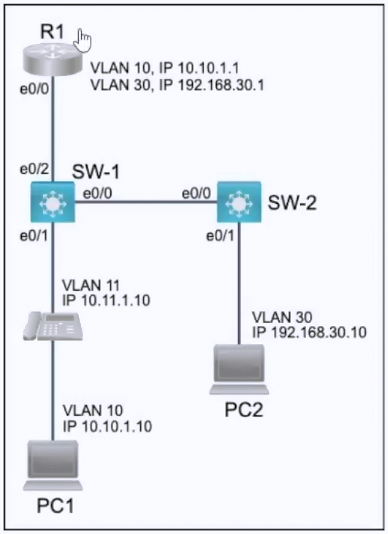

R1 is preconfigured with all required commands. All physical cabling is installed and verified. Configure connectivity to the end devices.

1. Configure SW-1 port E0/1 to carry traffic for the Cisco IP phone and PC.
2. Configure SW-2 E0/1 to carry traffic for PC2.
3. Configure VLAN 10, named “Engineering,” on SW-1.
4. Configure the SW-1-to-SW-2 link to use the vendor-neutral neighbor-discovery protocol.
5. Configure the SW-1-to-R1 link so it does not permit the Cisco neighbor-discovery protocol.
