QuestionQ60

VerifiedDesigning for the runtime plane technology architecture

A gaming company has implemented an API as a Mule application and deployed its implementation to a CloudHub 2.0 private space. The API implementation must connect to a mainframe application running in the customer's on-premises corporate data center and to a Kafka cluster running in an Amazon AWS VPC.

What is the most efficient way to enable the API to securely connect from its private space to the mainframe application and Kafka cluster?

Explanation

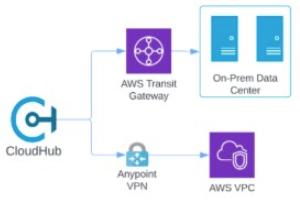

CloudHub 2.0 private spaces can connect to external networks through Anypoint VPN or AWS Transit Gateway attachments. Anypoint VPN securely connects the private space to the on-premises corporate network, while attaching the private space to an AWS Transit Gateway enables routing to the AWS VPC that hosts Kafka. Creating VPN Connections and Transit Gateway Attachments describe these connectivity mechanisms.

Learn more
