NSE7-SSE-AR-26: Fortinet NSE 7 - FortiSASE 26 Architect

By Fortinet · Question Mode

QuestionQ39

VerifiedSD-WAN traffic control and IPsec

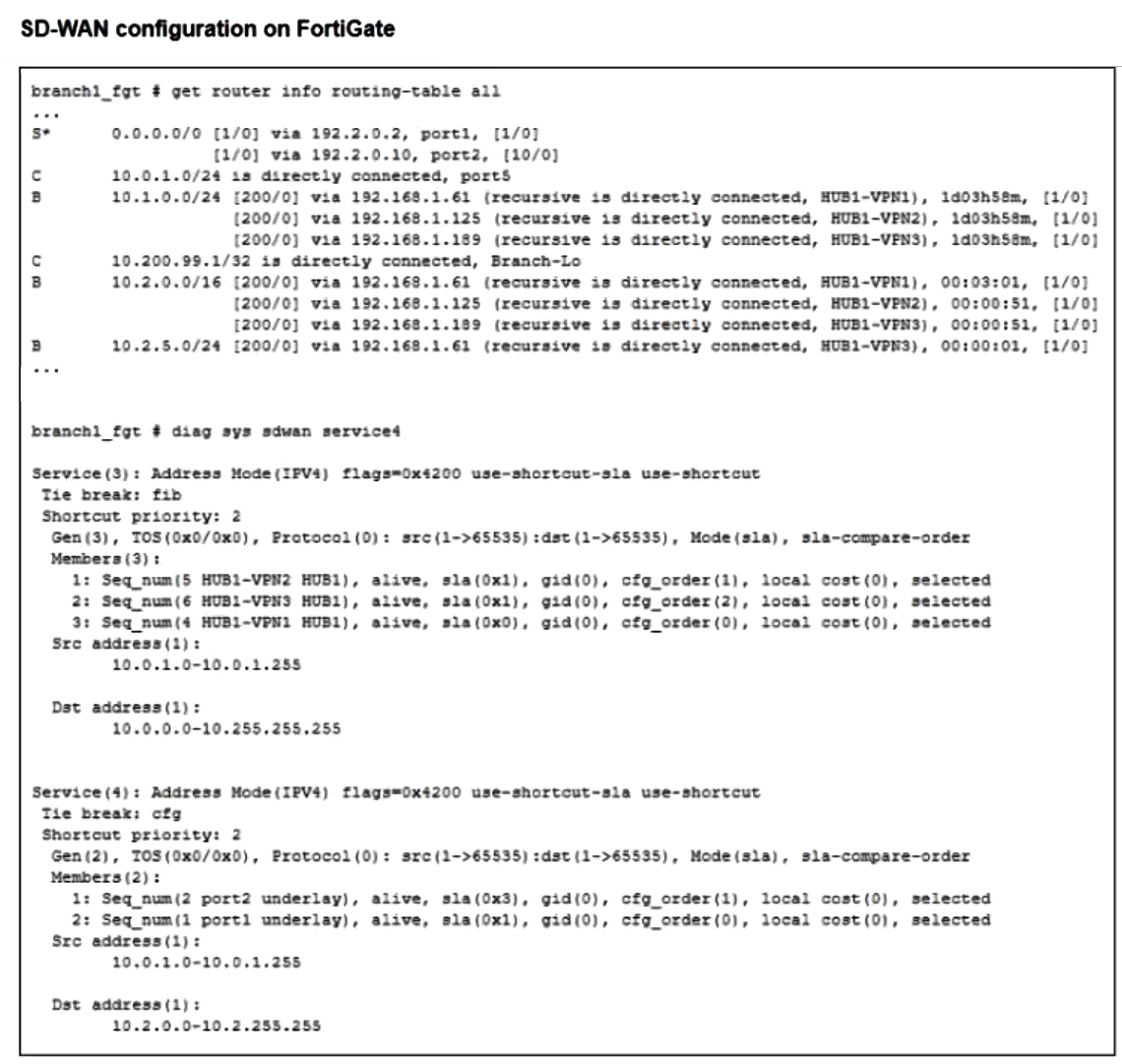

Refer to the exhibit.

Question Image

Which SD-WAN rule and interface does FortiGate use to steer traffic from LAN subnet 10.0.1.0/24 to the corporate server 10.2.5.254?

Explanation

SD-WAN service rule 3 matches the 10.0.1.0/24 source and the destination 10.2.5.254. The more-specific 10.2.5.0/24 routing entry resolves through HUB1-VPN3, so that is the usable egress interface for this traffic. SD-WAN service rules identify matching traffic and select an outgoing interface according to the configured strategy and available route/link conditions.

Learn more

Community Discussion

No comments yet. Be the first to start the discussion!
