QuestionQ30

Network troubleshooting

Application development team users are experiencing problems accessing the database server in the cloud environment. All other users can use SSH to access this server without any issues. To troubleshoot, the network architect reviews the following information:

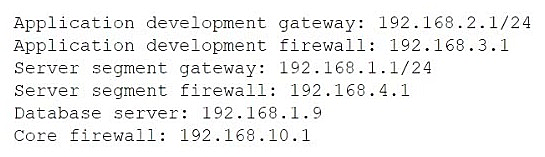

IPAM information:

Question Image

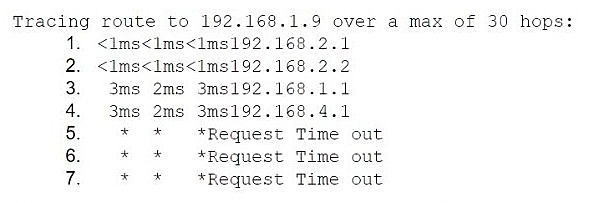

Traceroute output from an application developer's machine assigned IP address 192.168.2.7:

Question Image

Which of the following is the most likely cause of this issue?

Explanation

Traffic from the application development subnet reaches the server segment firewall at 192.168.4.1 but does not proceed to the database server at 192.168.1.9. This indicates that the server segment firewall is dropping or failing to forward that traffic.
