350-601: Implementing and Operating Cisco Data Center Core TechnologiesDemo

By Cisco · Question Mode

QuestionQ46

Network

Question Image

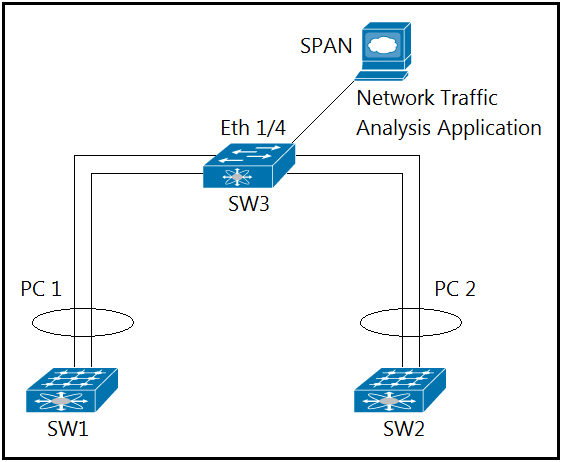

Refer to the exhibit. An engineer needs to monitor ingress traffic from the SW1 and SW2 port-channel interfaces on SW3. Which configuration must be implemented to achieve this goal?

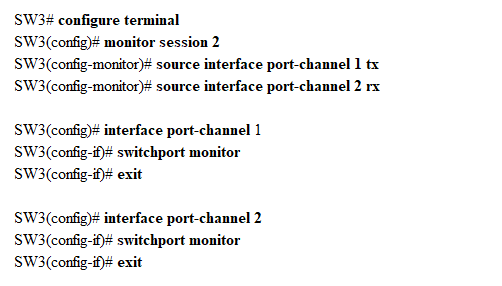

  • A

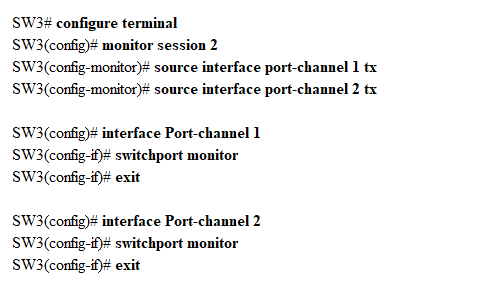

  • B

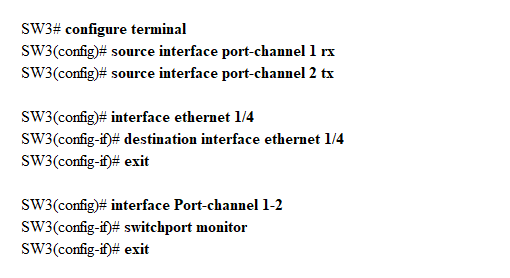

  • C
  • D
Explanation

For a Cisco SPAN session, rx copies ingress traffic from each source interface. Port-channel 1 and port-channel 2 must therefore be configured as rx sources in the same monitor session, while Ethernet 1/4 is configured as the SPAN destination and enabled as a monitor switchport for the traffic-analysis application.
