350-601: Implementing and Operating Cisco Data Center Core TechnologiesDemo

By Cisco · Question Mode

QuestionQ294

Network

Refer to the exhibit shown. An engineer must mirror traffic on a switch. The engineer identifies the server port requiring monitoring on switch1, but the packet sniffer is located on switch2. The engineer must configure the source IP address on switch1. Which command accomplishes this goal?

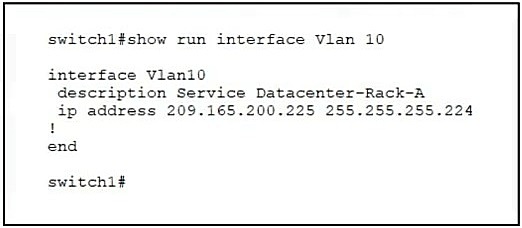

Question Image

  • A source ip 209.165.200.225
  • B monitor session 10 type erspan-source
  • C source interface vlan512
  • D monitor erspan origin ip-address 209.165.200.225
Explanation

ERSPAN carries mirrored traffic across Layer 3 to a remote analyzer. On Cisco NX-OS, monitor erspan origin ip-address 209.165.200.225 configures the IP address used as the ERSPAN traffic origin; the address is assigned to VLAN 10 on switch1.
