300-415: Implementing Cisco Catalyst SD-WAN Solutions

By Cisco · Question Mode

QuestionQ44

Policies

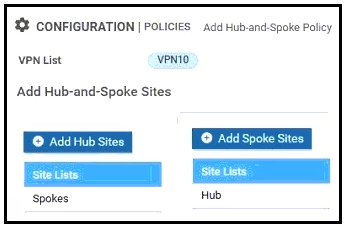

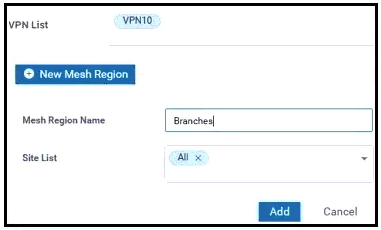

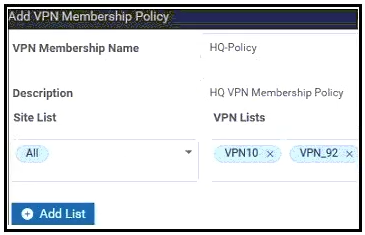

A customer is rolling out a Cisco Catalyst SD-WAN solution for 100 branches, where the branches must reach the hub site using only the MPLS circuit. Which configuration should the networking team deploy?

Explanation

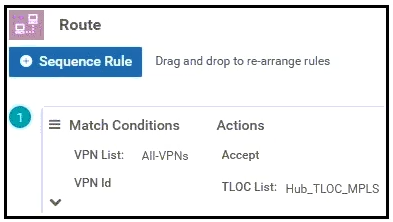

A centralized route/control policy that uses the hub MPLS TLOC list rewrites or selects the destination TLOC for the matching VPN routes, directing branch traffic toward the hub over MPLS. Cisco documents that control policy can change a route’s TLOC to the hub TLOC to implement hub-and-spoke forwarding, and that a TLOC list identifies the TLOCs used to direct matching traffic.

Learn more
