300-415: Implementing Cisco Catalyst SD-WAN Solutions

By Cisco · Question Mode

QuestionQ36

Router Deployment

Question Image

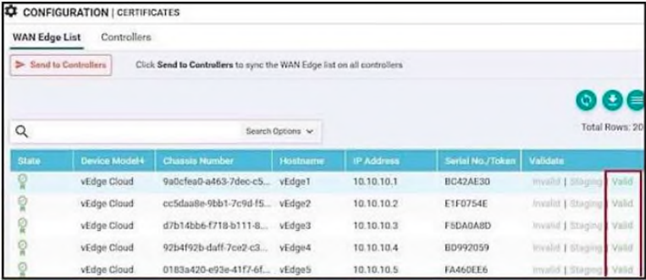

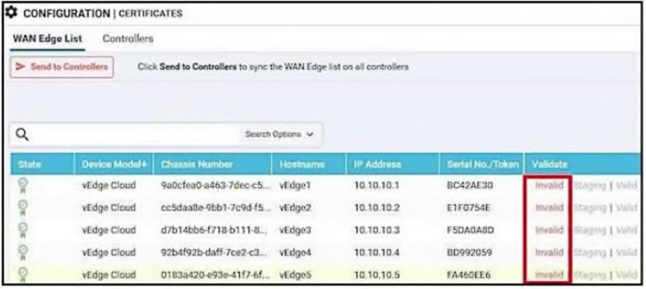

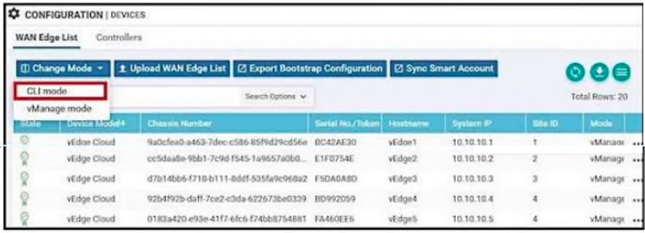

Refer to the exhibit. An organization is testing a Cisco SD-WAN solution and has decided that the control plane must be established first, while the data plane is not established during migration. Which configuration accomplishes this goal?

Explanation

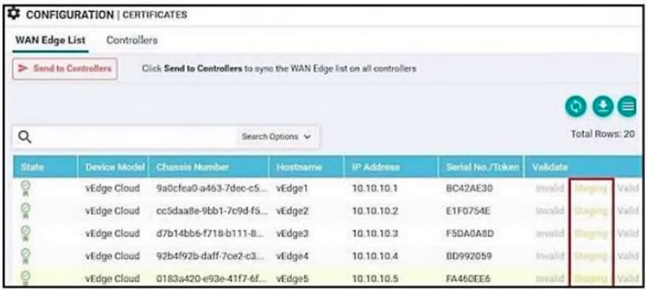

A WAN edge device in the Staging certificate state can establish operational control connections with Cisco SD-WAN Manager and SD-WAN Controller components, but it does not join the production network. Data-plane connections are not established until its state is changed to Valid. Cisco Catalyst SD-WAN Certificate Management Guide — Stage a WAN edge device
